72902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 410999999) Park Brake Assembly Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

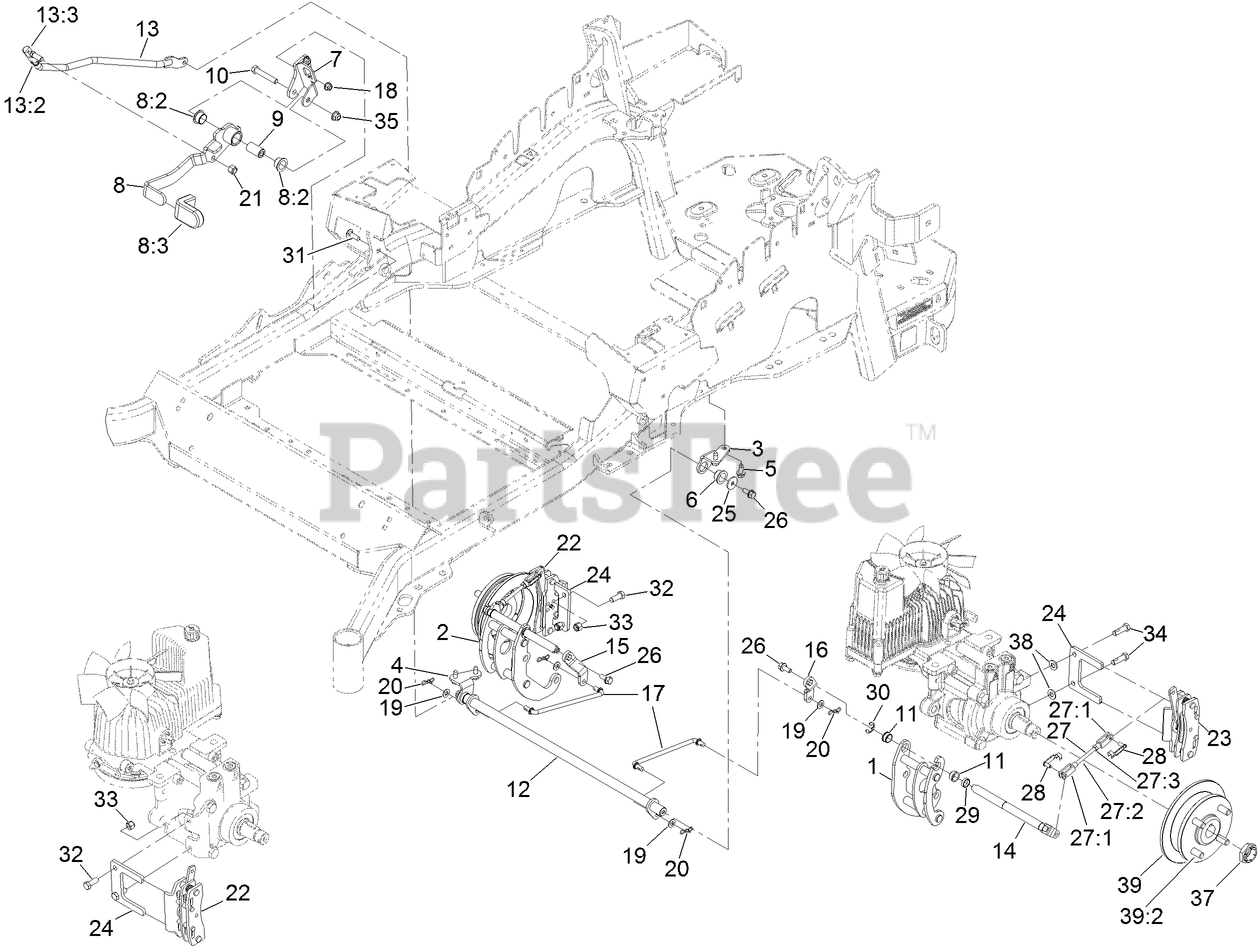

Park Brake Assembly Parts Diagram

  • Title

1

Toro 126-4248

MOUNT-BELLCRANK, LH

$36.99

$

Usually ships in 3-6 days

0

2

Toro 126-4249

MOUNT-BELLCRANK, RH

$36.99

$

In Stock, only 1 left!

0

3

Toro 116-9681

MOUNT-PIVOT, LH

$5.49

$

In Stock, only 1 left!

0

4

Toro 116-9682

MOUNT-PIVOT, RH

$5.49

$

In Stock, only 1 left!

0

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

7

Toro 116-9096-01

BRACKET-MOUNT

$27.99

$

Usually ships in 3-6 days

0

8

Toro 135-7565

BRAKE LEVER ASM

$44.99

$

Usually ships in 3-6 days

0

8:2

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

8:3

Toro 132-4749

GRIP-LEVER

$5.49

$

In Stock, only 1 left!

0

9

Toro 116-9117

HANDLE-PIVOT, BRAKE

$2.99

$

Usually ships in 3-6 days

0

10

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 126-6199

BUSHING

$7.99

$

In Stock, Qty 11

0

12

Toro 135-7800

SHAFT-CROSS

$59.99

$

In Stock, only 2 left!

0

13

Toro 135-7805

ASM, FRONT LINKAGE

$64.99

$

Usually ships in 3-6 days

0

13:2

Toro 94-7572

END-TIE ROD, RH

$34.99

$

In Stock, only 2 left!

0

13:3

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

14

Toro 126-4251

BELLCRANK

$20.99

$

Usually ships in 3-6 days

0

15

Toro 126-3716

ARM-INNER, RH

$6.49

$

Usually ships in 3-6 days

0

16

Toro 126-3715

ARM-INNER, LH

$6.49

$

Usually ships in 3-6 days

0

17

Toro 135-7584

WIREFORM, MID-LINK, LWB
(Superseded to 142-6327)

$31.99

$

In Stock, Qty 5

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 7

0

21

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

22

Toro 135-7440

CALIPER-BRAKE, RH

$90.99

$

In Stock, only 3 left!

0

23

Toro 135-7441

CALIPER-BRAKE, LH

$90.99

$

Usually ships in 3-6 days

0

24

Toro 135-7828

PLATE-MOUNT, BRAKE

$11.99

$

In Stock, only 1 left!

0

25

Toro 115-7109

WASHER-FLAT

$1.49

$

In Stock, Qty 5

0

26

Toro 98-9940

SCREW-HHF

$1.99

$

In Stock, only 3 left!

0

27

Toro 126-7587

REAR LINKAGE ASM

$20.99

$

In Stock, only 2 left!

0

27:1

Toro 126-7588

See Supercession: 126-7587
(Superseded to 126-7587)

$20.99

$

In Stock, only 2 left!

0

27:2

Toro 116-9069

LINKAGE, REAR
(Superseded to 126-7587)

$20.99

$

In Stock, only 2 left!

0

27:3

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

28

Toro 126-6395

PIN-CLEVIS, SPRING

$7.99

$

In Stock, Qty 5

0

29

Toro 126-6200

SPACER

$2.99

$

Usually ships in 3-6 days

0

30

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

31

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

32

Toro 135-7915

SCREW-HH,

$1.49

$

In Stock, only 3 left!

0

33

Toro 112-0236

NUT-LOCK

$5.99

$

Usually ships in 3-6 days

0

34

Toro 135-7890

SCREW-HH, PATCH,

$1.49

$

Usually ships in 3-6 days

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

38

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$117.99

$

In Stock, only 2 left!

0

39:2

Toro 116-1696

STUD-WHEEL

$5.49

$

In Stock, Qty 20+
