7284 (54AT74H-710) - Cub Cadet Compact Tractor Engine And Drive Shaft Parts Diagram

Compact Tractor

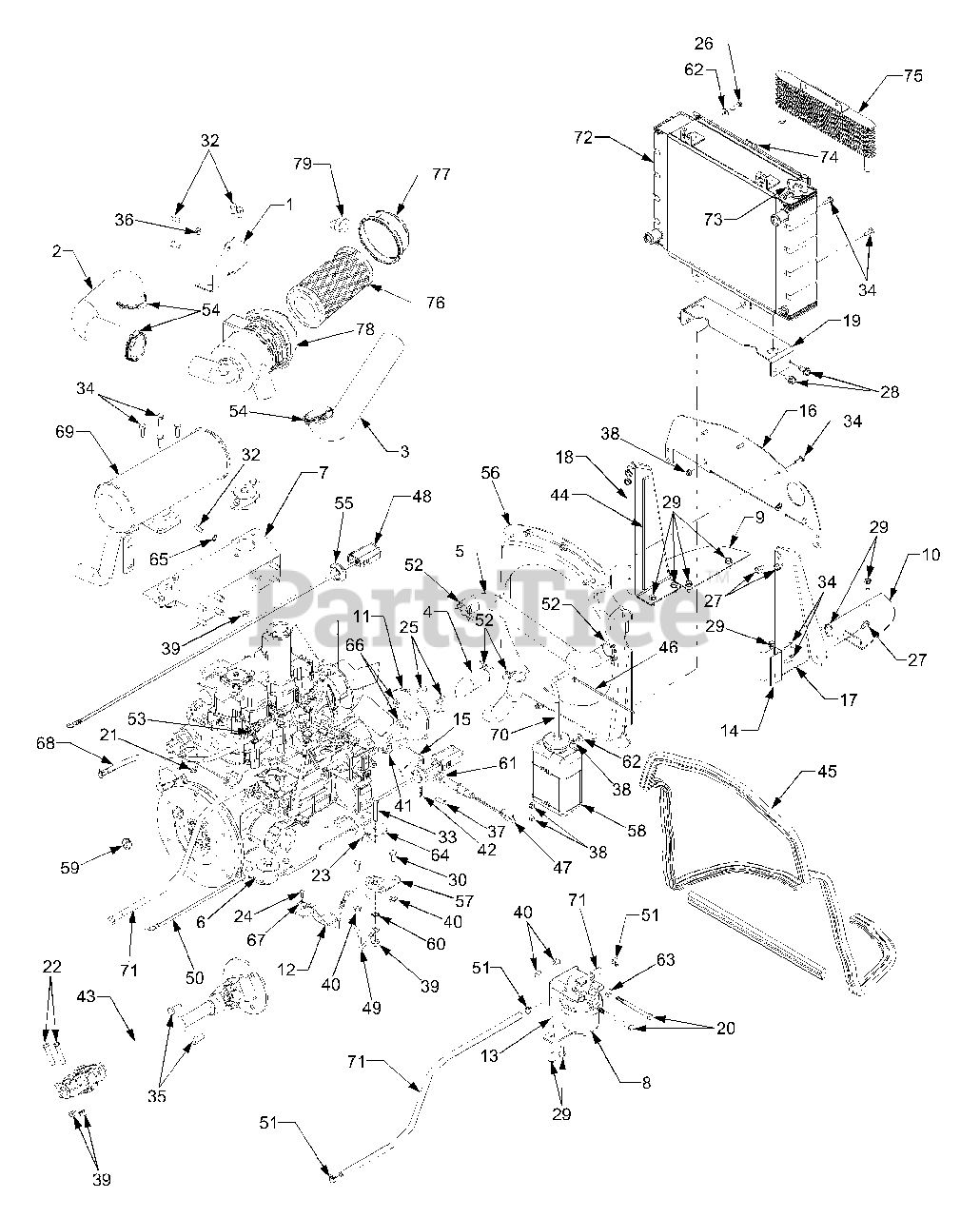

Engine And Drive Shaft Parts Diagram

  • Title

Cub Cadet 629-04084

Harness, Engine Wire

Note: Not Shown

$234.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 703-05444-0637

Bracket, Air Filter Mtg.
(Superseded to 703-05731-0637)

$

$

Not available

2

Cub Cadet 731-04695

Hose, Air Inlet

$

$

Not available

3

Cub Cadet 731-04696

Hose, Air Filter

$

$

Not available

4

Cub Cadet 731-04704

Hose, Radiator to Engine

$

$

Not available

5

Cub Cadet 731-04706

Hose, Engine to Radiator

$

$

Not available

6

Cub Cadet 603-04130-0637

Bracket, Engine RH

$

$

Not available

7

Cub Cadet 603-04164-0637

Bracket, Engine LH
(Superseded to 759-04088)

$

$

Not available

8

Cub Cadet 651-04044

Filter Assembly, Fuel
(Superseded to 951-04044)

$

$

Not available

8

Cub Cadet 759-04027

Filter Element

$77.99

$

In Stock, only 3 left!

0

9

Cub Cadet 703-05140A-0637

Plate, Baffle RH

$

$

Not available

10

Cub Cadet 703-05141A-0637

Plate, Baffle, LH

$

$

Not available

11

Cub Cadet 703-05282A

Plate, Engine RPM

$92.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-05392-0637

Bracket, Cable Mtg.

$

$

Currently unavailable

13

Cub Cadet 703-05454-0637

Bracket, Filter Mtg.

$

$

Not available

14

Cub Cadet 703-05361-0637

Bracket, Over Flow Bottle

$

$

Not available

15

Cub Cadet 703-05511-0637

Bracket, Sensor Mtg.

$

$

Not available

16

Cub Cadet 703-3483-0637

Plate, Radiator Baffle

$

$

Currently unavailable

16

Cub Cadet 777S30631

Graphic, Fan Warning

$

$

Not available

16

Cub Cadet 777S30633

Graphic, Warning

$

$

Not available

17

Cub Cadet 703-3484-0637

Bracket, Radiator Mtg. RH

$

$

Currently unavailable

17

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

18

Cub Cadet 703-3485-0637

Bracket, Radiator Mtg. LH

$

$

Currently unavailable

18

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

19

Cub Cadet 703-3741-0637

Bracket, Radiator Mtg.

$

$

Currently unavailable

20

Cub Cadet 710-0190

Screw, Hex Cap, 5/16-18 x 4.0 GR5

$7.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0224

Screw, Hex Wash Hd Tapp 10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

22

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-04177

Screw, Hex Cap, M12-1.25 x 25 GR8.8
(Superseded to 710-04177A)

$8.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-0425

Screw, Truss Mach. #10-24 x .625

$4.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-04315

Screw, Countersink Torx Hd M8-1.25 x 20

$10.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-0597

Screw, Hex Cap 1/4-20 x 1.0 GR5

$3.99

$

In Stock, Qty 14

0

27

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 12

0

28

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3015

Screw, Hex Cap 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3138

Screw, Hex Cap, M8-1.25 x 16

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-3144

Screw, Hex Cap

$4.49

$

In Stock, Qty 7

0

34

Cub Cadet 710-3206A

Screw, Hex Cap, M8-1.25 x 25 GR8.8

$3.99

$

In Stock, Qty 13

0

35

Cub Cadet 710-3208

Screw, Hex Cap, M10-1.5 x 25 GR5

$3.99

$

In Stock, only 4 left!

0

36

Cub Cadet 710-3209

Screw, Hex Cap, M6-1.0 x 10 GR8.8

$8.49

$

In Stock, Qty 13

0

37

Cub Cadet 711-0653

Pin, Clevis, .312 x 1.0

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 17

0

39

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-3056

Nut, Jam, 5/8-18 GR5

$4.99

$

In Stock, only 3 left!

0

42

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 717-04128

Shaft, Drive
(Superseded to 917-04162)

$799.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 759-04059

Flex Drive Shaft Coupler Kit

Note: Not Shown

$299.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 722-3022

Tape, Foam, .625 wide 42in.
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 723-3061

Seal, Heat Baffle 104in

$2.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, only 2 left!

0

47

Cub Cadet 725-04212

Sensor, RPM

$233.99

$

In Stock, only 1 left!

0

48

Cub Cadet 725-3281

Wire, Battery Pos.

$38.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 725-3283

Wire, Ground

$22.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 725-3287

Wire, Battery Neg.

$

$

Not available

51

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

52

Cub Cadet 726-04026

Clamp, Hose

$

$

Not available

53

Cub Cadet 726-04041

Clamp, Hose

$6.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 726-0476

Clamp, Adjustable Hose

$12.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 731-04018

Grommet, Hose Guard

$

$

Not available

56

Cub Cadet 731-04617

Shroud, Fan

$

$

Not available

57

Cub Cadet 731-04667

Mount, Compression Engine

$112.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 731-04731

Container, Over Flow

$143.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 735-0226

Grommet, Rubber

$10.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0148

Washer, External Lock, 3/8

$3.99

$

In Stock, only 3 left!

0

61

Cub Cadet 736-0158

Washer, Lock, 5/8

$4.49

$

In Stock, only 1 left!

0

62

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

63

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 736-04018

Washer, Flat, .38 x 2.0 x .12

$7.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 736-0607

Washer, External Lock, 5/16

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

67

Cub Cadet BS-691024

Clamp, Casing

$3.99

$

In Stock, Qty 7

0

68

Cub Cadet 751-0535-68

Hose, Fuel Line 63in.
(Superseded to 751-10349-72)

$60.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 751-10048

Muffler, Engine
(Superseded to 751-10048A)

$

$

Not available

70

Cub Cadet 751-10151

Hose, Over Flow

$

$

Not available

71

Cub Cadet 751-3130

Fuel Line, 5/16 ID 83in.

$32.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 751-3165

Radiator

$

$

Not available

72

Cub Cadet 722-0268

Grommet, Rubber Mtg.

$

$

Not available

73

Cub Cadet 751-3192

Cap, Radiator, 13psi
(Superseded to 759-04129)

$50.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 751-3193

Screen, Debris

$

$

Not available

75

Cub Cadet 718-3132

Cooler, Oil
(Superseded to 918-3132)

$

$

Not available

76

Cub Cadet 751-3194

Element, Air Cleaner

$52.99

$

In Stock, only 2 left!

0

77

Cub Cadet 751-3195

Cap, Air Cleaner

$53.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 751-3196

Canister, Air Cleaner

$

$

Not available

79

Cub Cadet 751-3197

Nozzle, Air Cleaner

$37.99

$

In Stock, only 4 left!

0
