7284 (54AD74H-710) - Cub Cadet Compact Tractor Transmission Connections Parts Diagram

Compact Tractor

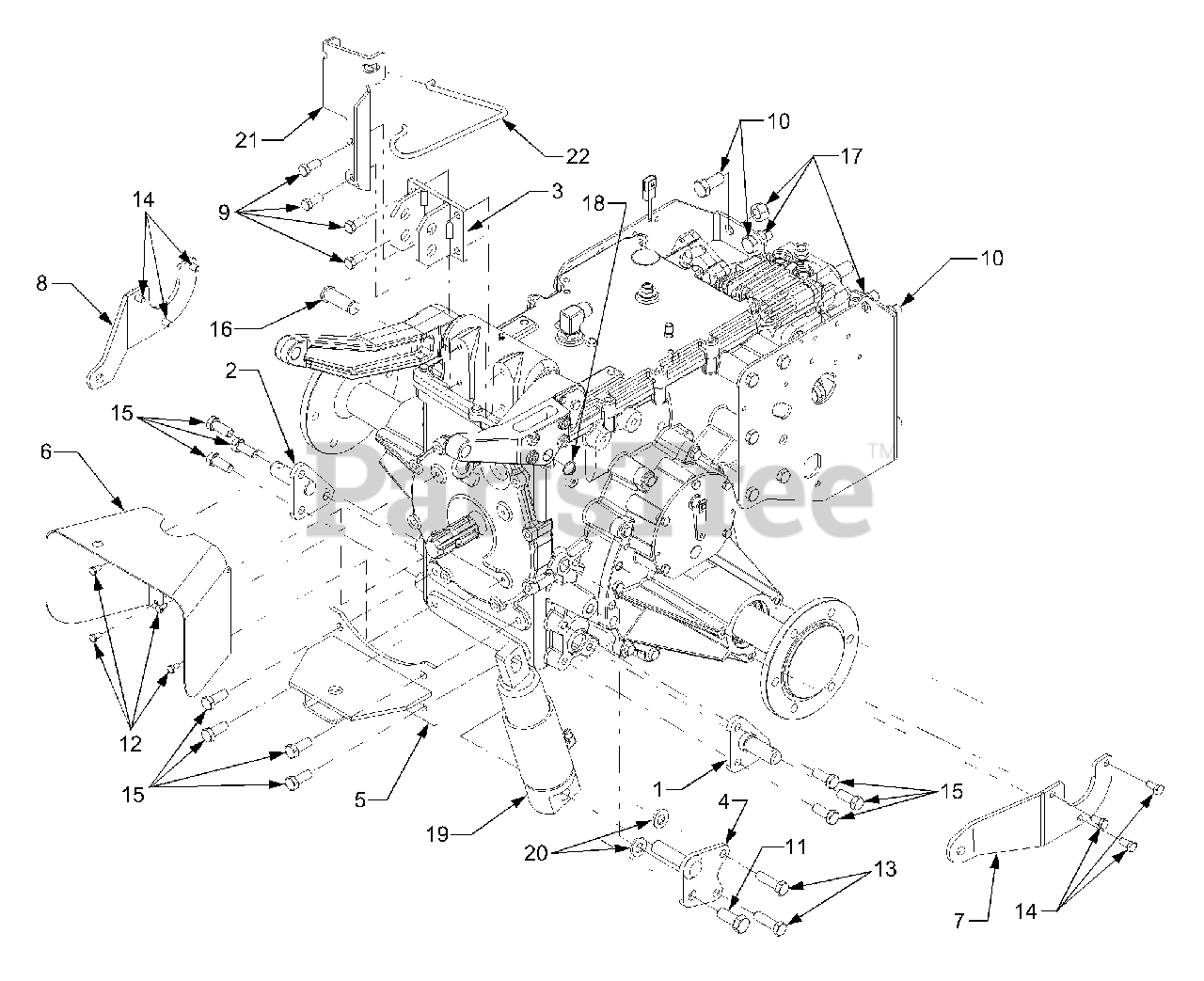

Transmission Connections Parts Diagram

  • Title

1

Cub Cadet 603-0748-0637

Bracket, Lower Hitch RH

$

$

Not available

2

Cub Cadet 603-0751-0637

Bracket, Lower Hitch LH

$67.99

$

In Stock, only 1 left!

0

3

Cub Cadet 603-0753-0637

Bracket, Top Link

$

$

Not available

4

Cub Cadet 603-0754A-0637

Bracket, Cylinder

$52.99

$

In Stock, only 1 left!

0

5

Cub Cadet 603-0758-0637

Bracket, Drawbar

$110.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703-3542A

Shield, PTO

$73.99

$

In Stock, only 1 left!

0

Cub Cadet 777S30634

Graphic, Warning

$

$

Not available

7

Cub Cadet 703-3548A

Bracket, Chain LH

$

$

Not available

8

Cub Cadet 703-3549A

Bracket, Chain RH

$

$

Not available

9

Cub Cadet 710-0505

Screw, Hex Cap 7/16-14 x 1/0 GR5

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0964A

Screw, Hex Cap 5/8-18 x 1.31 GR5

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-1515

Screw, Hex Cap 5/8-11 x 1.5 GR5

$

$

Not available

12

Cub Cadet 710-3039

Screw, Hex Cap 5/16-18 x .5 GR5

$

$

Not available

13

Cub Cadet 710-3067

Screw, Hex Cap 1/2-13 x 1.75 GR5

$6.99

$

In Stock, only 2 left!

0

14

Cub Cadet 710-3119

Screw, Hex Cap 3/8-16 x .75 GR5

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-3131

Screw, Hex Cap 1/2-13 x 1.0 GR5

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet 711-1503

Pin, Lift, .75 x 2.125

$

$

Not available

17

Cub Cadet 712-3063

Nut, Hex Lock, 5/8-18

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 716-0101

Ring, Snap, 75 Dia

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 717-3504

Cylinder, Lift
(Superseded to 917-3504)

$

$

Not available

20

Cub Cadet 736-0192

Washer, Flat, .531 x .93 x .09

$4.49

$

In Stock, Qty 16

0

21

Cub Cadet 703-05133

Bracket, Hitch Clip

$29.99

$

In Stock, only 1 left!

0

22

Cub Cadet 747-04109

Rod, Top Link Retainer

$12.99

$

In Stock, only 1 left!

0
