7284 (54AD74H-710) - Cub Cadet Compact Tractor Dash Panel And Steering Wheel Parts Diagram

Compact Tractor

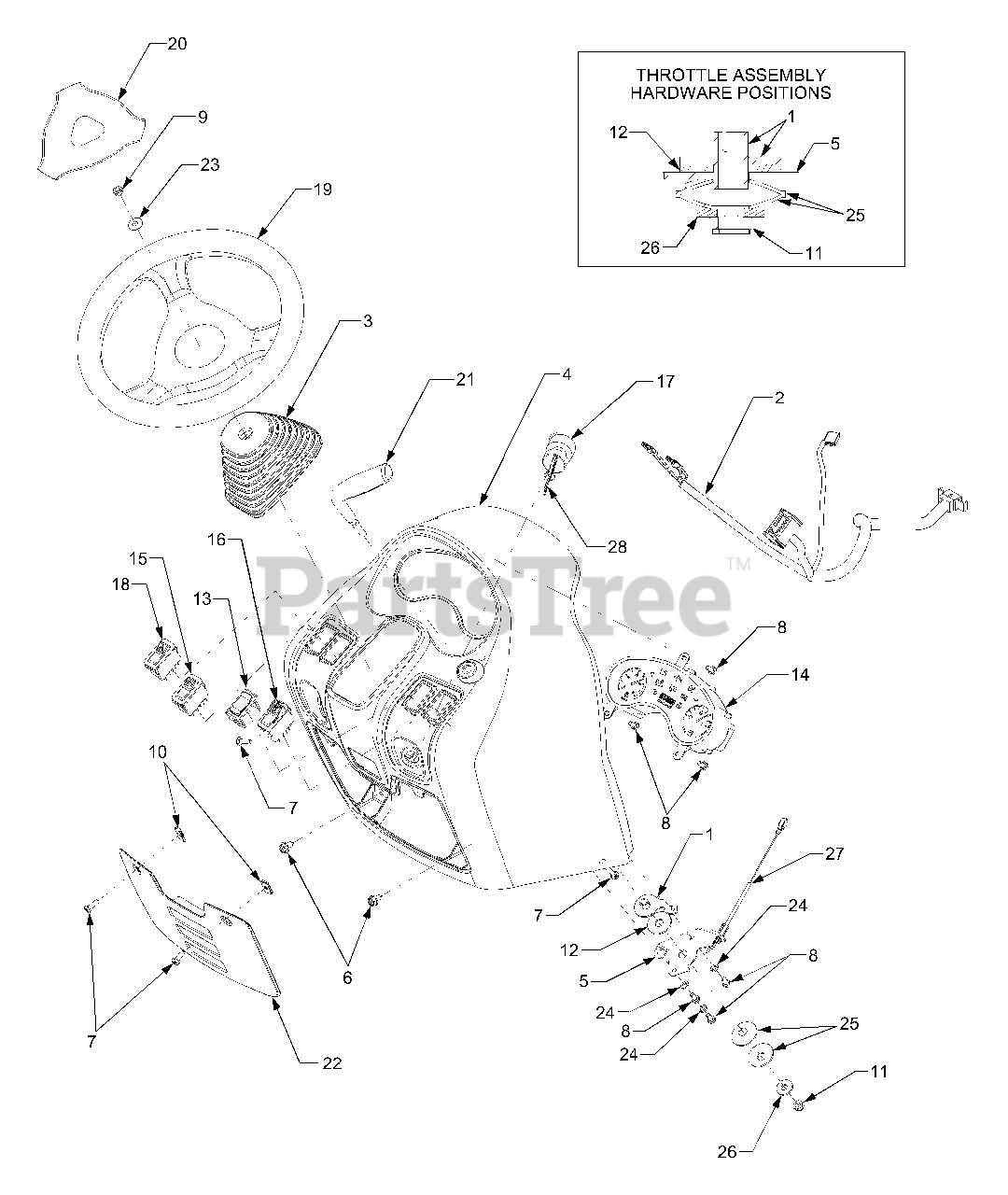

Dash Panel And Steering Wheel Parts Diagram

  • Title

1

Cub Cadet 603-0711A

Tab Assembly, Throttle
(Superseded to 603-04305)

Variations

Cub Cadet 603-0711A-0637

USE 603-04305 TAB ASM-THROTTL - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 629-04058

Wire Harness, Dash
(Superseded to 929-04058)

$

$

Not available

3

Cub Cadet 631-0076

Boot, Steering Shaft

$

$

Not available

4

Cub Cadet 631-04007B

Dash
(Superseded to 931-04007B)

$

$

Not available

5

Cub Cadet 703-05132

Plate, Throttle Mtg.
(Superseded to 703-05132A)

$34.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0924

Screw, Pan Hd., 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 712-0237

Nut, Hex Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

10

Cub Cadet 712-0292

Nut, Speed, 1/4-20

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet 712-0116

Nut, Hex Insert Jam Lock, 3/8-24

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 723-3013

Washer, Friction, .515 x 1.5 x .12
(Superseded to 923-3013)

$

$

Not available

13

Cub Cadet 725-2017

Plug

$

$

Not available

14

Cub Cadet 725-3288

Panel, Instrument
(Superseded to 925-3288)

$

$

Not available

15

Cub Cadet 725-3274

Switch, Headlight

$68.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 725-04076

Switch, PTO
(Superseded to 925-04076)

$111.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-3277

Switch, Ignition
(Superseded to 925-3277)

$103.99

$

In Stock, only 1 left!

0

18

Cub Cadet 725-3279

Switch, Hazard
(Superseded to 725-3279B)

$65.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-3209

Steering Wheel, Soft Grip

$

$

Not available

20

Cub Cadet 731-3210

Cover, Steering Wheel
(Superseded to 731-06459)

$21.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-3298

Handle, Throttle

$54.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-3344

Panel, Dash Insert

$

$

Not available

23

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

25

Cub Cadet 736-0112

Washer, Belleville, .531 x 1.62 x .045

$9.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-3052

Washer, Flat, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 746-04126

Cable, Throttle

$33.99

$

In Stock, only 1 left!

0

28

Cub Cadet 759-3950

Key Set, Ingition
(Superseded to 959-3950)

$

$

Not available

Cub Cadet 725-04218

Glow Timer Relay
(Superseded to 925-04218)

Note: (Not Shown)

$

$

Not available
