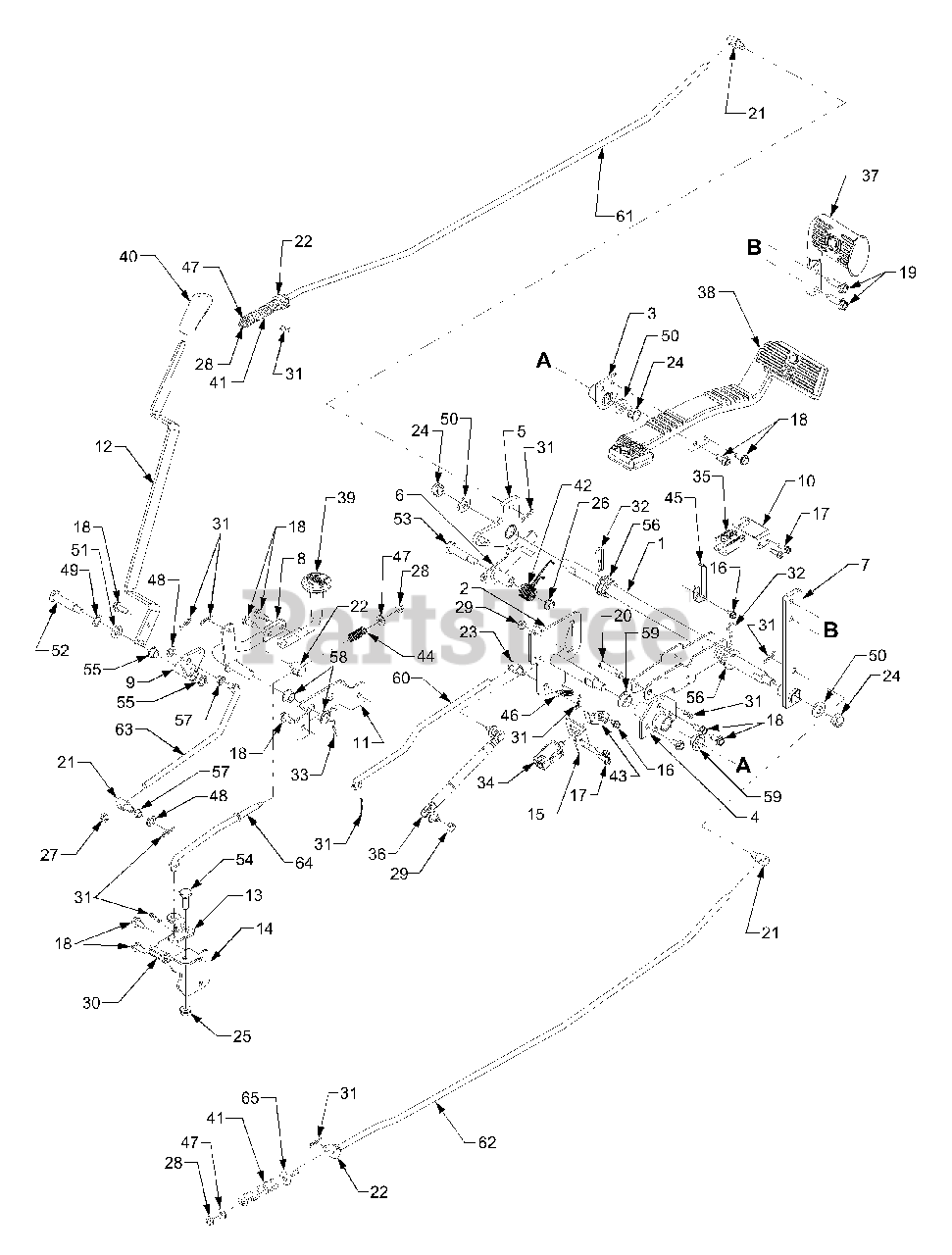

7284 (54AD74H-710) - Cub Cadet Compact Tractor Controls Parts Diagram

Compact Tractor

Controls Parts Diagram

  • Title

1

Cub Cadet 603-0671

Shaft Assembly, Brake

$

$

Not available

2

Cub Cadet 603-0672

Shaft Assembly, Forward
(Superseded to 603-0672A)

$

$

Not available

3

Cub Cadet 603-0673A

Link Assembly, Pedal

$

$

Not available

4

Cub Cadet 603-0674A

Plate, Bearing

$

$

Not available

5

Cub Cadet 603-0678

Link Assembly, Brake LH

$

$

Not available

6

Cub Cadet 603-0679A

Link Assembly, Parking Brake

$

$

Not available

7

Cub Cadet 603-0680

Link Assembly, Brake RH

$

$

Not available

8

Cub Cadet 603-0749

Shaft Assembly, Differential

$

$

Not available

9

Cub Cadet 603-0770

Link, PTO Select

$

$

Not available

10

Cub Cadet 703-05183

Bracket, Brake Switch
(Superseded to 703-05183-0637)

Variations

Cub Cadet 703-05183-0637

BRACKET-SWITCH - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

11

Cub Cadet 703-3541

Bracket, Differential Pivot

$42.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-3571A

Handle, PTO

Variations

Cub Cadet 703-3571A-0637

PTO HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 703-3575

Link, Differential Pivot

$

$

Not available

14

Cub Cadet 703-3582

Bracket, Diff. Actuator Mtg.

$

$

Not available

15

Cub Cadet 703-4099

Bracket, Reverse Switch
(Superseded to 703-4099-0637)

Variations

Cub Cadet 703-4099-0637

BRACKET-REV SWITCH - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0654A

Screw, Hex Wash Hd Tapp 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

20

Cub Cadet 711-0415

Pin, Clevis, 3/8 x 1.75

$4.99

$

In Stock, Qty 18

0

21

Cub Cadet 711-0723A

Ferrule, 3/8-24 x .375 Dia. Hdn
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-1362

Ferrule, Brake

$

$

Not available

23

Cub Cadet 711-3397

Ferrule, 3/8-24 x .37

$

$

Not available

24

Cub Cadet 712-0239

Nut, Hex Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0379

Nut, Hex Flange Lock, 3/8-24

$4.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

29

Cub Cadet 712-3077

Nut, Hex, M8 x 1.25 GR8.8

$

$

Not available

30

Cub Cadet 713-3000

Link, Chain
(Superseded to 913-3000)

$

$

Not available

31

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

33

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 725-3164A

Switch, Plunger
(Superseded to 925-3164A)

$40.99

$

In Stock, only 2 left!

0

35

Cub Cadet 725-04064

Switch, 3-Pole Plunger - Brake
(Superseded to 925-04064)

$42.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 727-04033

Cylinder, Damper
(Superseded to 927-04033)

$156.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-3296

Pedal, Brake

$

$

Not available

38

Cub Cadet 731-3299A

Pedal, Forward/Reverse

$

$

Not available

39

Cub Cadet 731-3320

Pedal, Differential

$

$

Not available

40

Cub Cadet 731-3321

Grip, Handle

$21.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 732-0324

Spring, Compression

$12.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 732-0756A

Spring, Torsion
(Superseded to 932-0756A)

$14.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 732-0859

Spring, Rev/No Cut
(Superseded to 732-0859A)

$11.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 732-3065

Spring, Compression

$3.99

$

In Stock, only 1 left!

0

45

Cub Cadet 732-3117

Spring, Switch Actuator

$7.99

$

In Stock, Qty 20+

0

46

Cub Cadet 732-3118

Spring, Extension

$10.99

$

In Stock, only 1 left!

0

47

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 736-0185

Washer, Flat, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0232

Washer, Wave, .53 x .78 x .013

$4.99

$

In Stock, Qty 12

0

50

Cub Cadet 736-3019

Washer, Flat, .53 x .1.06 x .134

$5.99

$

In Stock, Qty 11

0

51

Cub Cadet 736-3069

Washer, Flat, .53 x .875 x .15

$3.49

$

In Stock, only 1 left!

0

52

Cub Cadet 738-0509

Screw, Shoulder, .50 x 1.825

$

$

Not available

53

Cub Cadet 738-0533

Screw, Shoulder, .498 x 1.635

$7.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 738-0689

Screw, Shoulder 1/2 x .180: 3/8-24
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0

55

Cub Cadet 741-0491

Bearing, Nylon. .50 ID x .341

$5.49

$

In Stock, only 3 left!

0

56

Cub Cadet 741-0598

Bearing, Hex Flange, .752 ID
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

57

Cub Cadet 741-3073

Bearing, Flange, .375 x .58 x .25
(Superseded to 941-3073)

$5.49

$

In Stock, Qty 20+

0

58

Cub Cadet 741-3074

Bearing, Flange .626 x .938 x .344

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 741-3084

Bearing, Flange .751 x 1.125 x .375

$5.49

$

In Stock, only 2 left!

0

60

Cub Cadet 747-3396

Rod, Hydro Control

$

$

Not available

61

Cub Cadet 747-3399

Rod, Brake, LH
(Superseded to 747-3399A)

$

$

Not available

62

Cub Cadet 747-3400

Rod, Brake, RH

$

$

Not available

63

Cub Cadet 747-3414

Rod, PTO Control

$38.99

$

In Stock, only 1 left!

0

64

Cub Cadet 747-3428

Rod, Diff. Lock Control

$39.99

$

In Stock, only 1 left!

0

65

Cub Cadet 736-3072

Washer, Flat, .38 x .93 x .11 HT

$4.49

$

In Stock, Qty 20+
