728 TDE (31AH74TT756) - Cub Cadet 28" Snow Thrower (2012) Chute 4-Way Extended Parts Diagram

28" Snow Thrower

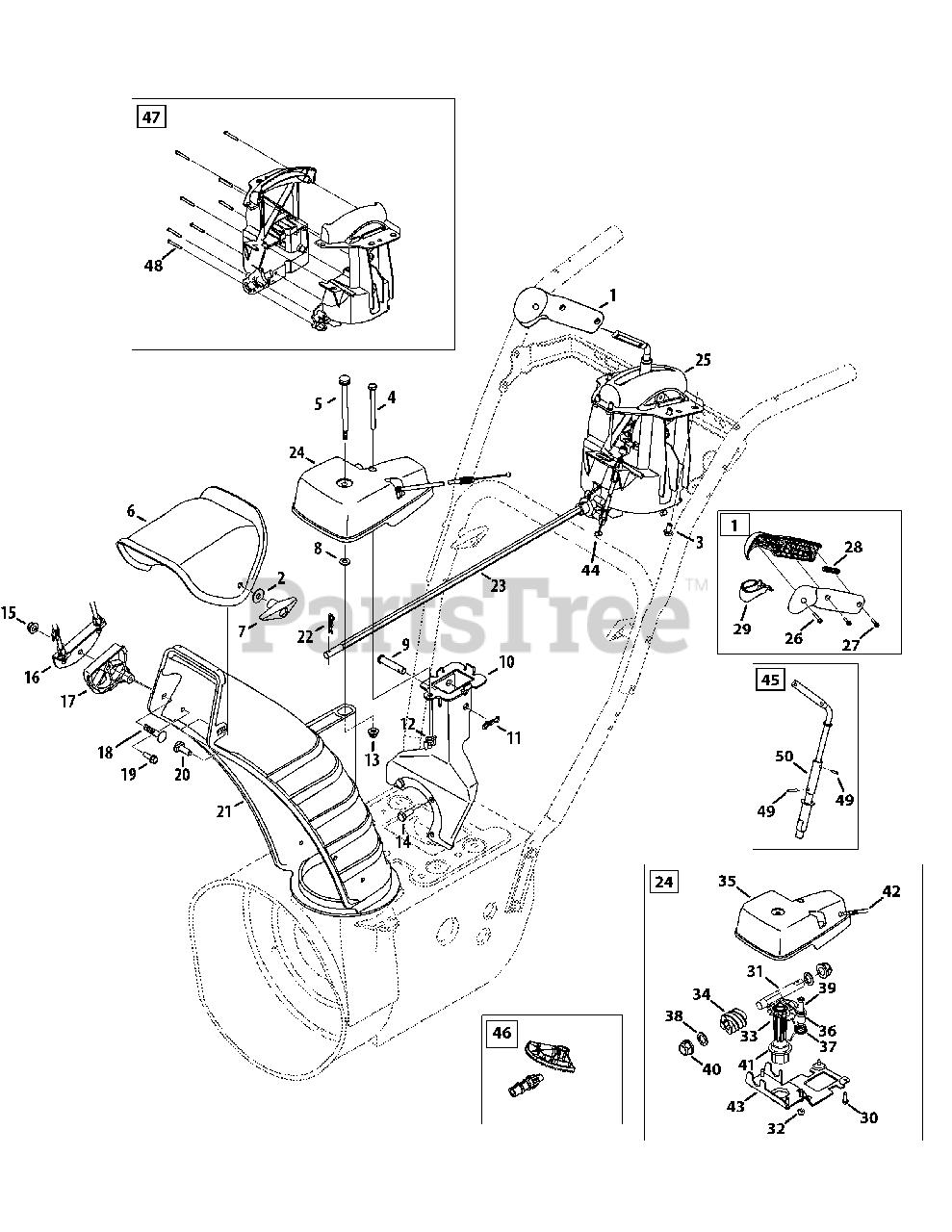

Chute 4-Way Extended Parts Diagram

  • Title
1

Cub Cadet 753-06151

Trigger Handle Housing Assembly Kit

$28.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

3

Cub Cadet 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04370

Hex Head Screw, 1/4-20 x 3.00

$4.49

$

In Stock, Qty 11

0

5

Cub Cadet 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 6

0

7

Cub Cadet 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-04446

Washer, Flat, .25 x .630

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

10

Cub Cadet 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 784-5594-0637

Cable Bracket

$11.99

$

In Stock, Qty 5

0

17

Cub Cadet 731-06451

Chute Tilt Cable Guide

$4.99

$

In Stock, Qty 17

0

18

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

19

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, only 2 left!

0

20

Cub Cadet 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 13

0

21

Cub Cadet 731-06440A

Lower Chute, 5.0

$51.99

$

In Stock, Qty 18

0

22

Cub Cadet 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

23

Cub Cadet 747-05116

Chute Rod, 3/8 Hex

$30.99

$

In Stock, Qty 14

0

24

Cub Cadet 918-04801A

Gearbox Assembly, Chute Rotation
(Superseded to 918-04801B)

$128.99

$

In Stock, Qty 20+

0

25

Cub Cadet 984-04338A

4-Way Chute Control Assembly

$217.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-04353

Screw, #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-04879

Screw, 8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-04893A

Joystick Plug

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-07031

Joystick Trigger

$7.49

$

In Stock, only 1 left!

0

30

Cub Cadet 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

31

$10.99

$

In Stock, only 4 left!

0

32

Cub Cadet 712-0896

Hexlock Nut, 1/4-28

$4.99

$

In Stock, Qty 6

0

33

Cub Cadet 717-04667

Gear, 14 T
(Superseded to 717-04667B)

$10.99

$

In Stock, only 1 left!

0

34

Cub Cadet 717-04672

Worm
(Superseded to 717-04672A)

$9.49

$

In Stock, only 3 left!

0

35

Cub Cadet 731-06906

Gear Cover

$19.99

$

Usually ships in 3-6 days

0

36

$4.99

$

In Stock, Qty 9

0

37

Cub Cadet 732-04638C

Torsion Spring, .721 ID x .474
(Superseded to 732-04638D)

$3.49

$

In Stock, only 1 left!

0

38

Cub Cadet 736-0290

Washer, Flat, .625 x 1.0 x .067

$6.99

$

In Stock, Qty 20+

0

39

Cub Cadet 738-04391

Screw, Shoulder, .340 x .950 x 1/4-28

$5.99

$

In Stock, only 3 left!

0

40

Cub Cadet 941-0225

Hex Bearing

$7.49

$

In Stock, Qty 20+

0

41

Cub Cadet 741-04388A

Flange Bearing

$7.49

$

In Stock, Qty 9

0

42

$34.99

$

In Stock, Qty 17

0

43

Cub Cadet 790-00342B-0637

Gear Bracket
(Superseded to 790-00342C-0637)

$28.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 946-04528A

4-Way Cable
(Superseded to 946-04528B)

$41.99

$

In Stock, Qty 15

0

44

Cub Cadet 946-04477

4-Way Cable w/Clip

$44.99

$

In Stock, only 2 left!

0

45

Cub Cadet 984-04324A

Shift Assembly

$108.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 753-06152

Gear Set Assembly

$25.99

$

In Stock, only 4 left!

0

47

Cub Cadet 753-06153

Handle Housing Assembly

$85.99

$

In Stock, only 1 left!

0

48

Cub Cadet 710-1256

Screw, #8-18 x 1.250

$5.99

$

In Stock, only 2 left!

0

49

$5.49

$

In Stock, Qty 20+

0

50

Cub Cadet 684-04350

Block, Assembly Joint

$29.99

$

In Stock, Qty 5

0

Cub Cadet 725-05213

Chute Ground Wire

Note: (not shown) (if equipped)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 912-0158

Nut, Center Lock, 5/16-18

Note: (not shown) (if equipped)

$3.49

$

In Stock, Qty 20+

0
