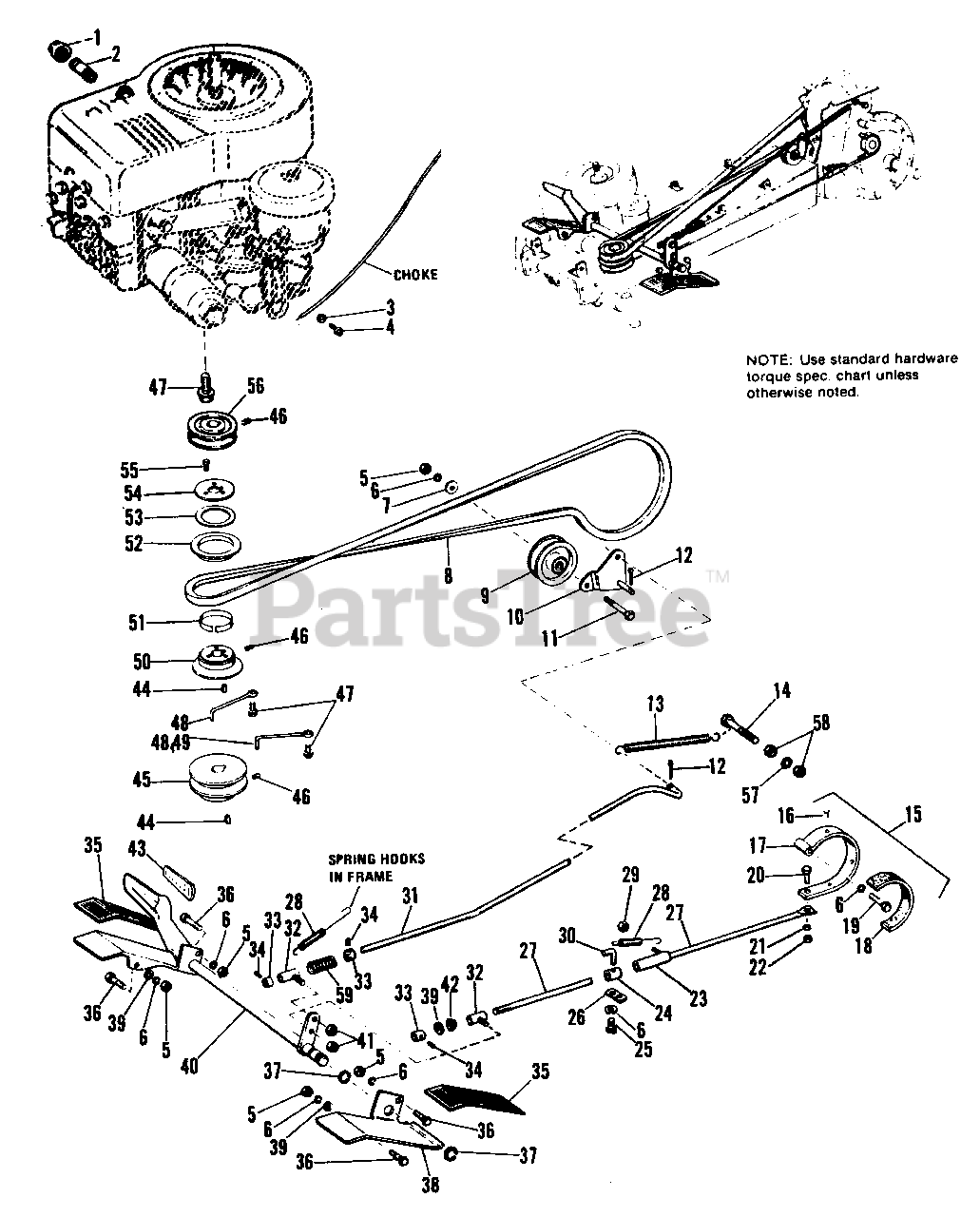

728 (990577) - Simplicity Broadmoor Lawn Tractor, 7hp Engine, Pulley, Brake & Clutch Group Parts Diagram

Broadmoor Lawn Tractor, 7hp

Engine, Pulley, Brake & Clutch Group Parts Diagram

  • Title

1

Simplicity 2801752

CAP, Pipe, 3/8

$

$

Not available

2

Simplicity 157497

NIPPLE, Pipe

$

$

Not available

3

Simplicity 2823212

WASHER, Plain, #10

$

$

Not available

4

Simplicity 922121

SCREW, Machine, #10-32 x 3/8

$

$

Not available

5

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16 (Qty. 5 on 990489 Only)
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 1916965SM

LOCKWASHER, 3/8 (Qty. 6 on 990489 Only)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

7

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

8

Simplicity 2165048SM

V-BELT

$49.99

$

In Stock, only 3 left!

0

9

Simplicity 2106716

PULLEY, Idler

$

$

Not available

10

Simplicity 162021

BRACKET ASSY.

$

$

Not available

11

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

13

Simplicity 2165068SM

SPRING, Return

$12.99

$

In Stock, Qty 5

0

14

Simplicity 2819355

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2 (990489 Only)

$

$

Not available

14

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

15

Simplicity 2156134SM

BRAND ASSY., Brake

$104.99

$

Usually ships in 2-12 days

0

16

Simplicity 2826021SM

RIVET, #7 x 1/4

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 2156134SM

BAND, Brake

$104.99

$

Usually ships in 2-12 days

0

18

Simplicity 2156134SM

LINING, Brake

$104.99

$

Usually ships in 2-12 days

0

19

Simplicity 2819360

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

20

Simplicity 922129

CAPSCREW, Hex Hd., 1/4-20 x 1/2

$

$

Not available

21

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 165075

GUIDE ASSY., Rod

$

$

Not available

24

Simplicity 157087

COLLAR, Parking Brake

$

$

Not available

25

Simplicity 928730

SCREW, Hex, Taptite, 3/8-16 x 1/2

$

$

Not available

26

Simplicity 170659

ANCHOR, Spring (990577 Only)

$

$

Not available

27

Simplicity 156132

ROD, Brake

$

$

Not available

28

Simplicity 2159106SM

SPRING (Qty. 1 on 990577 Only)
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

29

Simplicity 2823358

LOCKNUT Hex, 1/4-20

$

$

Not available

30

Simplicity 157088

LOCK, Parking Brake

$

$

Not available

31

Simplicity 165045

ROD, Clutch (990489 Only)

$

$

Not available

31

Simplicity 170065

ROD, Clutch

$

$

Not available

32

Simplicity 156303

GUIDE ASSY., Rod;

$

$

Not available

33

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

34

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

35

Simplicity 162054

COVER, Footrest

$

$

Not available

36

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

37

Simplicity 2827793SM

RING, Snap
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

38

Simplicity 162029

FOOTREST, L.H.

$

$

Not available

39

Simplicity 1924940SM

WASHER, Plain, 3/8 (Qty. 1 on 990577 Only)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1650452

SHAFT ASSY., Clutch

$

$

Not available

41

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

42

Simplicity 2157127SM

SPRING (990577 Only)

$

$

Not available

43

Simplicity 162098

PAD, Pedal

$

$

Not available

44

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 1 left!

0

45

Simplicity 2156111SM

PULLEY, Engine

$75.99

$

Usually ships in 2-12 days

0

46

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16 (Qty. 2 on 990577 Only)

$

$

Not available

47

Simplicity 2828635SM

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

48

Simplicity 2165044

STOP, Belt (Qty. 1 on 990577 Only)

$

$

Not available

49

Simplicity 170786

STOP, Belt (990577 Only)

$

$

Not available

50

Simplicity 165087

PULLEY, Half (990489 Only)

$

$

Not available

51

Simplicity 165089

BEARING (990489 Only)

$

$

Not available

52

Simplicity 165088

PULLEY, Half (990489 Only)

$

$

Not available

53

Simplicity 165090

WASHER, Thrust (990489 Only)

$

$

Not available

54

Simplicity 165091

WASHER, Thrust (990489 Only)

$

$

Not available

55

Simplicity 2823188

SCREW, Hex Self Tapping 1/4-20 x 1/2 (990489 Only)

$

$

Not available

56

Simplicity 1651566SM

PULLEY, Engine (990489 Only)

$103.99

$

Usually ships in 2-12 days

0

57

Simplicity 1917356SM

LOCKWASHER, 5/16 (990489 Only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

58

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18 (990489 Only)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

59

Simplicity 2157041SM

SPRING (990577 Only)

$15.99

$

Usually ships in 2-12 days

0
