7274 (545-436D100) - Cub Cadet Compact Tractor Hydraulic Line - Gear (Part 2) Parts Diagram

Compact Tractor

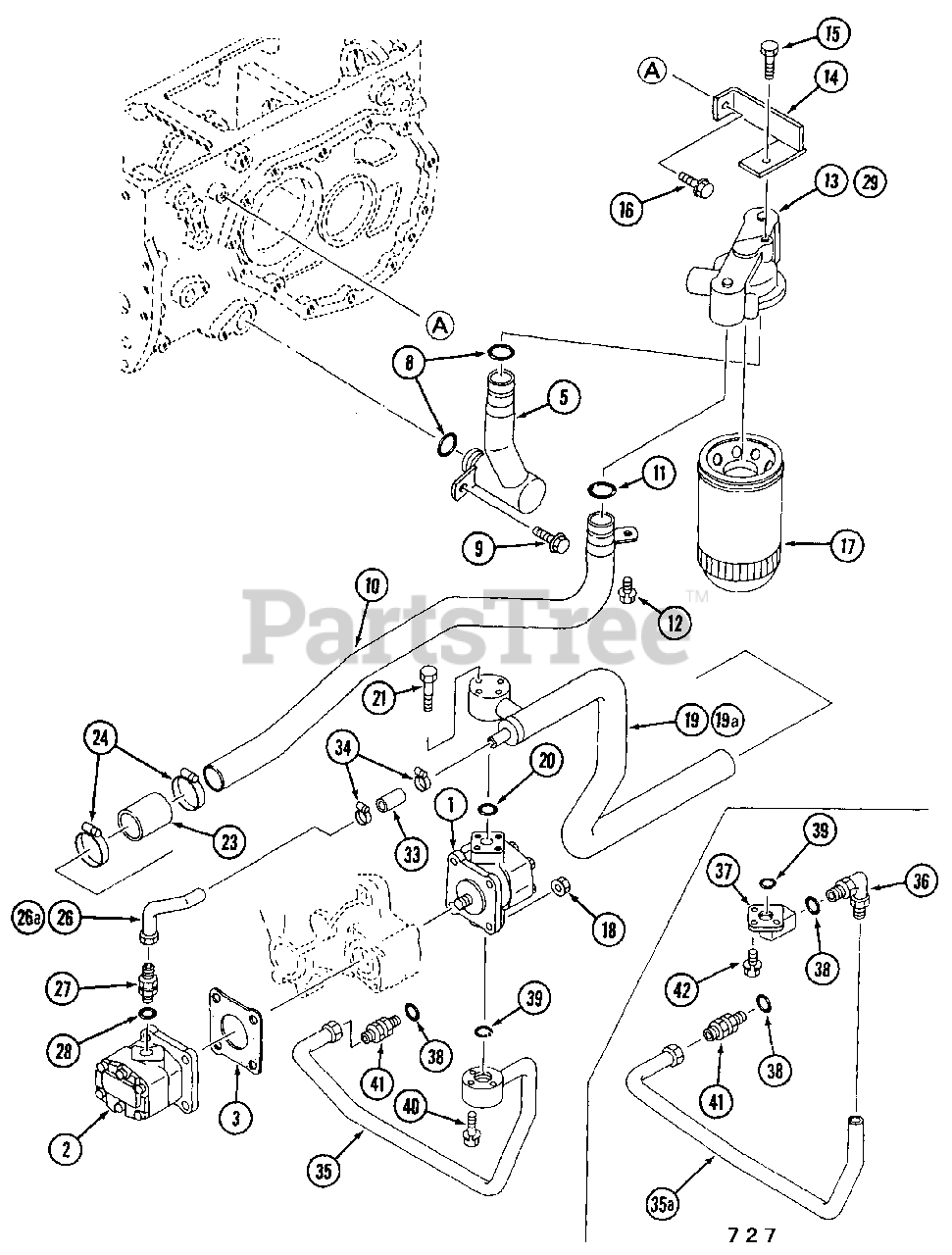

Hydraulic Line - Gear (Part 2) Parts Diagram

  • Title

1

Cub Cadet MA-10302501002

Pump

Note: (Mod. No. 13.8-3953JL)

$969.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-10302539002

Pump

Note: (Mod. No. 6.3-3042J)

$

$

Not available

3

Cub Cadet MA-67700-20101

Packing

Note: As Required

$5.99

$

In Stock, only 3 left!

0

5

Cub Cadet MA-19642503AG0

Pipe, A Suction

$

$

Not available

Cub Cadet MA-19682513AG0

Pipe, A Suction

$

$

Not available

8

Cub Cadet MA-08300100240

O-Ring

$

$

Not available

9

Cub Cadet MA-H1550110020

Bolt

$

$

Not available

10

Cub Cadet MA-19642504AG0

Pipe, B Suction

$

$

Not available

11

Cub Cadet MA-08300100240

O-Ring

$

$

Not available

12

Cub Cadet MA-F1540108016

Bolt

$

$

Not available

13

Base, Filter

Note: Not used on this product

$

$

Not available

14

Cub Cadet MA-19642508AG0

Bracket

$

$

Not available

15

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

16

Cub Cadet MA-F1550110020

Bolt

$

$

Not available

17

Cub Cadet MA-19642509000

Filter

$114.99

$

In Stock, only 3 left!

0

18

Cub Cadet MA-F3010108001

Nut

$

$

Not available

19

Pipe, C Suction

Note: Not used on this product

$

$

Not available

19A

Cub Cadet MA-19642512AG1

Pipe, D Suction

$

$

Not available

20

Cub Cadet MA-08300100200

O-Ring

$

$

Not available

21

Cub Cadet MA-F1440106050

Bolt

$

$

Not available

23

Cub Cadet MA-11762527000

Hose

$

$

Not available

24

Cub Cadet MA-HA230101000

Clip, Hose

$9.99

$

Usually ships in 3-6 days

0

26

Pipe, E Ass'y.

Note: Not used on this product

$

$

Not available

26A

Cub Cadet MA-19642515AG1

Pipe, F Suction Ass'y.

$

$

Not available

27

Cub Cadet MA-06203115211

Body (Nipple)

$

$

Not available

28

Cub Cadet MA-08301100180

O-Ring

$

$

Not available

29

Cub Cadet MA-19642506AG0

Base, Filter

Note: Used on Gear Drive Only

$

$

Not available

33

Cub Cadet MA-19632515001

Hose

$

$

Not available

34

Cub Cadet MA-00501100240

Clamp, Hose

$

$

Not available

35

Pipe, A Press. Ass'y.

Note: Not used on this product

$

$

Not available

35A

Cub Cadet MA-19642520AG0

Pipe, B Press. Ass'y.

$

$

Not available

36

Cub Cadet MA-06205115171

Body (Elbow)

$

$

Not available

37

Cub Cadet MA-19642522000

Joint

$

$

Not available

38

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

39

Cub Cadet MA-08301100180

O-Ring

$

$

Not available

40

Bolt

Note: Not used on this product

$

$

Not available

41

Cub Cadet MA-06203115171

Body (Nipple)

$38.99

$

Usually ships in 3-6 days

0

42

Cub Cadet MA-F1440106020

Bolt

$

$

Not available
