7272 (545-416D100) - Cub Cadet Compact Tractor Cylinder Head Parts Diagram

Compact Tractor

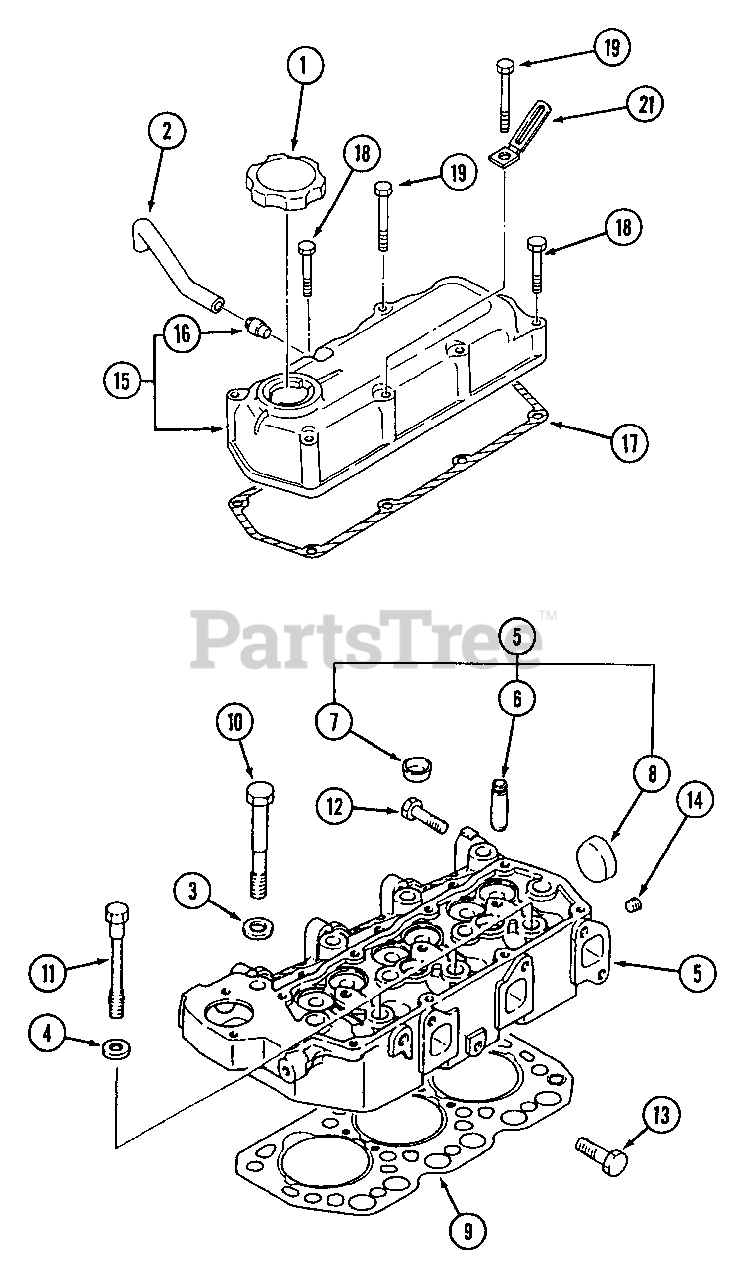

Cylinder Head Parts Diagram

  • Title

1

Cub Cadet MA-MD008784

Cap, Oil Filler

$

$

Not available

2

Cub Cadet MA-MM408537

Pipe, Air Breather
(Superseded to MA-MM438850)

$

$

Not available

3

Cub Cadet MA-K7510250

Washer, Head Bolt

$

$

Not available

4

Cub Cadet MA-MD020733

Washer, Head Bolt

$

$

Not available

5

Cub Cadet MA-30H01-09010

Head Ass'y., Cylinder

$

$

Not available

6

Cub Cadet MA-MM435275

Guide, Valve
(Superseded to MA-30H01-07201)

$37.99

$

In Stock, only 2 left!

0

7

Cub Cadet MA-MF665538

Cap, Sealing
(Superseded to MA-F5014-25000)

$

$

Not available

8

Cub Cadet MA-MD000427

Plug, Expansion
(Superseded to MA-04826-24000)

$

$

Not available

9

Cub Cadet MA-30H01-00200

Gasket, Cylinder Head
(Superseded to MA-30H01-00300)

$134.99

$

Usually ships in 3-6 days

0

10

Cub Cadet MA-K9612300

Bolt, Cylinder Head

$

$

Not available

11

Cub Cadet MA-MM430156

Bolt, Cylinder Head

$

$

Not available

12

Cub Cadet MA-MF106091

Bolt

$

$

Not available

13

Cub Cadet MA-MF101316

Bolt

$

$

Not available

14

Cub Cadet MA-MS661140

Plug, Taper

$

$

Not available

15

Cub Cadet MA-MM435543

Cover Ass'y., Rocker
(Superseded to MA-MM43554302)

$119.99

$

Usually ships in 3-6 days

0

16

Cub Cadet MA-K9644171

Pipe
(Superseded to MA-32A04-09100)

$

$

Not available

17

Cub Cadet MA-30H04-00100

Gasket, Rocker Cover
(Superseded to MA-30H04-00101)

$

$

Not available

18

Cub Cadet MA-MF100065

Bolt

$

$

Not available

19

Cub Cadet MA-MF100069

Bolt

$

$

Not available

21

Cub Cadet MA-MS470058

Clip

$2.49

$

Usually ships in 3-6 days

0
