727013 - Ariens Dethatcher Attachment Dethatcher Parts Diagram

Dethatcher Attachment

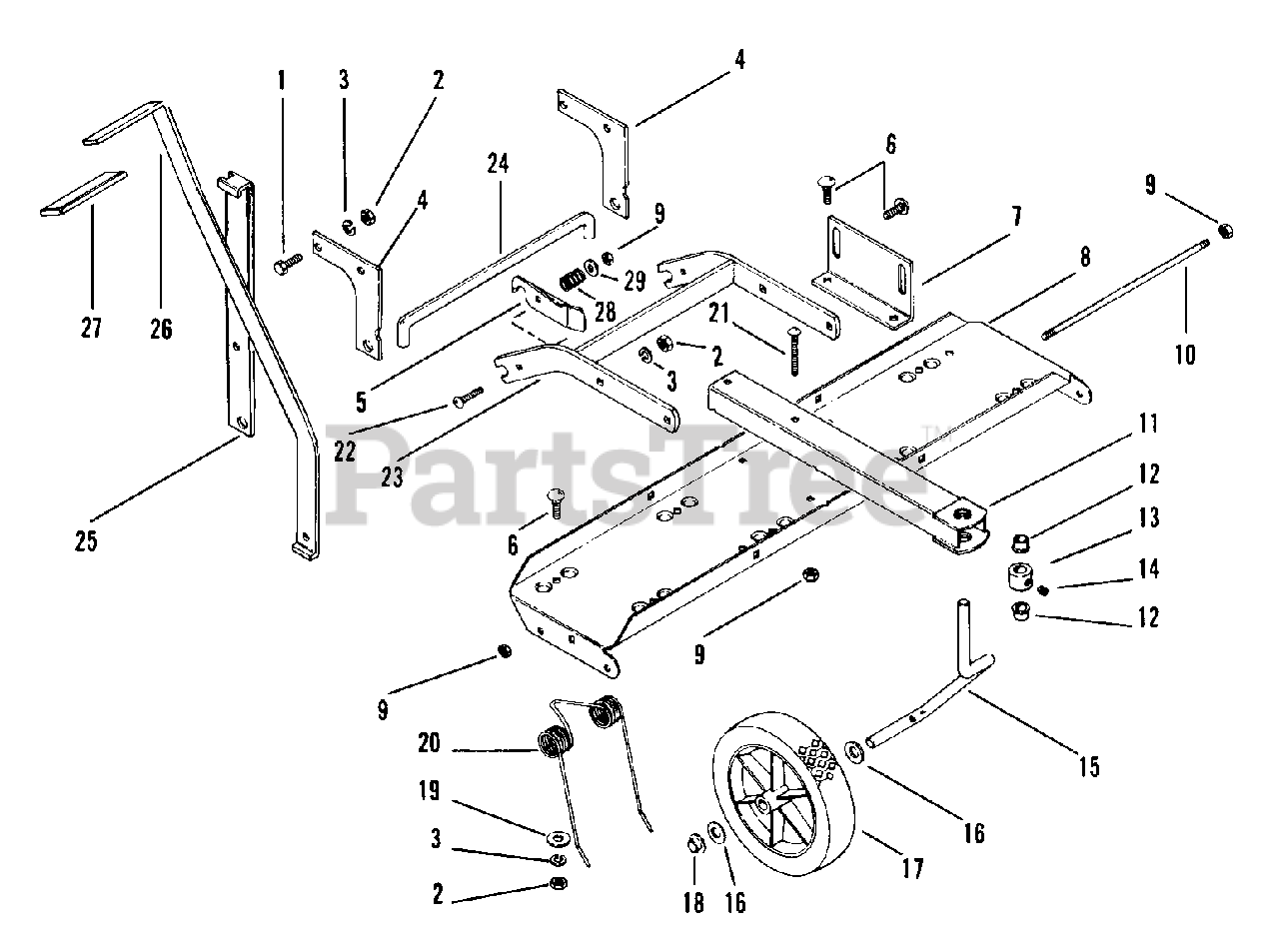

Dethatcher Parts Diagram

  • Title
1

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

3

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 02741400

MOUNTING PLATE

$

$

Not available

5

Ariens 01135700

AXLE LOCK

$31.99

$

Usually ships in 4-12 days

0

6

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 02740900

BRACKET-FRAME MOUNT

$

$

Not available

8

Ariens 02740600

TRAY-TINE

$

$

Not available

9

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 02740700

ROD-TINE

$

$

Not available

11

Ariens 02740800

WHEEL SUPPORT ASSY

$

$

Not available

12

Ariens 05514100

BSHG-FLG .500X.562X.687 NY

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 02741700

LOCKING COLLAR

$

$

Not available

14

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

15

Ariens 02741200

AXLE-WHEEL

$

$

Not available

16

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07116600

WHL
(Superseded to 07114400)

$

$

Not available

18

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

19

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

20

Ariens 02741600

SPRING TINE

$6.49

$

Usually ships in 4-12 days

0

21

Ariens 06209100

BLT-RDHDSQNK .25-20X2.50 PL
(Superseded to 06223200)

$

$

Not available

22

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 02741000

FRAME ASSY

$

$

Not available

24

Ariens 02741300

ROD-MOUNTING

$28.99

$

Usually ships in 4-12 days

0

25

Ariens 02741100

BAR-LOCK

$

$

Not available

26

Ariens 02741500

LIFT HANDLE

$

$

Not available

27

Ariens 07515100

GRIP-VINYL

$

$

Not available

28

Ariens 08322300

SG-COMP .062X.462X.75
(Superseded to 08321700)

$9.49

$

Usually ships in 4-12 days

0

29

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

Usually ships in 4-12 days

0
