727002 - Ariens 12 Volt Electric Start Kit Starter Kits 12 Volt Parts Diagram

12 Volt Electric Start Kit

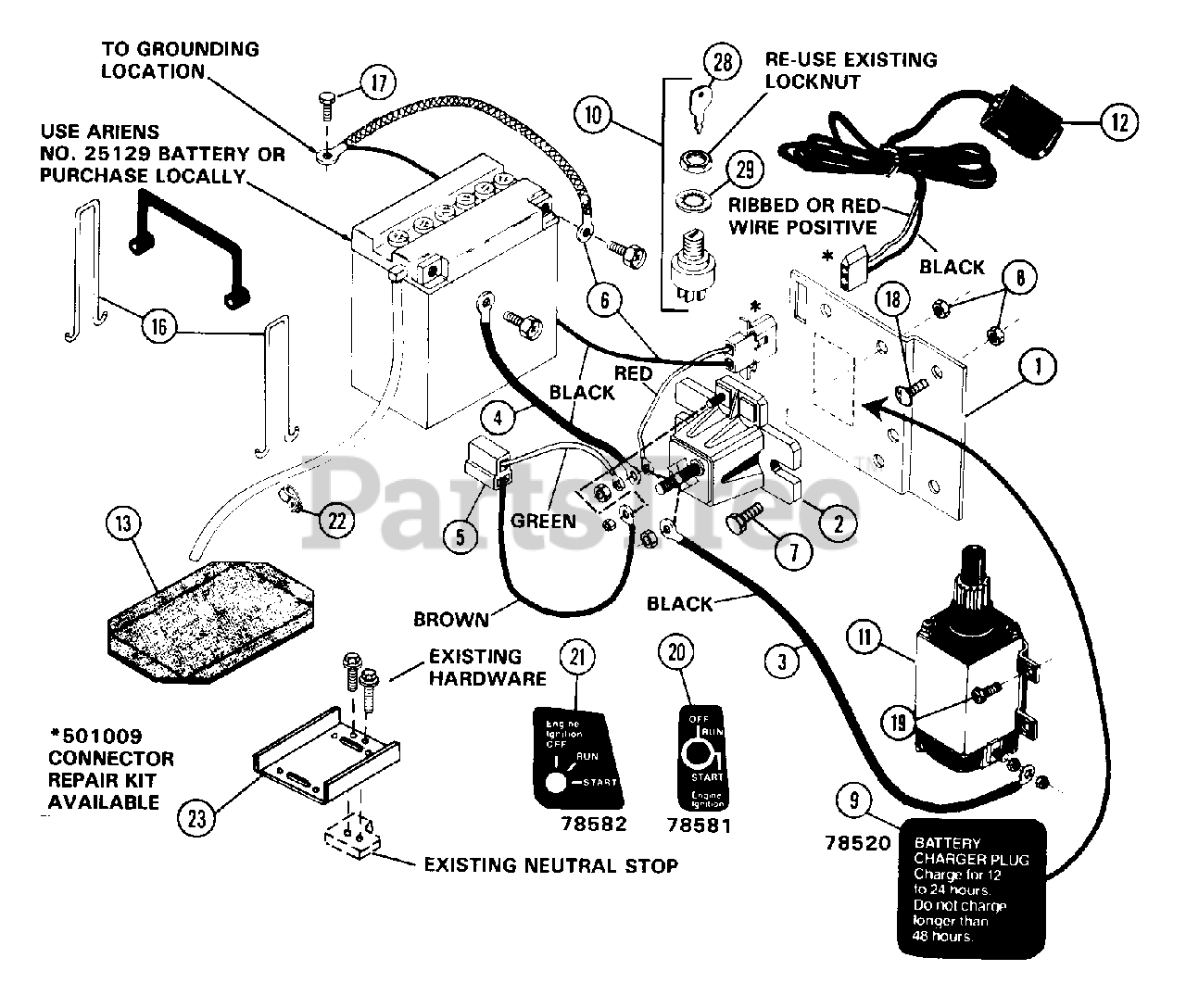

Starter Kits 12 Volt Parts Diagram

  • Title
1

Ariens 02535800

BRACKET SOLENOID

$

$

Not available

2

Ariens 03038700

SOLENOID
(Superseded to 03057700)

$

$

Not available

3

Ariens 02902600

GROUND CABLE
(Superseded to 03557600)

$

$

Not available

4

Ariens 02522700

GROUND CABLE
(Superseded to 02742000)

$

$

Not available

5

Ariens 02535900

WIRING HARNESS SWITCH

$

$

Not available

6

Ariens 02536000

WIRING HARNESS BATTERY CHARGER

$

$

Not available

7

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07852000

CHARGING DECAL

$

$

Not available

10

Ariens 62500900

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 5

0

11

STARTER MOTOR, TECUMSEHUSE TECUMSEH NO. 33605

$

$

Not available

12

Ariens 00124600

BATTERY CHARGER

$

$

Not available

13

Ariens 02530700

RUBBER PAD

$

$

Not available

15

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

16

Ariens 02515200

HOOK
(Superseded to 03640900)

$38.99

$

Usually ships in 4-12 days

0

17

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

19

Ariens 07004500

SCR-CAP CR SEMS .25-20X.50 PL

$

$

Not available

20

Ariens 07858100

ELECTRIC START DECAL

Note: (Used Only On Model(s): 927000 ONLY).

$

$

Not available

21

Ariens 07858200

ENGINE IGNITION DECAL

Note: (Used Only On Model(s): 925000 ONLY).

$

$

Not available

22

$

$

Not available

23

Ariens 02719300

BATTERY TRAY
(Superseded to 52708000)

Note: (Used Only On Model(s): 927000 ONLY).

$

$

Not available

24

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (SOLENOID CABLE MTG)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

Note: (SOLENOID CABLE MTG)

$0.99

$

In Stock, Qty 13

0

26

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

Note: (SOLENOID WIRING MTG)

$1.49

$

Usually ships in 4-12 days

0

27

Ariens 06502600

NUT 10-32 PL

Note: (SOLENOID WIRING MTG)

$

$

Not available

28

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

29

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0
