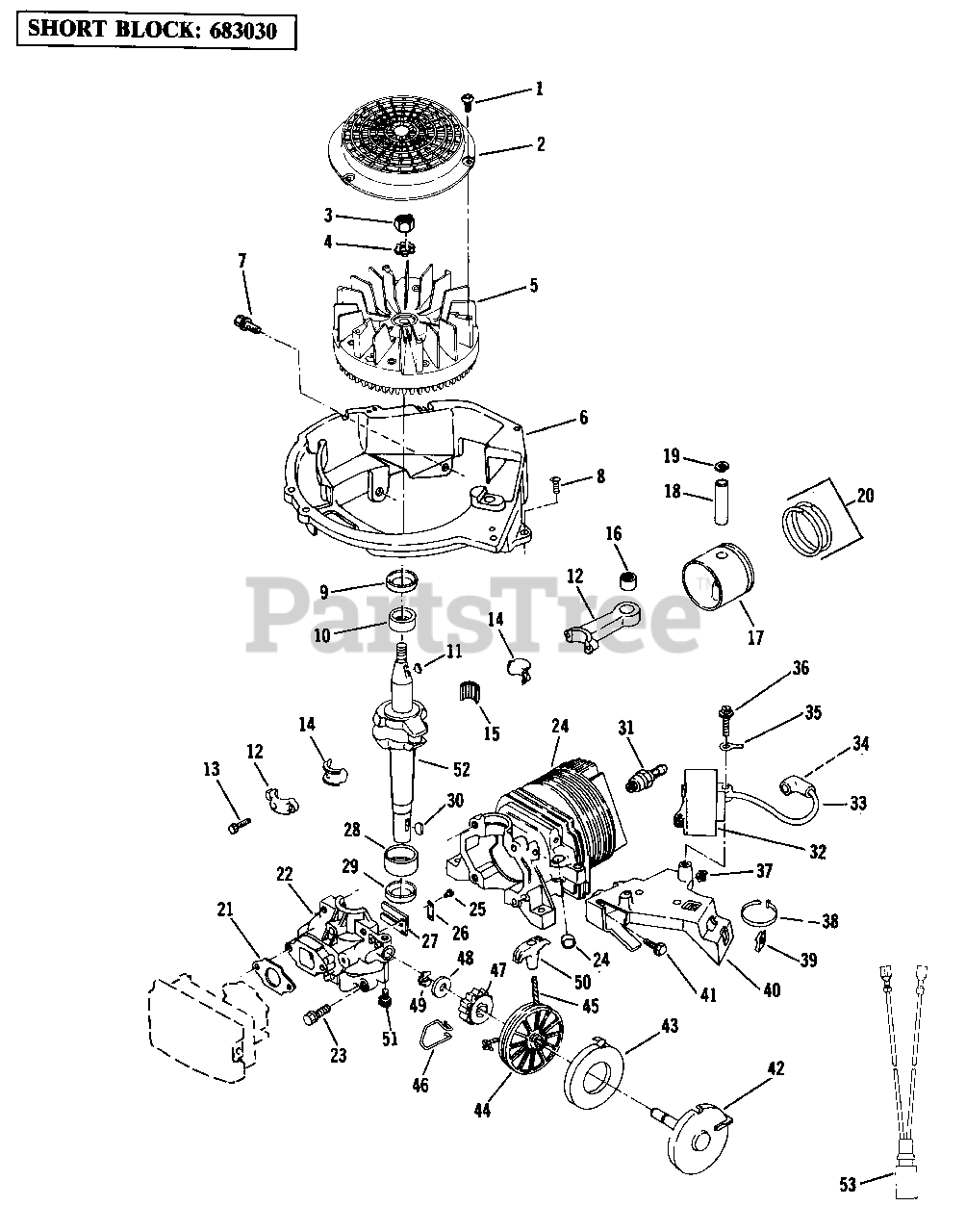

7270 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) ENGINE GROUP MODELS: 7270 Parts Diagram

Walk-Behind Mower

ENGINE GROUP MODELS: 7270 Parts Diagram

  • Title

1

Lawn-Boy 606537

Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 611375

Screen-Flywheel

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 130743

Nut-Flywheel

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 316959

Lockwasher
(Superseded to 325-36)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 682766

Flywheel Assembly
(Superseded to 683855)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

6

Lawn-Boy 682811

Shroud Base

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 609947

Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 609808

Screw-Shd. Base to C. D. Brkt.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 605020

Oil Seal-Upper
(Superseded to 611396)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 681830

Bearing-Main-Upper

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 607199

Key-Flywheel

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 9

0

Lawn-Boy 628677

Piston and Connecting Rod Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Currently unavailable

12

Lawn-Boy 682970

Conn. Rod Assembly
(Superseded to 92-4921)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 611393

Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 677982

Liner Split

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$23.99

$

In Stock, Qty 5

0

16

Lawn-Boy 679144

Bearing Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

17

Lawn-Boy 682986

Piston and Ring Set
(Superseded to 92-4923)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 303712

Retaining Ring

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, Qty 11

0

20

Lawn-Boy 681737

Ring Set

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

21

Lawn-Boy 609476

Gasket-Carburetor to Crankcase Cover

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

22

Lawn-Boy 683026

Cylinder and Crankcase Cover Assembly
(Superseded to 683702)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

23

Lawn-Boy 609918

Screw-Cover to Crankcase

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 609123

Plug

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

Lawn-Boy 610372

Sealant

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 303761

Screw-Reed to C'case Cover
(Superseded to 612872)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.49

$

In Stock, Qty 5

0

26

Lawn-Boy 602587

Plate-Reed Hold Down

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 602588

Reed

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 681831

Bearing-Main-Lower

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 611396

Oil Seal-Lower

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 551041

Key-Clutch Hub
(Superseded to 607199)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 9

0

31

Lawn-Boy 605885

Spark Plug
(Superseded to 614009)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

32

Lawn-Boy 682702

C.D. Ignition Module and Lead Assembly
(Superseded to 100-2948)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$125.99

$

In Stock, only 1 left!

0

Lawn-Boy 318535

Adhesive

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Currently unavailable

33

Lawn-Boy 681678

High Tension Lead

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 510231

Spring Terminal
(Superseded to 684698)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 609651

Terminal-Ground Lead

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

36

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 605120

Grommet-C.D. Bracket

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, Qty 9

0

38

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 6

0

39

Lawn-Boy 609475

Clip-"U"

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 611374

Bracket-Ignition Mounting
(Superseded to 613073)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

41

Lawn-Boy 307028

Screw
(Superseded to 614343)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

Lawn-Boy 682800

Starter Assembly
(Superseded to 683213)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

42

Lawn-Boy 682813

Spring Cup and Pin Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 682814

Spring and Retainer Assembly
(Superseded to 683214)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

44

Lawn-Boy 611400

Pulley

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$49.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 607874

Rope

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

46

Lawn-Boy 609229

Spring-Drag

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, Qty 6

0

47

Lawn-Boy 609133

Pinion

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

48

Lawn-Boy 609005

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

49

Lawn-Boy 609004

Retainer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

50

Lawn-Boy 609477

Handle-Starter

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

51

Lawn-Boy 611073

Set Screw-Starter Assembly
(Superseded to 3274-10)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$9.99

$

In Stock, Qty 13

0

52

Lawn-Boy 611423

Crankshaft
(Superseded to 94-5723)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

53

Lawn-Boy 682784

Wire Harness-Engine

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available
