7268 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) Drive Group Models: 8237, R8237, 8238ae, 8651, 8671, 8671ae Parts Diagram

Walk-Behind Mower

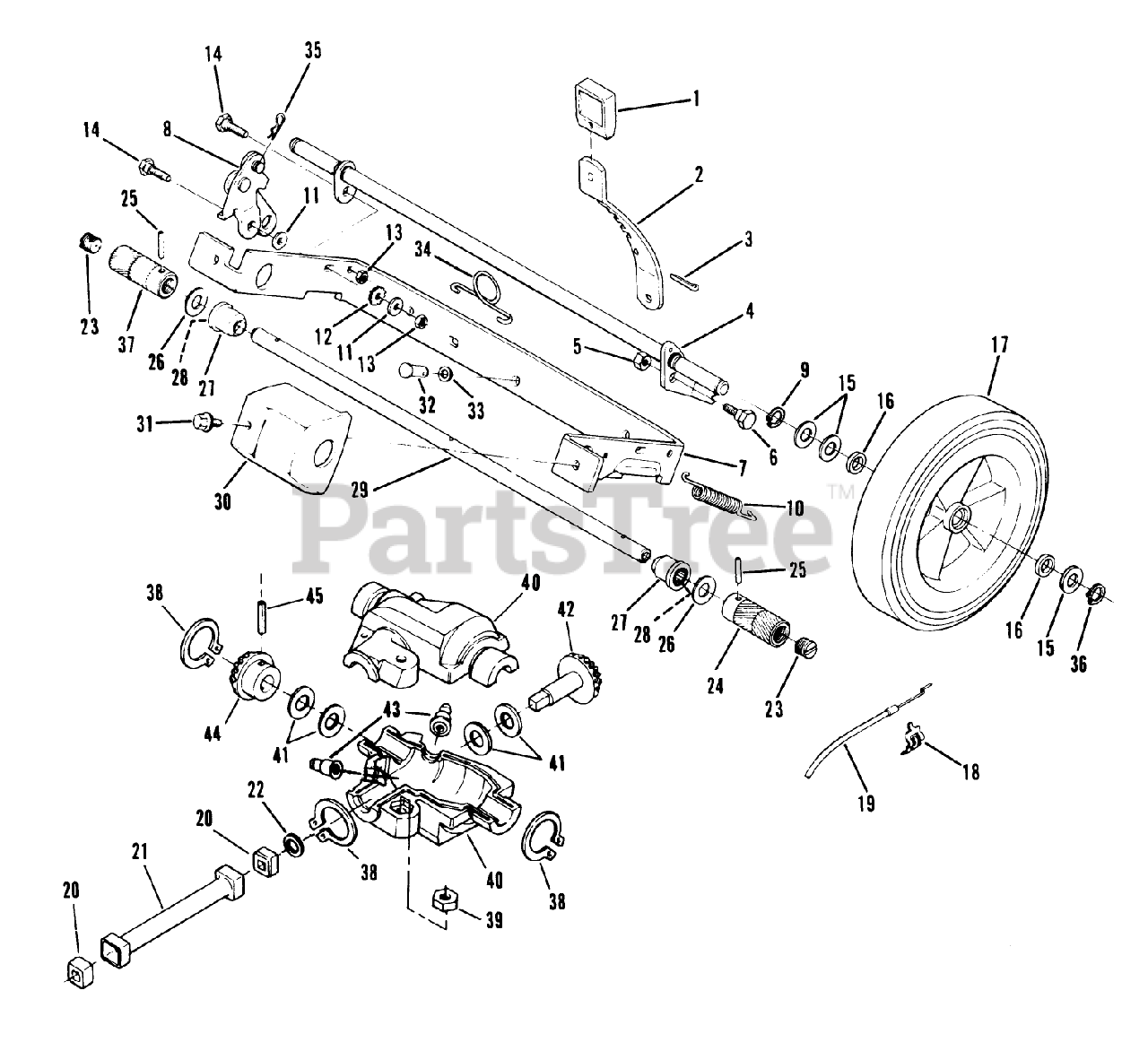

Drive Group Models: 8237, R8237, 8238ae, 8651, 8671, 8671ae Parts Diagram

  • Title

1

Lawn-Boy 610446

DISCONTINUED

Note: Models 8651, 8671, 8671AE only

$

$

Not available

1

Lawn-Boy 610446

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

1

Lawn-Boy 607562

KNOB

Note: Models 8237, R8237, 8238AE, R8238AE only

$15.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 607562

KNOB

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 607673

LEVER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 603036

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

Lawn-Boy 682179

AXLE BRK AY

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$104.99

$

Usually ships in 3-6 days

0

Lawn-Boy 682179

AXLE BRK AY

Note: Models 8651, 8671, 8671AE only

$104.99

$

Usually ships in 3-6 days

0

Lawn-Boy 681290

DISCONTINUED

Note: Models 8237, R8237, 8238AE, R8238AE only

$

$

Not available

Lawn-Boy 681290

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 682180

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 682180

DISCONTINUED

Note: Models 8651, 8671, 8671AE only

$

$

Not available

4

Lawn-Boy 681534

DISCONTINUED

Note: Models 8237, R8237, 8238AE, R8238AE only

$

$

Not available

4

Lawn-Boy 681534

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

BOLT RB&W

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610500

BRK-21" AXLE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$384.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610500

BRK-21" AXLE

Note: Models 8237, R8237, 8238AE, R8238AE only

$384.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 679630

See Supercession: 683775
(Superseded to 683775)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 607676

RET RING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

10

Lawn-Boy 603003

SPRING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 603093

WASHER S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 603123

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 602201

STOP NUT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 602984

BOLT RB&W

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 682218

See Supercession: 682972
(Superseded to 682972)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$26.99

$

In Stock, Qty 7

0

17

Lawn-Boy 682218

See Supercession: 682972
(Superseded to 682972)

Note: Models 8651, 8671, 8671AE only

$26.99

$

In Stock, Qty 7

0

17

Lawn-Boy 678638

See Supercession: 682972
(Superseded to 682972)

Note: Models 8237, R8237, 8238AE, R8238AE only

$26.99

$

In Stock, Qty 7

0

17

Lawn-Boy 678638

See Supercession: 682972
(Superseded to 682972)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$26.99

$

In Stock, Qty 7

0

18

Lawn-Boy 608936

See Supercession: 682603
(Superseded to 682603)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681667

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681899

Cable-Starter Interlock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Currently unavailable

19

Lawn-Boy 681899

Cable-Starter Interlock

Note: Models 8238AE, R8238AE and 8671AE

$

$

Currently unavailable

20

Lawn-Boy 608563

BUSHING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 610625

See Supercession: 683129
(Superseded to 683129)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 610644

O-RING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 602926

GREASE PLUG

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$12.99

$

In Stock, Qty 6

0

24

Lawn-Boy 610475

ROLLER-LH

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$120.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 610475

ROLLER-LH

Note: Models 8237, R8237, 8238AE, R8238AE only

$120.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 607657

DISCONTINUED

Note: Models 8237, R8237, 8238AE, R8238AE only

$

$

Not available

24

Lawn-Boy 607657

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 606013

PIN

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, Qty 5

0

26

Lawn-Boy 603037

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 678782

See Supercession: 681904
(Superseded to 681904)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 679144

BEARING AY F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 679952

DRIVE SHFT TAG AY

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 607767

GUARD

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 607783

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 606115

PIN

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 606116

WASHER SPRING LAR

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 605802

SPRING N.A.S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$7.99

$

In Stock, Qty 7

0

35

Lawn-Boy 603019

See Supercession: 1-806003
(Superseded to 1-806003)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 607676

RET RING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

37

Lawn-Boy 610476

ROLLER-RH

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 610476

ROLLER-RH

Note: Models 8651, 8671, 8671AE only

$

$

Not available

37

Lawn-Boy 607658

DISCONTINUED

Note: Models 8237, R8237, 8238AE, R8238AE only

$

$

Not available

37

Lawn-Boy 607658

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 908973

See Supercession: 32151-33
(Superseded to 32151-33)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, only 2 left!

0

39

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

40

Lawn-Boy 682415

See Supercession: 682662
(Superseded to 682662)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 608030

THRUST WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

42

Lawn-Boy 607663

DISCONTINUED
(Superseded to 98-8319)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 610153

ZERK FITTING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 607664

DISCONTINUED
(Superseded to 98-8319)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 311866

ROLL PIN

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0
