7268 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) Deck And Shroud Group Model: 8071 Parts Diagram

Walk-Behind Mower

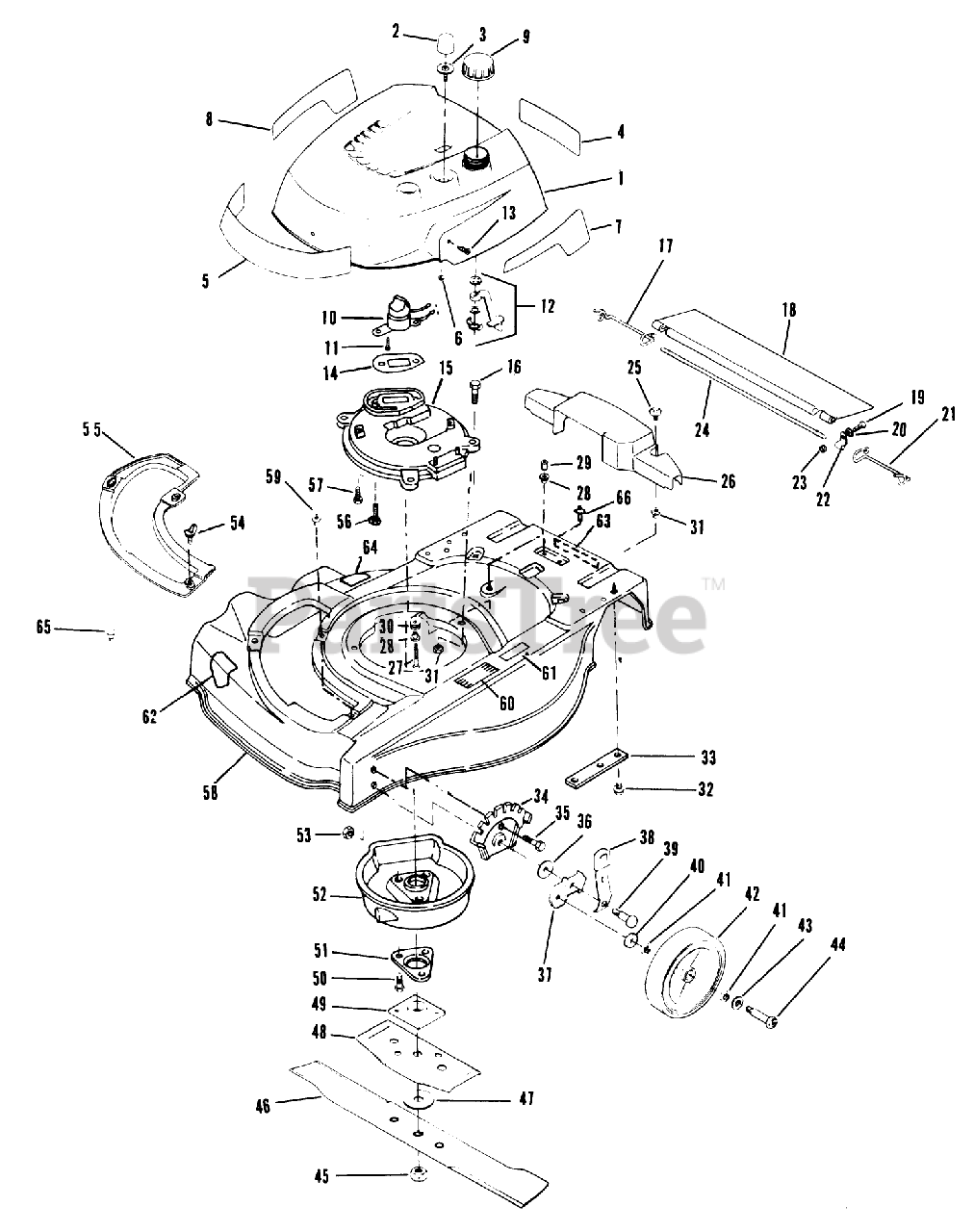

Deck And Shroud Group Model: 8071 Parts Diagram

  • Title

1

Lawn-Boy 682539

DISCONTINUED
(Superseded to 682586)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 610482

P-BULB LAV-RUB

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 607311

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 610493

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 610408

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 608027

LOCKNUT S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

7

Lawn-Boy 610406

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 610407

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 682181

See Supercession: 682755
(Superseded to 682755)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 682515

DISCONTINUED
(Superseded to 104-4446)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609549

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 681817

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608997

SCREW S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

14

Lawn-Boy 610367

See Supercession: 613755
(Superseded to 613755)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 609989

PLATE,MUFFLER F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$161.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 610144

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 610566

WASHER F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 608382

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 610143

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 609614

See Supercession: 611297
(Superseded to 611297)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 306832

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 607605

SPACER ECK PRES

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 609588

SPACER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 610145

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

33

Lawn-Boy 610827

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 610826

PLATE HGT ADJ TRO

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 610039

See Supercession: 323-4
(Superseded to 323-4)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

36

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 682537

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

40

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

42

Lawn-Boy 682220

See Supercession: 678636
(Superseded to 678636)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

43

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

44

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

46

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

47

Lawn-Boy 605058

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, Qty 12

0

48

Lawn-Boy 603541

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

50

Lawn-Boy 608471

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 609980

SUPPORT F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 682438

See Supercession: 682873-03
(Superseded to 682873-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

54

Lawn-Boy 606733

WING SCREW LAWRE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

55

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

56

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

57

Lawn-Boy 609994

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 682422

See Supercession: 684512
(Superseded to 684512)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.49

$

In Stock, Qty 13

0

60

Lawn-Boy 609961

PAD FOOT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 609993

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

63

Lawn-Boy 609991

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 610860

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, Qty 16

0

66

Lawn-Boy 610829

Rivet-Serial Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Currently unavailable
