7268 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) HANDLE AND GRASS CATCHER GROUP MODELS: 5247, 7229, 7268 Parts Diagram

Walk-Behind Mower

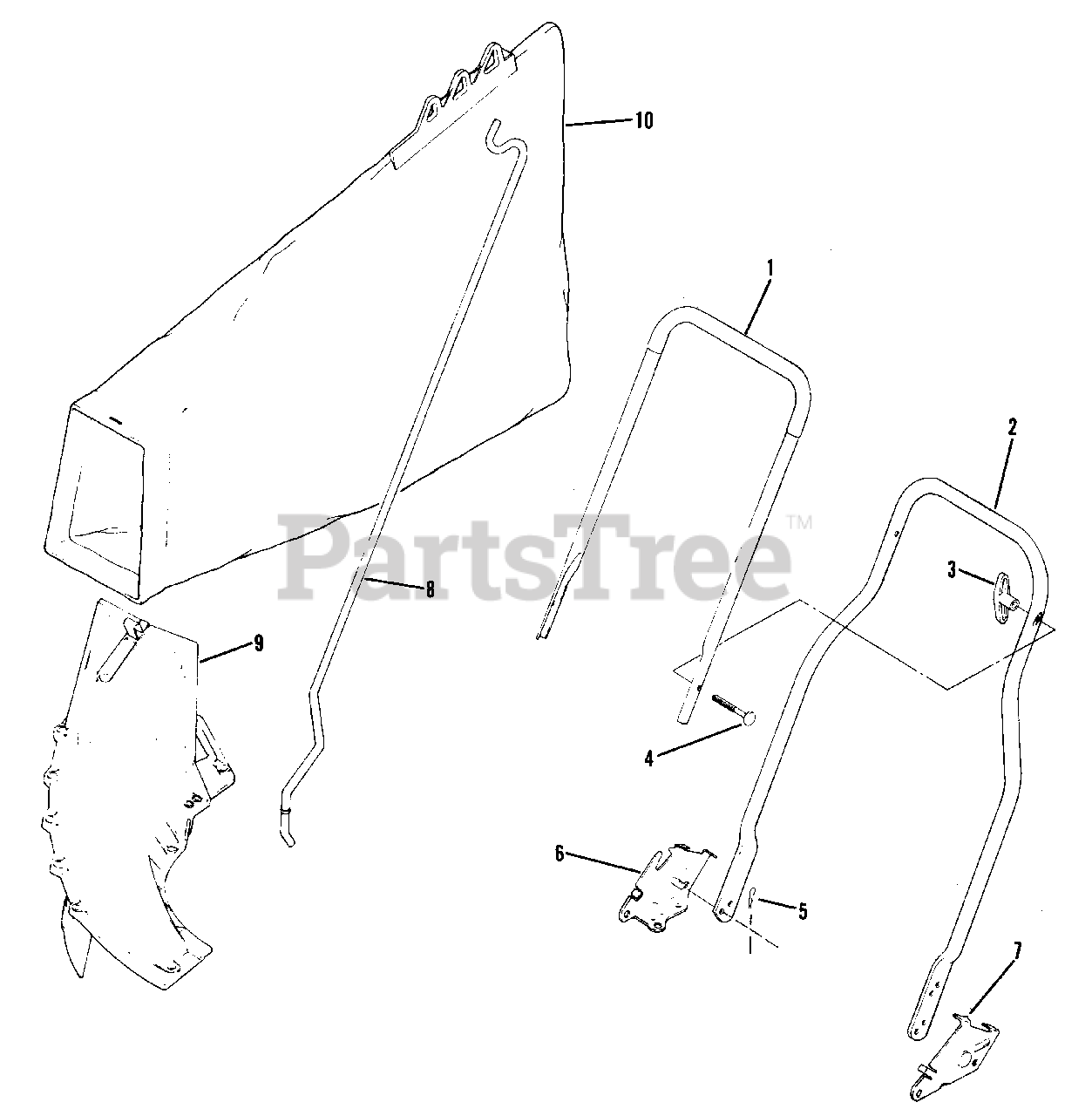

HANDLE AND GRASS CATCHER GROUP MODELS: 5247, 7229, 7268 Parts Diagram

  • Title
1

Lawn-Boy 681834

Top Handle & Grip Assembly
(Superseded to 608094)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 607545

Handle Section-Bottom
(Superseded to 612787)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 607544

Knob

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

4

Lawn-Boy 607543

Screw
(Superseded to 611184)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$8.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 605803

Hair Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 609799

Handle Section-Bottom
(Superseded to 613363)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 681779

Handle Bracket-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 681778

Handle Bracket-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 607561

Rod-Grass Bag

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Catcher Models Only

$

$

Not available

9

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Catcher Models Only

$

$

Not available

10

Lawn-Boy 679966

Bag Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Catcher Models Only

$

$

Not available
