7266 - Lawn-Boy Walk-Behind Mower (SN: 800000001 - 899999999) (1978) Model D-641 Magneto And Starter Models Used On: 8235 Parts Diagram

Walk-Behind Mower

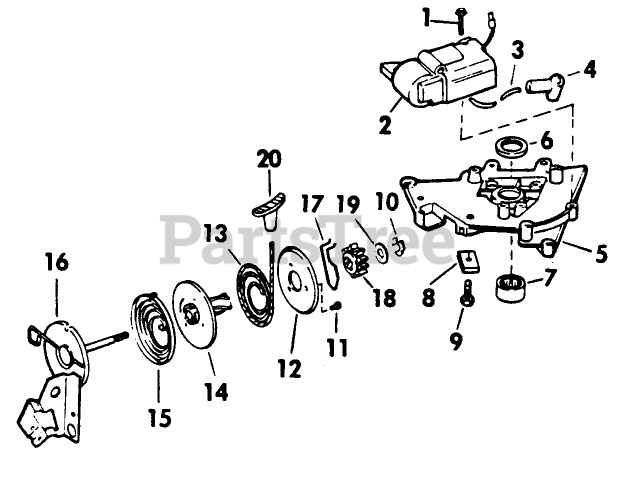

Model D-641 Magneto And Starter Models Used On: 8235 Parts Diagram

  • Title

1

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$2.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 681542

See Supercession: 94-7418
(Superseded to 94-7418)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

3

Lawn-Boy 678117

LEAD AY. S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$20.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 580339

See Supercession: 684698
(Superseded to 684698)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$7.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 681315

DISCONTINUED

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

6

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$6.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 679277

BEARING AY. S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

8

Lawn-Boy 604261

DISCONTINUED

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

9

Lawn-Boy 604857

SCREW S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$7.49

$

Usually ships in 3-6 days

0

Lawn-Boy 681396

STARTER AY S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$364.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 609004

DISCONTINUED

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

11

Lawn-Boy 609003

SCREW S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

12

Lawn-Boy 604244

See Supercession: 681896
(Superseded to 681896)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

13

Lawn-Boy 607874

DISCONTINUED

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

14

Lawn-Boy 609002

See Supercession: 681896
(Superseded to 681896)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

15

Lawn-Boy 604257

SPRING S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 681395

SPRING & CUP AY S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

17

Lawn-Boy 604260

STARTER SPRING S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$14.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 607547

STARTER PINION S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

19

Lawn-Boy 609005

WASHER S

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

20

Lawn-Boy 606663

DISCONTINUED

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available
