7265 (54A-445D100) - Cub Cadet Compact Tractor Repair Gasket Kit 26 HP Engine Parts Diagram

Compact Tractor

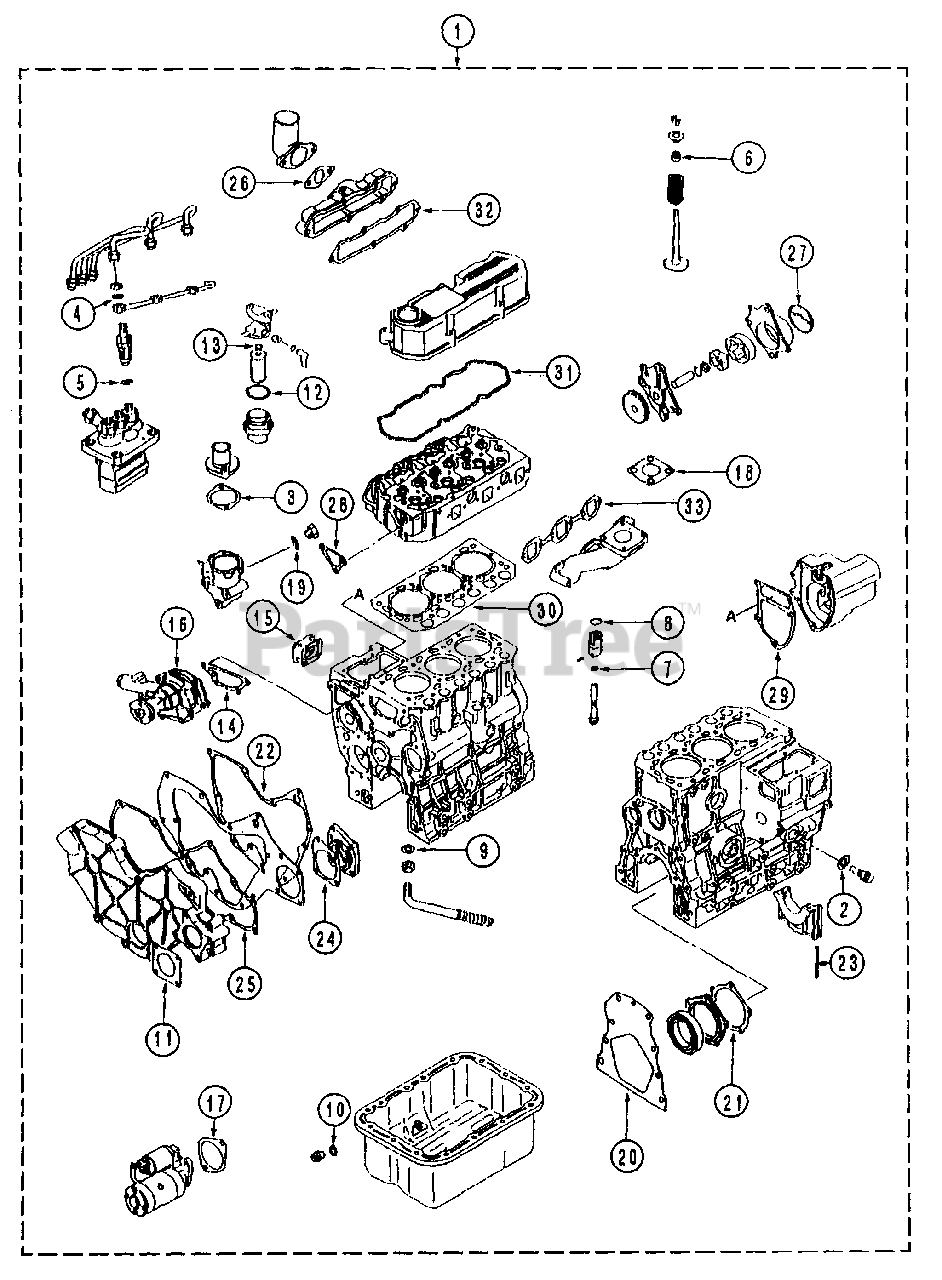

Repair Gasket Kit 26 HP Engine Parts Diagram

  • Title

1

Cub Cadet MA-31B94-20061

Gasket Kit, (O/H)
(Superseded to MA-31B94-16010)

$640.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-F4202-22000

Gasket

$

$

Not available

3

Cub Cadet MA-MD000551

Gasket
(Superseded to MA-31A46-11200)

$9.99

$

In Stock, only 2 left!

0

4

Cub Cadet MA-MD068355

Gasket

$

$

Not available

5

Cub Cadet MA-MD070717

Gasket

$6.49

$

In Stock, only 3 left!

0

6

Cub Cadet MA-MD115472

Seal, Valve Stem

$13.99

$

Usually ships in 3-6 days

0

7

Cub Cadet MA-MD701788

O-Ring

$

$

Not available

8

Cub Cadet MA-MF520012

O-Ring
(Superseded to MA-08300100180)

$

$

Not available

9

Cub Cadet MA-MF660036

Gasket

$

$

Not available

10

Cub Cadet MA-MF660065

Gasket

$

$

Currently unavailable

11

Cub Cadet MA-MM40120601

Gasket, O/Pump Cover
(Superseded to MA-30A11-00101)

$

$

Not available

12

Cub Cadet MA-MM404878

O-Ring
(Superseded to MA-30L62-02500)

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet MA-MM404881

O-Ring
(Superseded to MA-F3151-01000)

$

$

Not available

14

Cub Cadet MA-MM40742202

Gasket, Water Pump

$

$

Currently unavailable

15

Cub Cadet MA-MM40915101

Gasket, Tie-Rod Cover
(Superseded to MA-30A63-00101)

$

$

Not available

16

Cub Cadet MA-MM409326

Gasket, Water Pump

$

$

Not available

17

Cub Cadet MA-MM40941901

Gasket, Starter
(Superseded to MA-30A66-00100)

$

$

Not available

18

Cub Cadet MA-30A30-00200

Gasket

$8.99

$

Usually ships in 3-6 days

0

19

Cub Cadet MA-30636-25901

Gasket
(Superseded to MA-30636-25900)

$

$

Not available

20

Cub Cadet MA-31A07-02401

Gasket, Rear Plate

$

$

Not available

21

Cub Cadet MA-31A07-11701

Gasket, Oil Seal Case

$

$

Not available

22

Cub Cadet MA-31A07-11901

Gasket, Front Plate

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet MA-31A07-12200

Seal, Side

$

$

Not available

24

Cub Cadet MA-31A11-05201

Gasket, Housing

$

$

Not available

25

Cub Cadet MA-31A11-11101

Gasket, Gear
(Superseded to MA-31A11-11100)

$38.99

$

Usually ships in 3-6 days

0

26

Cub Cadet MA-31A30-00801

Gasket, Inlet

$

$

Not available

27

Cub Cadet MA-31A35-02300

Packing, Body

$

$

Not available

28

Cub Cadet MA-31A46-10101

Gasket, Thermo Case

$

$

Not available

29

Cub Cadet MA-31A63-12201

Gasket, Governor Case
(Superseded to MA-31A63-12200)

$

$

Not available

30

Cub Cadet MA-31B01-23200

Gasket, Cylinder Head

$122.99

$

In Stock, only 2 left!

0

31

Cub Cadet MA-31B04-13201

Gasket, Rocker Cover

$

$

Not available

32

Cub Cadet MA-31B30-00902

Gasket, Inlet Cover

$

$

Not available

33

Cub Cadet MA-31B32-01200

Gasket, Exh. Manifold

$

$

Not available

Cub Cadet MA-32A91-05100

Gasket, Liquid

Note: Not Shown

$

$

Currently unavailable
