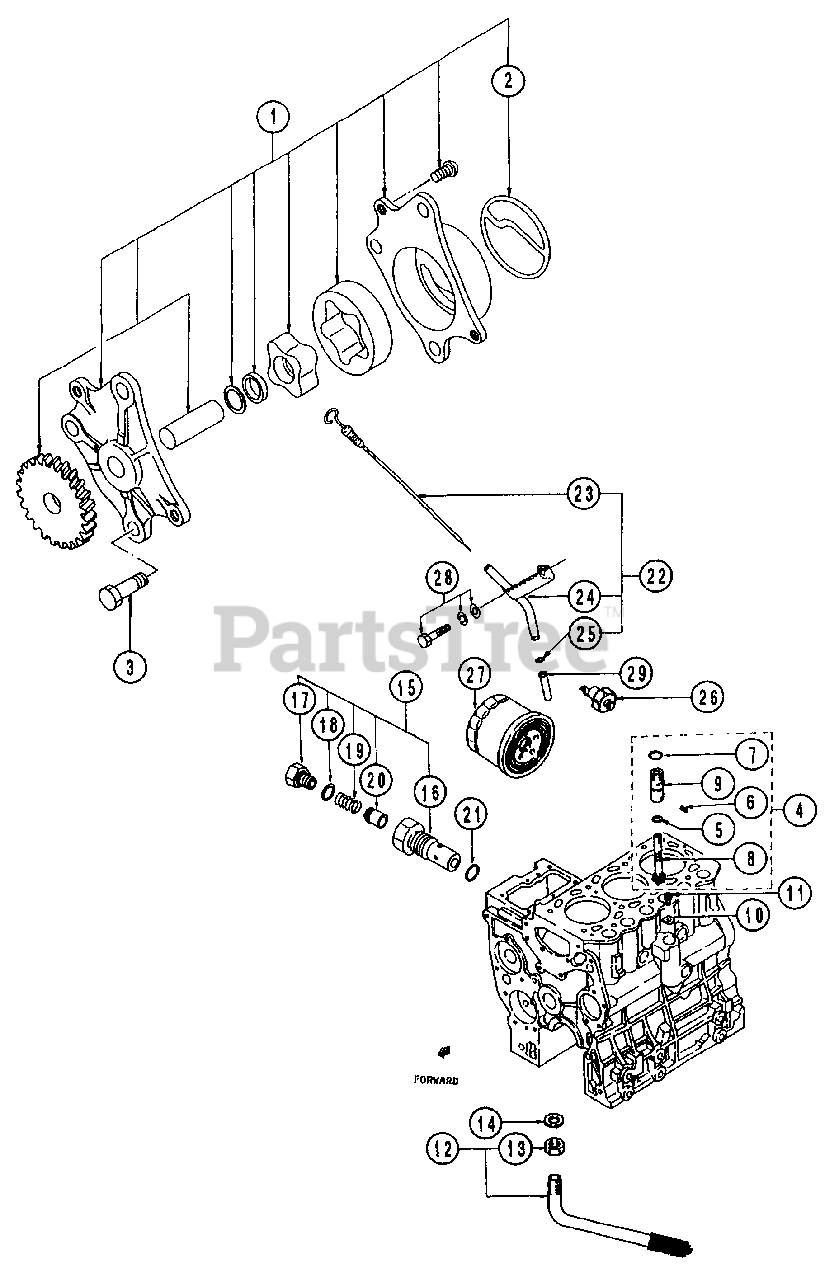

7265 (54A-445D100) - Cub Cadet Compact Tractor Lubricating Parts 26 HP Engine Parts Diagram

Compact Tractor

Lubricating Parts 26 HP Engine Parts Diagram

  • Title
1

Cub Cadet MA-31A35-30010

Pump Ass'y, Oil

$

$

Not available

2

Cub Cadet MA-31A35-02300

Packing, Body

$

$

Not available

$

$

Not available

4

Cub Cadet MA-MM430598

Driven Unit
(Superseded to MA-MM43059801)

$

$

Not available

$

$

Not available

6

Cub Cadet MA-MF472535

Pin, Spring
(Superseded to MA-05500003014)

$

$

Not available

7

Cub Cadet MA-MF520012

O-Ring
(Superseded to MA-08300100180)

$

$

Not available

8

Cub Cadet MA-MM407171

Gear
(Superseded to MA-MM43059801)

$

$

Not available

$

$

Not available

$

$

Not available

11

Cub Cadet MA-F1805-06012

Bolt, W/Washer

$

$

Currently unavailable

12

Cub Cadet MA-31A35-05040

Strainer Ass'y

$

$

Not available

13

$

$

Not available

$

$

Not available

15

Cub Cadet MA-32A36-05011

Valve Ass'y, Relief

$

$

Currently unavailable

16

Housing, Valve

$

$

Not available

17

Plug

$

$

Not available

18

Gasket

$

$

Not available

19

Spring, Relief

$

$

Not available

20

Plunger, Relief

$

$

Not available

$

$

Not available

22

Cub Cadet MA-31B42-01050

Gage & Guide Ass'y

$

$

Currently unavailable

23

Cub Cadet MA-31B42-01500

Gauge Ass'y, Oil Level

$

$

Not available

24

Cub Cadet MA-31B42-01600

Guide, Oil Level

$

$

Not available

25

Cub Cadet MA-MF520004

O-Ring
(Superseded to MA-08300100090)

$

$

Not available

26

$

$

Not available

27

Cub Cadet MA-MD134953

Filter Ass'y
(Superseded to MA-31A40-02101)

$36.99

$

Usually ships in 3-6 days

0

28

Cub Cadet MA-F1825-08016

Bolt, W/Washer

$

$

Currently unavailable

29

Cub Cadet MA-31B42-01400

Guide, Oil Level Gage

$

$

Not available
