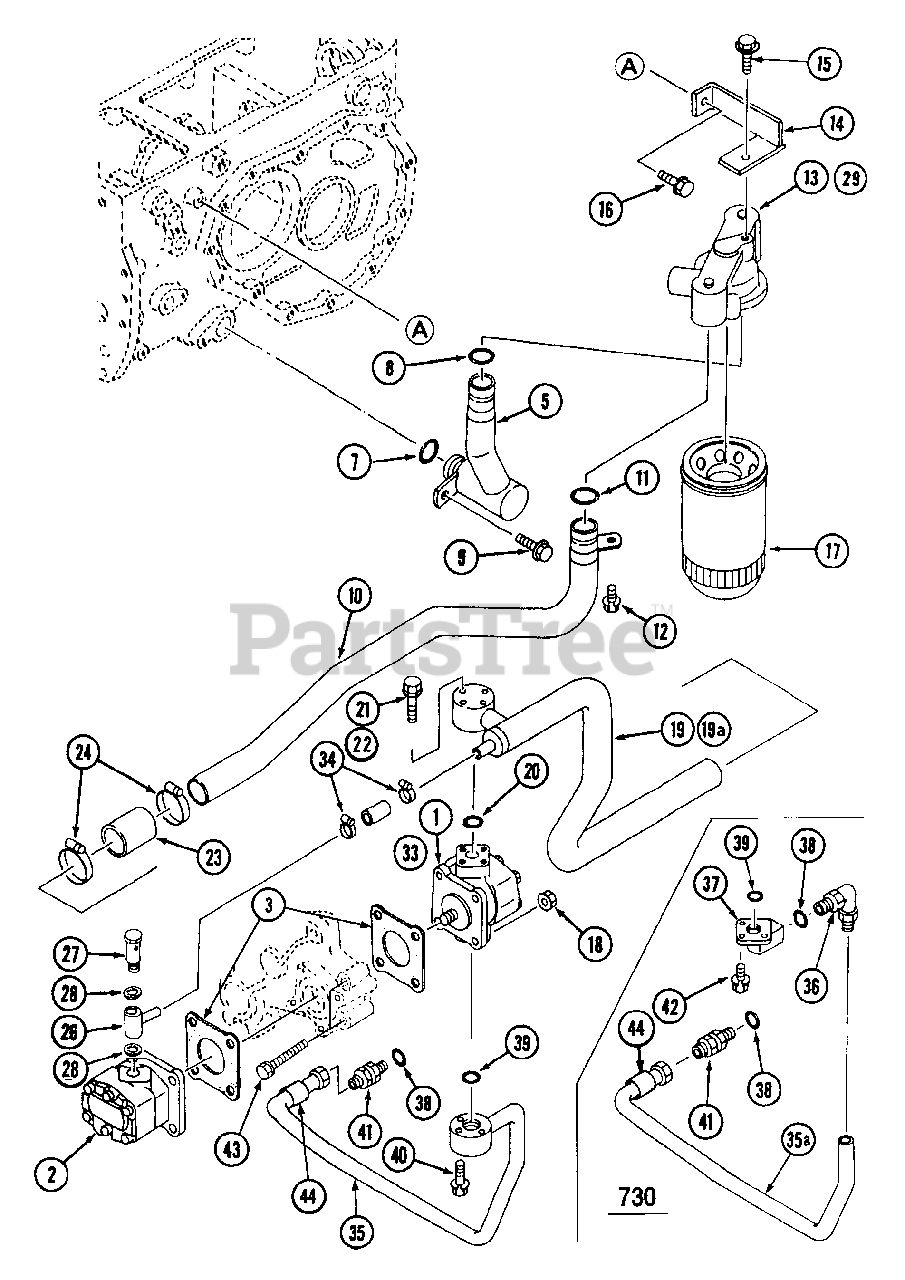

7265 (54A-445D100) - Cub Cadet Compact Tractor Hydraulic Line Gear Drive 726 (Part 1) Parts Diagram

Compact Tractor

Hydraulic Line Gear Drive 726 (Part 1) Parts Diagram

  • Title

1

Cub Cadet MA-10302501002

Pump

$969.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-10302539002

Pump

$

$

Not available

3

Cub Cadet MA-67700-20101

Packing

$5.99

$

In Stock, only 3 left!

0

5

Cub Cadet MA-19682513AG0

Pipe A, Suction

$

$

Not available

7

Cub Cadet MA-08300100320

O-Ring

$

$

Not available

8

Cub Cadet MA-08300100240

O-Ring

$

$

Not available

9

Cub Cadet MA-H1550110020

Bolt

$

$

Not available

10

Cub Cadet MA-19642504AG0

Pipe B, Suction

$

$

Not available

11

Cub Cadet MA-08300100240

O-Ring

$

$

Not available

12

Cub Cadet MA-F1540108016

Bolt

$

$

Not available

13

Base, Filter

Note: Not used on this product

$

$

Not available

14

Cub Cadet MA-19642508AG0

Bracket

$

$

Not available

15

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

16

Cub Cadet MA-F1550110020

Bolt

$

$

Not available

17

Cub Cadet MA-19642509000

Filter

$114.99

$

In Stock, only 1 left!

0

18

Cub Cadet MA-F3010108001

Nut

$

$

Not available

19

Cub Cadet MA-19682511AG0

Pipe C, Suction

$

$

Not available

19A

Pipe D, Suction

Note: Not used on this product

$

$

Not available

20

Cub Cadet MA-08300100200

O-Ring

$

$

Not available

21

Bolt

Note: Not used on this product

$

$

Not available

22

Cub Cadet MA-F1440106045

Bolt

$

$

Not available

23

Cub Cadet MA-11762527000

Hose

$

$

Not available

24

Cub Cadet MA-HA230101000

Clip, Hose

$9.99

$

Usually ships in 3-6 days

0

26

Cub Cadet MA-19672514AG0

Joint

$

$

Not available

27

Cub Cadet MA-19672516000

Bolt Eye

$

$

Not available

28

Cub Cadet MA-08331002200

Seal Washer

$

$

Not available

29

Cub Cadet MA-19642506AG0

Base, Filter

$

$

Not available

33

Cub Cadet MA-19672515000

Hose

$

$

Not available

34

Cub Cadet MA-00501100280

Clamp, Hose

$

$

Not available

35

Cub Cadet MA-19682517AG0

Pipe A, Press.Ass'y.

$

$

Not available

35A

Pipe B, Press.Ass'y.

Note: Not used on this product

$

$

Not available

36

Body (Elbow)

Note: Not used on this product

$

$

Not available

37

Joint

Note: Not used on this product

$

$

Not available

38

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

39

Cub Cadet MA-08301100180

O-Ring

$

$

Not available

40

Cub Cadet MA-F1440106040

Bolt

$

$

Not available

41

Cub Cadet MA-06203115171

Body (Nipple)

$38.99

$

Usually ships in 3-6 days

0

42

Bolt

Note: Not used on this product

$

$

Not available

43

Cub Cadet MA-A0540108070

Bolt

$

$

Not available

44

Pipe

Note: Not used on this product

$

$

Not available
