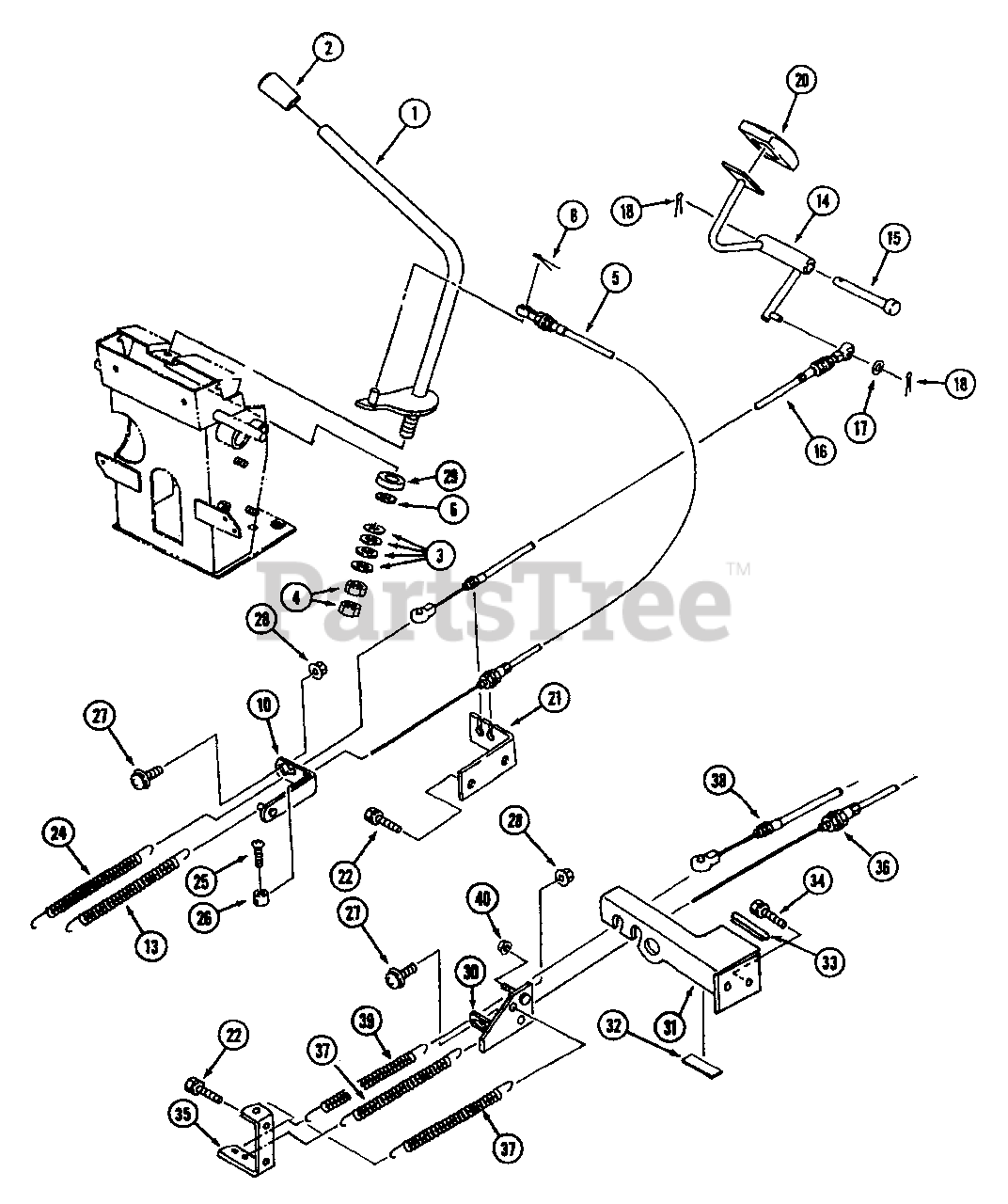

7265 (54A-445D100) - Cub Cadet Compact Tractor Engine Control Gear Drive 726 Parts Diagram

Compact Tractor

Engine Control Gear Drive 726 Parts Diagram

  • Title

1

Cub Cadet MA-19680211AG0

Lever, Accel.

$

$

Not available

2

Cub Cadet MA-06910012258

Grip

$

$

Not available

3

Cub Cadet MA-36105725100

Spring

$

$

Not available

4

Cub Cadet MA-A3030112002

Nut

$

$

Not available

5

Wire, Accelerator

Note: Not used on this product

$

$

Not available

6

Cub Cadet MA-31212559000

Liner
(Superseded to MA-36301208000)

$

$

Not available

8

Cub Cadet MA-05200125016

Pin, Split
(Superseded to MA-05200125015)

$

$

Not available

10

Joint

Note: Not used on this product

$

$

Not available

13

Spring

Note: Not used on this product

$

$

Not available

14

Cub Cadet MA-19630221000

Pedal, Accel.

$

$

Not available

15

Cub Cadet MA-27904116000

Pin

$

$

Not available

16

Wire, Accelerator

Note: Not used on this product

$

$

Not available

17

Cub Cadet MA-03500130613

Washer

$

$

Not available

18

Cub Cadet MA-05200125016

Pin, Split
(Superseded to MA-05200125015)

$

$

Not available

20

Cub Cadet MA-10320228000

Cover, Pedal

$

$

Not available

21

Plate

Note: Not used on this product

$

$

Not available

22

Cub Cadet MA-F1440106016

Bolt

$

$

Not available

24

Spring

Note: Not used on this product

$

$

Not available

25

Screw

Note: Not used on this product

$

$

Not available

26

Nut

Note: Not used on this product

$

$

Not available

27

Cub Cadet MA-H2420106012

Screw

$

$

Not available

28

Cub Cadet MA-F3000106000

Nut

$

$

Not available

29

Cub Cadet MA-19680212000

Lining, Brake

$

$

Not available

30

Cub Cadet MA-19670211000

Plate

$

$

Not available

31

Cub Cadet MA-19670213000

Bracket

$

$

Not available

32

Cub Cadet MA-35183318000

Rubber

$

$

Not available

33

Cub Cadet MA-35404766000

Rubber

$

$

Not available

34

Cub Cadet MA-F1540108016

Bolt

$

$

Not available

35

Cub Cadet MA-19670215000

Plate

$

$

Not available

36

Cub Cadet MA-19670217000

Wire, Accelerator

$

$

Not available

37

Cub Cadet MA-35236834000

Spring

$10.99

$

Usually ships in 3-6 days

0

38

Cub Cadet MA-19670219000

Wire, Accelerator

$59.99

$

Usually ships in 3-6 days

0

39

Cub Cadet MA-35013176000

Spring

$

$

Not available

40

Cub Cadet MA-F3000106000

Nut

$

$

Not available
