7264 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) MODEL D-601 ENGINE: MODEL USED ON: 7264 Parts Diagram

Walk-Behind Mower

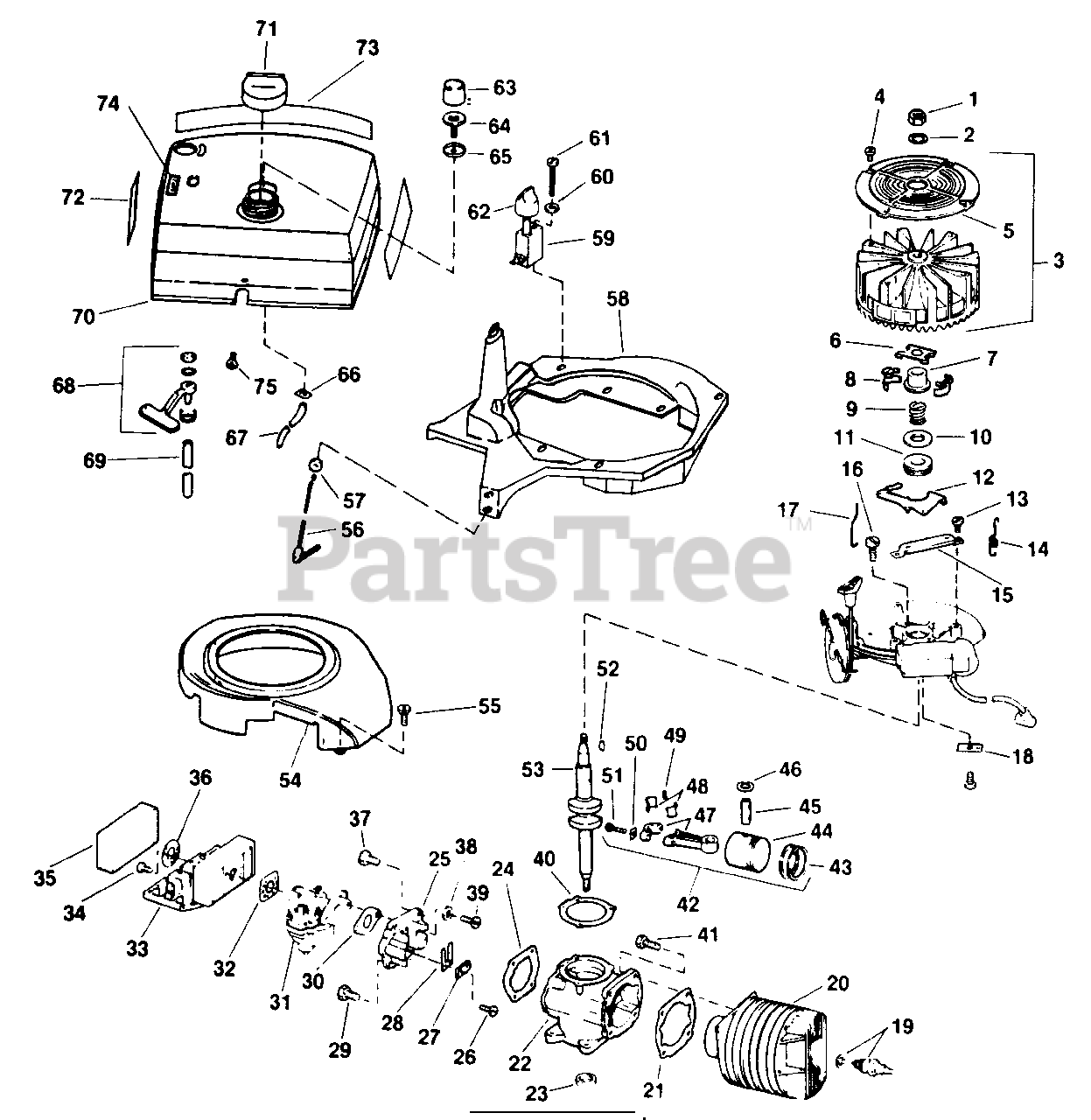

MODEL D-601 ENGINE: MODEL USED ON: 7264 Parts Diagram

  • Title

1

Lawn-Boy 130743

Nut

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$2.99

$

In Stock, Qty 6

0

2

Lawn-Boy 304161

Lockwasher

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

3

Lawn-Boy 681011

Flywheel & Screen Assy.

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

4

Lawn-Boy 606537

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$2.49

$

In Stock, only 4 left!

0

5

Lawn-Boy 607582

Screen

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

Lawn-Boy 679920

Governor Assembly

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

6

Lawn-Boy 602635

Yoke

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

7

Lawn-Boy 602634

Collar

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$21.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 602636

Weight

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

9

Lawn-Boy 604269

Spring

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$7.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 604413

Thrust Washer

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

11

Lawn-Boy 607872

Collar
(Superseded to 609729)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$8.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 604266

Lever

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$8.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 604344

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

14

Lawn-Boy 607528

Spring

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

15

Lawn-Boy 607530

Bracket

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

16

Lawn-Boy 604857

Screw-Arm. Plt. to Crankcase

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$6.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 607529

Rod

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$37.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 607538

Tab

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

19

Spark Plug Champion CJ-14 .035" Gap

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40. Not sold individually; sold only in prepacked quantities of 20, Part Number 679743.

$

$

Not available

20

Lawn-Boy 679672

Cylinder

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

21

Lawn-Boy 604116

Gasket

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40. Gasket Set #678071

$3.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 679687

Crankcase & Seal

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

23

Lawn-Boy 605020

Seal
(Superseded to 611396)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$5.99

$

In Stock, Qty 5

0

24

Lawn-Boy 608362

Gasket

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40. Gasket Set #678071

$4.49

$

In Stock, Qty 9

0

25

Lawn-Boy 681206

Reed Plate Assembly

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

26

Lawn-Boy 303761

Screw-Reed to Plate
(Superseded to 612872)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$2.49

$

In Stock, Qty 5

0

27

Lawn-Boy 602587

Plate

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$2.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 602588

Reed

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

29

Lawn-Boy 604857

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$6.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 602052

Gasket

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40. Gasket Set #678071

$3.49

$

In Stock, Qty 18

0

31

Lawn-Boy 679710

Carburetor

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

32

Lawn-Boy 607577

Gasket

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$2.99

$

In Stock, only 4 left!

0

33

Lawn-Boy 607578

Case-Air Filter

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$30.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 602775

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

35

Lawn-Boy 607580

Element

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$4.99

$

In Stock, Qty 9

0

36

Lawn-Boy 607579

Washer

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$2.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 602192

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$8.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 605076

Washer

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

39

Lawn-Boy 511328

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

40

Lawn-Boy 602763

Gasket

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40. Gasket Set #678071

$1.99

$

In Stock, only 1 left!

0

41

Lawn-Boy 602657

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

42

Lawn-Boy 679155

Piston & Connecting Rod Assembly
(Superseded to 682864)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

43

Lawn-Boy 679252

Ring Set

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

44

Lawn-Boy 606607

Piston

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

45

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$9.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 303712

Retaining Ring

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$2.99

$

In Stock, Qty 11

0

47

Lawn-Boy 679156

Connecting Rod & Bearings
(Superseded to 682865)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

48

Lawn-Boy 677982

Liners

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$40.99

$

In Stock, only 2 left!

0

49

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$23.99

$

In Stock, Qty 5

0

50

Lawn-Boy 307558

Lockplate
(Superseded to 307578)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

51

Lawn-Boy 603976

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

52

Lawn-Boy 607199

Key

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$4.99

$

In Stock, Qty 9

0

53

Lawn-Boy 607539

Crankshaft

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

54

Lawn-Boy 609050

Air Baffle

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$55.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 608997

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$1.99

$

In Stock, only 2 left!

0

56

Lawn-Boy 681217

Knob & Rod

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

57

Lawn-Boy 608820

Grommet

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

58

Lawn-Boy 681223

Shroud-Base

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

59

Lawn-Boy 681220

Shorting Switch

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

60

Lawn-Boy 607875

Washer

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

61

Lawn-Boy 308777

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

62

Lawn-Boy 679621

Knob

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

63

Lawn-Boy 607310

Bulb-Primer
(Superseded to 610482)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

64

Lawn-Boy 607311

Base-Primer

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

65

Lawn-Boy 607844

Cap-Primer

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

66

Lawn-Boy 608027

Fastener-Primer Base

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$1.99

$

In Stock, Qty 6

0

67

Lawn-Boy 607575

Gas Line
(Superseded to 44-3173)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$4.99

$

In Stock, only 1 left!

0

68

Lawn-Boy 681524

Fuel Shut-off Assy.

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

69

Lawn-Boy 607581

Fuel Hose
(Superseded to 112-7048)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$6.99

$

Usually ships in 3-6 days

0

70

Lawn-Boy 681511

Shroud-Tank Engine

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

71

Lawn-Boy 681214

Fuel Cap

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

72

Lawn-Boy 609230

Decal

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

73

Lawn-Boy 609211

Decal-Lawn-Boy

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

74

Lawn-Boy 608951

Decal-Caution

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

75

Lawn-Boy 608997

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$1.99

$

In Stock, only 2 left!

0
