7264 (54AT746-100) - Cub Cadet Compact Tractor PTO Drive Version 2 Parts Diagram

Compact Tractor

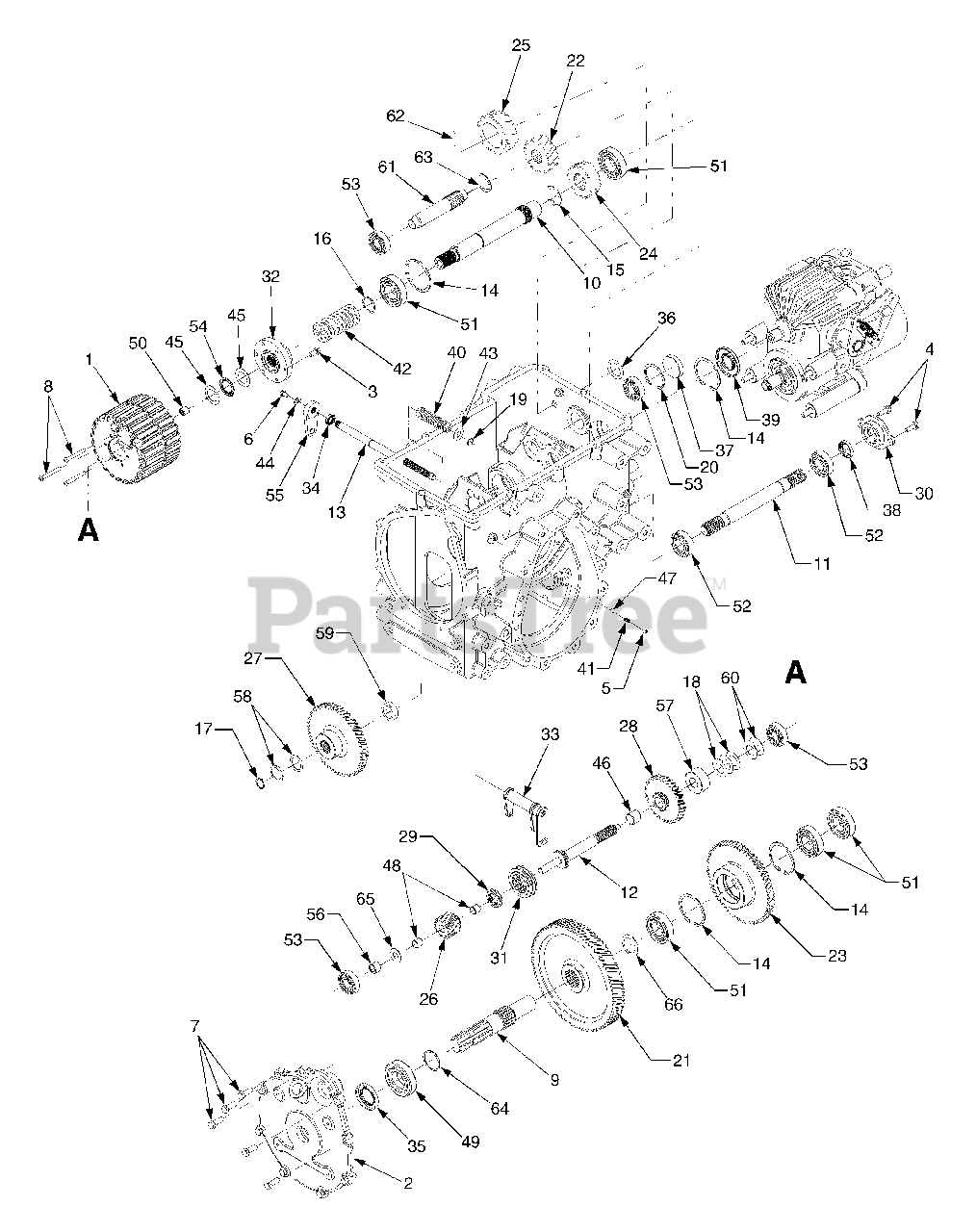

PTO Drive Version 2 Parts Diagram

  • Title

1

Cub Cadet 618-3189

Clutch Assembly, PTO

$

$

Not available

2

Cub Cadet 619-3076B

Housing, Rear
(Superseded to 919-3076B)

$

$

Not available

3

Cub Cadet 710-0751

Screw, Hex Cap Lock, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

Screw, Hex Wash Hd, 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3006

Screw, Cup Set, 5/16-18 x 3/8

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-3118

Screw, Hex Cap Lock, 3/8-16 x 1.0 GR5

$5.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04003A

Screw, Round Hd, 6mm x 40mm

$8.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-1325A

Shaft, 540 PTO
(Superseded to 911-1325A)

$

$

Not available

10

Cub Cadet 911-04390

Shaft, PTO Input

Note: (used with wider auxiliary pump gears)

$267.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-1345

Shaft, 2000 PTO

$

$

Not available

12

Cub Cadet 711-1371

Shaft, PTO Back

$

$

Not available

13

Cub Cadet 711-1373

Shaft, PTO Actuator

$

$

Not available

14

Cub Cadet 716-0180

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 716-0200

Ring, Retaining

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 716-0201

Ring, Retaining

$5.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 716-0384

Ring, Retaining

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0563

Washer, Flat, .793 x 1.368 x .01

Note: (As required)

$13.99

$

In Stock, only 1 left!

0

19

Cub Cadet 716-0397

Ring, Retaining

$

$

Not available

20

Cub Cadet 716-0393

Ring, Retaining

$

$

Not available

21

Cub Cadet 717-3469

Gear, 540 PTO: 81T

$

$

Not available

22

Cub Cadet 717-04201

Gear, Wide, Auxiliary Drive Idler: 28T
(Superseded to 917-04201)

$

$

Not available

23

Cub Cadet 717-3487

Gear, 2000 PTO: 61T

$

$

Not available

24

Cub Cadet 717-04189

Gear, Wide, Auxiliary Drive Pinion: 28T
(Superseded to 917-04189)

$

$

Not available

25

Cub Cadet 717-3491A

Gear, Wide, Auxiliary Drive: 32T
(Superseded to 917-3491A)

$

$

Not available

26

Cub Cadet 717-3492

Gear, 540 PTO Pinion: 14T

$

$

Not available

27

Cub Cadet 717-3494C

Gear, 2000 PTO Pinion: 54T

$

$

Not available

28

Cub Cadet 717-3500

Gear, 2000 PTO Pinion: 34T

$

$

Not available

29

Cub Cadet 718-0668

Gear, Spline Coupling

$

$

Not available

30

Cub Cadet 718-0681

Cover, 2000 PTO

$

$

Not available

31

Cub Cadet 718-3116

Collar, 2 Speed

$88.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 718-3134

Coupling, PTO

$

$

Not available

33

Cub Cadet 719-0551A

Actuator, PTO
(Superseded to 919-0551A)

$76.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 721-0496

Seal, Oil

$10.99

$

In Stock, only 2 left!

0

35

Cub Cadet 721-04125

Seal, Oil
(Superseded to 921-04125)

$

$

Not available

36

Cub Cadet 721-0500

O-Ring

$

$

Not available

37

Cub Cadet 721-0504

Plug, Oil

$

$

Not available

38

Cub Cadet 721-0509

Seal, Oil

$

$

Not available

39

Cub Cadet 721-3020A

Seal, Oil
(Superseded to 921-3020A)

$12.99

$

In Stock, Qty 17

0

40

Cub Cadet 732-0187

Spring, Compression

$2.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 732-04101

Spring, Detent
(Superseded to 932-04101)

$15.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 732-0980

Spring, Compression

$

$

Not available

43

Cub Cadet 736-0355

Washer, Flat, .56 x 1.0 x .040

$4.49

$

In Stock, Qty 12

0

44

Cub Cadet 736-0463

Washer, Flat, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

45

Cub Cadet 736-0615

Washer, Thrust, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 2 left!

0

46

Cub Cadet 741-0724

Bearing, Sleeve, 20mm x 23mm x 20mm

$

$

Not available

47

Cub Cadet 741-0862

Ball, Detent

$4.49

$

In Stock, only 1 left!

0

48

Cub Cadet 741-0991

Bearing, Sleeve, 13mm x 15mm x 10mm

$14.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 741-1100

Bearing, Ball

$36.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 741-1118

Bearing, Needle

$19.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 741-3033A

Bearing, Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 7

0

52

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

53

Cub Cadet 741-3057

Bearing, Ball
(Superseded to 941-3057)

$38.99

$

In Stock, Qty 10

0

54

Cub Cadet 741-3083

Bearing, Needle Thrust

$16.99

$

In Stock, only 1 left!

0

55

Cub Cadet 748-3094

Arm, PTO Select

$

$

Not available

56

Cub Cadet 750-1223

Spacer, 13mm x 20mm x 14mm

$

$

Not available

57

Cub Cadet 750-1228

Spacer, .80 x 1.85 x .855

$

$

Not available

58

Cub Cadet 736-0570

Washer, Flat, .865 x 1.145 x .03
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 750-04422

Spacer, 1.0 x 1.25 x .39

$

$

Not available

60

Cub Cadet 736-0566

Washer, Flat, .793 x 1.368 x .025

Note: (As required)

$6.99

$

In Stock, Qty 13

0

61

Cub Cadet 711-04413

Shaft, Aux. Idler
(Superseded to 911-04413)

$

$

Not available

62

Cub Cadet 714-04041

Pin, Cotter, 1/16 x .5

$

$

Not available

63

Cub Cadet 716-04048

Ring, Retaining 'E'

$

$

Not available

64

Cub Cadet 716-04049

Ring, Retaining
(Superseded to 916-04049)

$10.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 736-0369

Washer, Shim, .508 x 1.0 x .020

Note: (As required)

$4.49

$

In Stock, Qty 8

0

66

Cub Cadet 736-3105A

Washer, Shim, 1.25 x 1.8 x .020

Note: (As required)

$11.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 736-3126

Washer, Shim, 1.25 x 1.8 x .005

Note: (As required)

$

$

Not available

66

Cub Cadet 736-3127

Washer, Shim, 1.25 x 1.8 x .010
(Superseded to 936-3127)

Note: (As required)

$6.99

$

In Stock, Qty 9

0
