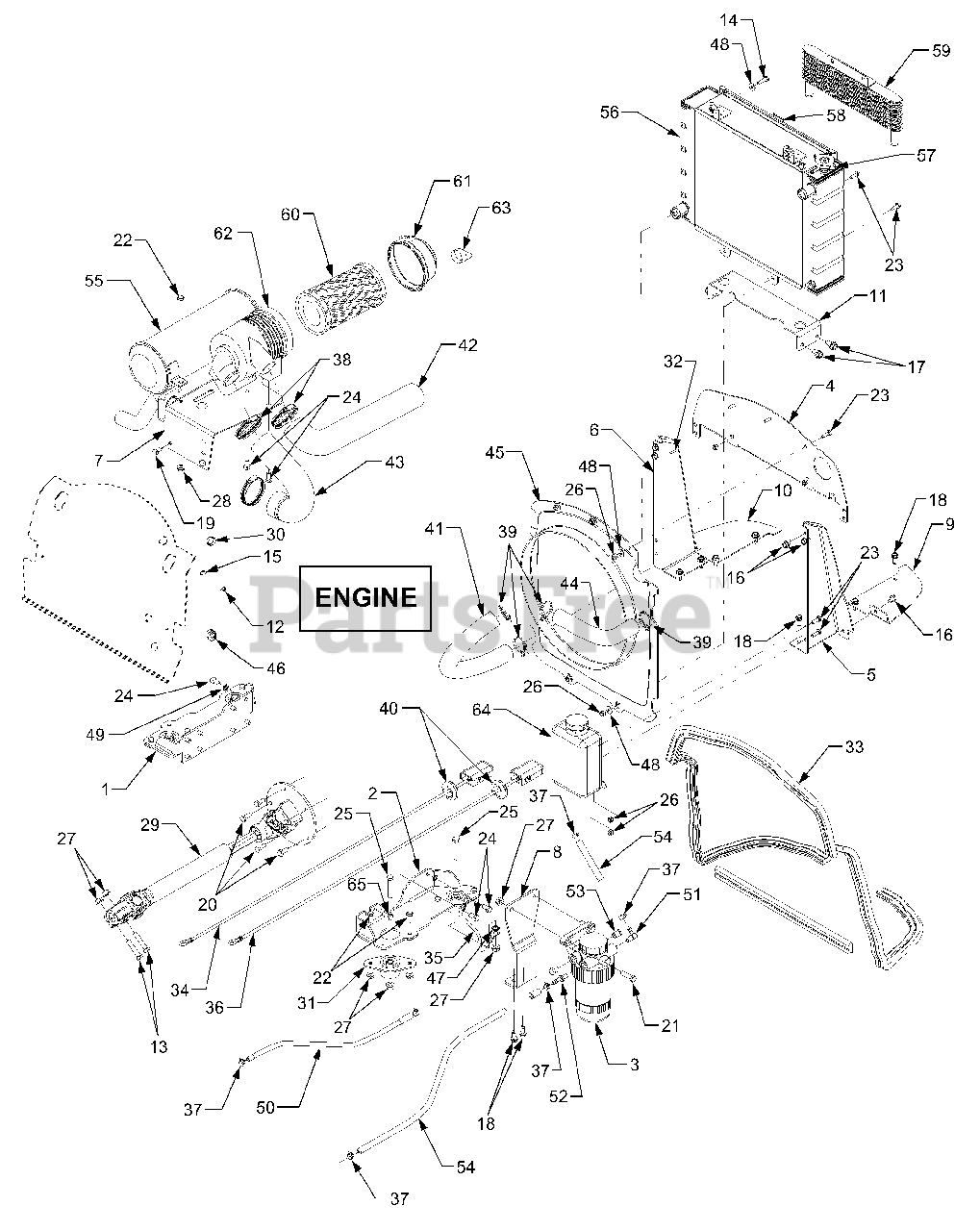

7264 (54AD746-100) - Cub Cadet Compact Tractor Engine Connections Parts Diagram

Compact Tractor

Engine Connections Parts Diagram

  • Title

Cub Cadet 629-3062

Harness, Engine Wire
(Superseded to 929-3062B)

Note: Not Shown

$

$

Not available

1

Cub Cadet 603-0744-0637

Bracket, Engine LH

$

$

Not available

2

Cub Cadet 603-0745-0637

Bracket, Engine RH

$

$

Not available

3

Cub Cadet 651-0007

Filter Assembly, Fuel

$235.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-04009

Filter Element

$83.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-3483

Plate, Radiator Baffle

$

$

Not available

Cub Cadet 777S30631

Graphic, Fan Warning

$

$

Not available

Cub Cadet 777S30633

Graphic, Warning

$

$

Not available

5

Cub Cadet 703-3484

Bracket, Radiator Mtg. RH

$

$

Not available

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

6

Cub Cadet 703-3485

Bracket, Radiator Mtg. LH

$

$

Not available

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

7

Cub Cadet 703-3486

Bracket, Muffler Mtg

$

$

Not available

8

Cub Cadet 703-3603A

Bracket, Fuel Filter Mtg
(Superseded to 703-3603A-0637)

Variations

Cub Cadet 703-3603A-0637

BRACKET-FUEL FILTER - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-3739

Plate, Baffle RH

$

$

Not available

10

Cub Cadet 703-3740

Plate, Baffle, LH

$

$

Not available

11

Cub Cadet 703-3741

Bracket, Radiator Mtg.

$

$

Not available

12

Cub Cadet 710-0224

Screw, Hex Wash Hd Tapp 10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0597

Screw, Hex Cap 1/4-20 x 1.0 GR5

$3.99

$

In Stock, Qty 14

0

15

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

17

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-1376

Screw, Hex Cap, M8-1.25 x 16

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-1681

Screw, Hex Cap, M8-1.25 x 20

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1/25 GR5

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3015

Screw, Hex Cap 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-3138

Screw, Hex Cap,I M8-1.25 x 16

$6.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-3144

Screw, Hex Cap 3/8-16 x 2/0 GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

27

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 717-3524

Shaft, Drive

$581.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 720-0425

Plug, Cap

$

$

Not available

31

Cub Cadet 722-0262

Mount, Neoprene Engine

$58.99

$

In Stock, only 1 left!

0

32

Cub Cadet 722-3022

Tape, Foam, .625 wide
(Superseded to 722-3022A-12)

Note: 42in.

$18.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 723-3061

Seal, Heat Baffle

Note: 96in.

$2.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 725-3281

Wire, Battery Pos.

$38.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 725-3283

Wire, Ground

$22.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 725-3287

Wire, Battery Neg

$

$

Not available

37

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 726-0476

Clamp, Adjustable Hose

$12.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 726-0480

Clamp, Hose

$

$

Not available

40

Cub Cadet 731-04018

Grommet, Hose Guard

$

$

Not available

41

Cub Cadet 731-3304

Hose, Radiator to Engine
(Superseded to 731-3304A)

$

$

Not available

42

Cub Cadet 731-3348

Hose, Air Filter

$

$

Not available

43

Cub Cadet 731-3349

Hose, Air Inlet

$

$

Not available

44

Cub Cadet 731-3350

Hose, Engine to Radiator

$

$

Not available

45

Cub Cadet 731-3363

Shroud, Fan

$

$

Not available

46

Cub Cadet 735-0226

Grommet, Rubber

$10.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0148

Washer, External Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0607

Washer, External Lock, 5/16

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 751-0535

Hose, Fuel Line

Note: 92in.

$

$

Currently unavailable

51

Cub Cadet 751-0822

Fitting, 90 Degree Hose

$

$

Not available

52

Cub Cadet 751-0823

Fitting, Straight Hose

$

$

Not available

53

Cub Cadet 751-3001

Plug, Drain

$

$

Not available

54

Cub Cadet 751-3130

Fuel Line, 5/16 ID

Note: 92in.

$32.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 751-3163

Muffler, Engine

$

$

Not available

56

Cub Cadet 751-3165

Radiator

$

$

Not available

Cub Cadet 722-0268

Grommet, Rubber Mtg.

$

$

Not available

57

Cub Cadet 751-3192

Cap, Radiator, 13psi
(Superseded to 759-04129)

$50.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 751-3193

Screen, Debris

$

$

Not available

59

Cub Cadet 718-3132

Cooler, Oil
(Superseded to 918-3132)

$

$

Not available

60

Cub Cadet 751-3194

Element, Air Cleaner

$52.99

$

In Stock, only 2 left!

0

61

Cub Cadet 751-3195

Cap, Air Cleaner

$53.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 751-3196

Cannister, Air Cleaner

$

$

Not available

63

Cub Cadet 751-3197

Nozzle, Air Cleaner

$37.99

$

In Stock, only 4 left!

0

64

Cub Cadet BS-825462

Bottle, Overflow

$108.99

$

Usually ships in 2-12 days

0

65

Cub Cadet 710-3206A

Screw, Hx Cap, M8-1.25:25 GR8

$3.99

$

In Stock, Qty 13

0
