7264 (54AB746-100) - Cub Cadet Compact Tractor Hood, Grill And Side Panels Parts Diagram

Compact Tractor

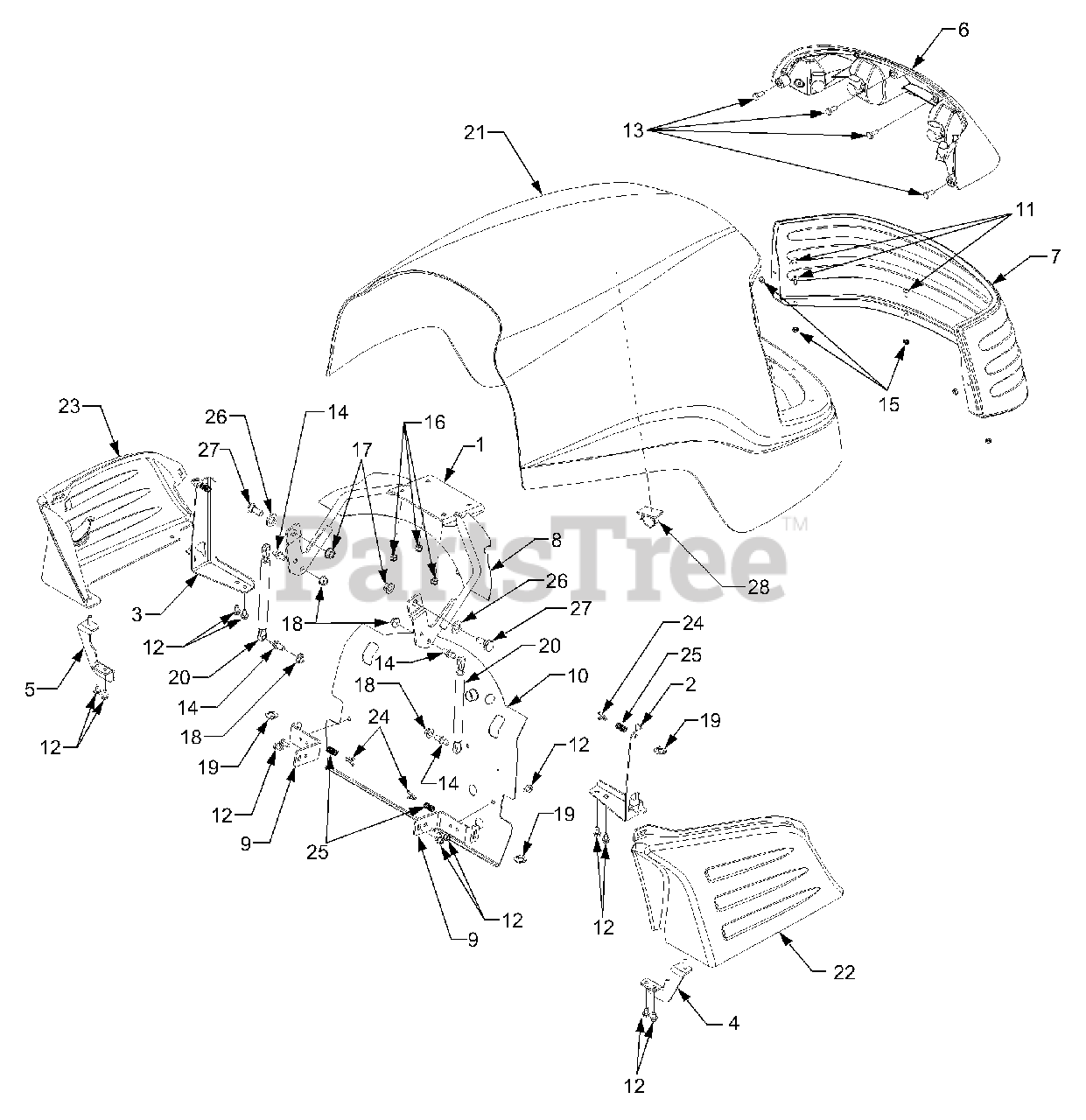

Hood, Grill And Side Panels Parts Diagram

  • Title

1

Cub Cadet 603-0719-0637

Hinge Assembly, Hood
(Superseded to 603-0719A-0637)

$

$

Not available

2

Cub Cadet 603-0784-0637

Bracket, Side Panel Mtg. RH

$

$

Not available

3

Cub Cadet 603-0785-0637

Bracket, Side Panel Mtg. LH

$

$

Not available

4

Cub Cadet 603-0924-0637

Bracket, Side Panel Mtg. RH Rear

$

$

Not available

5

Cub Cadet 603-0925-0637

Bracket, Side Panel Mtg. LH Rear

$

$

Not available

6

Cub Cadet 625-0052

Headlight Assembly

$

$

Not available

6

Cub Cadet 725-3161A

Bulb, Headlight
(Superseded to 925-3161A)

Note: Not shown

$52.99

$

In Stock, only 2 left!

0

7

Cub Cadet 703-3394

Screen, Intake
(Superseded to 703-3394-0637)

Variations

Cub Cadet 703-3394-0637

SCREEN-INTAKE - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 703-3712

Shield, Upper Heat

$

$

Not available

9

Cub Cadet 703-3764

Bracket, Panel Mtg.

$

$

Not available

10

Cub Cadet 703-3765

Shield, Lower Heat

$

$

Not available

11

Cub Cadet 710-0473

Screw, Truss Hd, 10-24 x .5

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3170

Stud, Cylinder, 5/16-18 Thrd

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0272

Nut, Hex Sems, 10-24

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 712-0324

Nut, Hex Nylon Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 17

0

17

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 726-3056

Latch, 1/4 Turn Panel

$7.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 727-3194

Cylinder, Gas Spring

$120.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 759-04113A

Hood, Service Kit

Note: Replaces 731-3277, Refer to diagram Hood 759-04113A

$

$

Not available

21

Cub Cadet 731-06889

Hood
(Superseded to 759-04210)

Note: Replaces 731-3277

$

$

Not available

21

Cub Cadet 777D05419

Graphic, Hood RH

Note: Not shown

$

$

Not available

21

Cub Cadet 777D05420

Graphic, Hood LH

Note: Not shown

$

$

Not available

21

Cub Cadet 777D06176

Graphic, Model 7264 Posi Trak LH

Note: Not shown

$

$

Not available

21

Cub Cadet 777D06177

Graphic, Model 7264 Posi Trak RH

Note: Not shown

$

$

Not available

22

Cub Cadet 731-3278

Panel, Side RH

$

$

Not available

23

Cub Cadet 731-3279

Panel, Side LH

$

$

Not available

24

Cub Cadet 732-0936

Clip, Spring
(Superseded to 726-05561)

$

$

Not available

25

Cub Cadet 732-0937

Spring, Compression

$8.49

$

In Stock, only 2 left!

0

26

Cub Cadet 736-0272

Washer, Flat, .510 x .1.0 x .060

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 738-0380

Screw, Shoulder, .5 x .27 Lg 3/8-16

$7.99

$

In Stock, only 1 left!

0

28

Cub Cadet 726-04010

Clip, Retaining

$

$

Not available
