726019 - Ariens Track Conversion Kit Track Conversion Parts Diagram

Track Conversion Kit

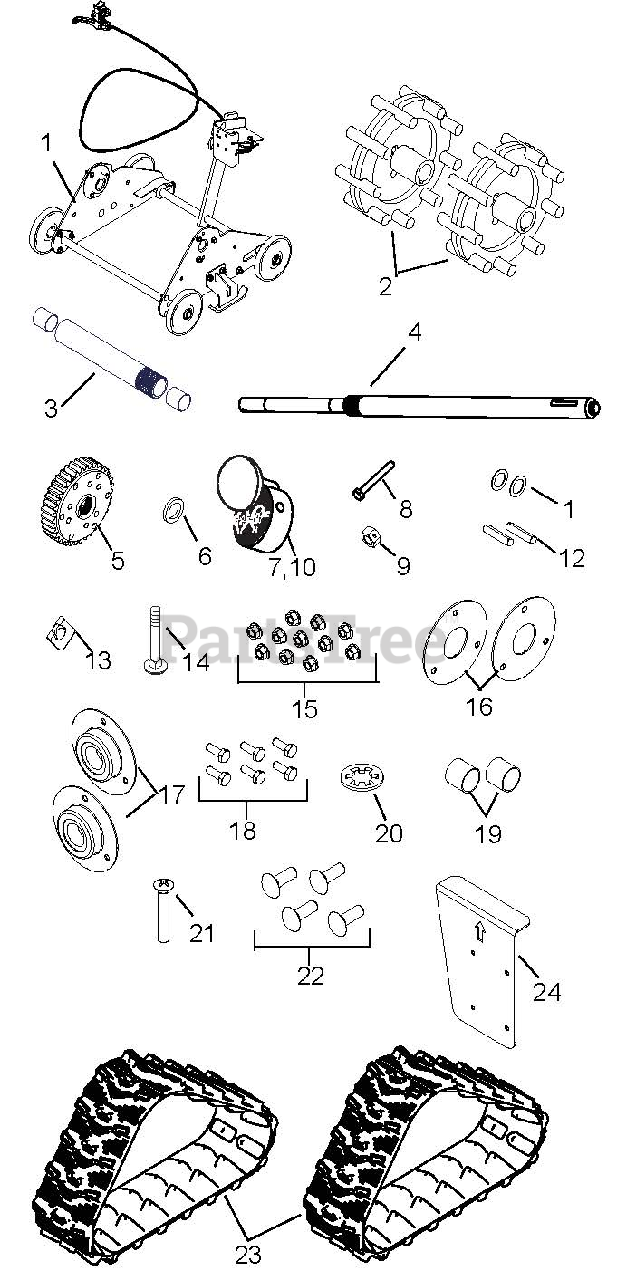

Track Conversion Parts Diagram

  • Title

1

Ariens N/A

Note: TRACK CARRIAGE ASSEMBLY

$

$

Currently unavailable

2

Ariens 00670351

WHEEL, DRIVE-TRACK

$245.99

$

Usually ships in 4-12 days

0

3

Ariens 52604200

AXLE, SHORT-TRACK W/BUSHINGS

$69.99

$

Usually ships in 4-12 days

0

4

Ariens 00661400

AXLE, LONG-TRACK DIFFERENTIAL

$111.99

$

Usually ships in 4-12 days

0

5

Ariens 52604000

DIFFERENTIAL, AXLE LOCK

$230.99

$

Usually ships in 4-12 days

0

6

Ariens 06400012

WSHR-FL-NY 1.38X2.00X.25

$5.99

$

In Stock, only 1 left!

0

7

Ariens 52605000

HUB, LOCKOUT-ASSEMBLY

$113.99

$

Usually ships in 4-12 days

0

8

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07864400

DIFFERENTIAL LOCK DECAL

$28.99

$

Usually ships in 4-12 days

0

11

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

13

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 1 left!

0

15

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 03389051

PLATE, BEARING SPACER
(Superseded to 04796351)

$

$

Not available

17

Ariens 05400706

BRG-FLG 1.003/1.000 3 BOLT
(Superseded to 05400723)

$43.99

$

In Stock, Qty 20+

0

18

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 20+

0

20

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 4 left!

0

22

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 00669700

TRACK, RUBBER

$182.99

$

Usually ships in 4-12 days

0

24

Ariens 04399100

DRILL TEMPLATE

$

$

Currently unavailable
