7260 C - Lawn-Boy Walk-Behind Mower (SN: 400000001 - 499999999) (1974) Model 1015 Edger Trimmer Parts List Parts Diagram

Walk-Behind Mower

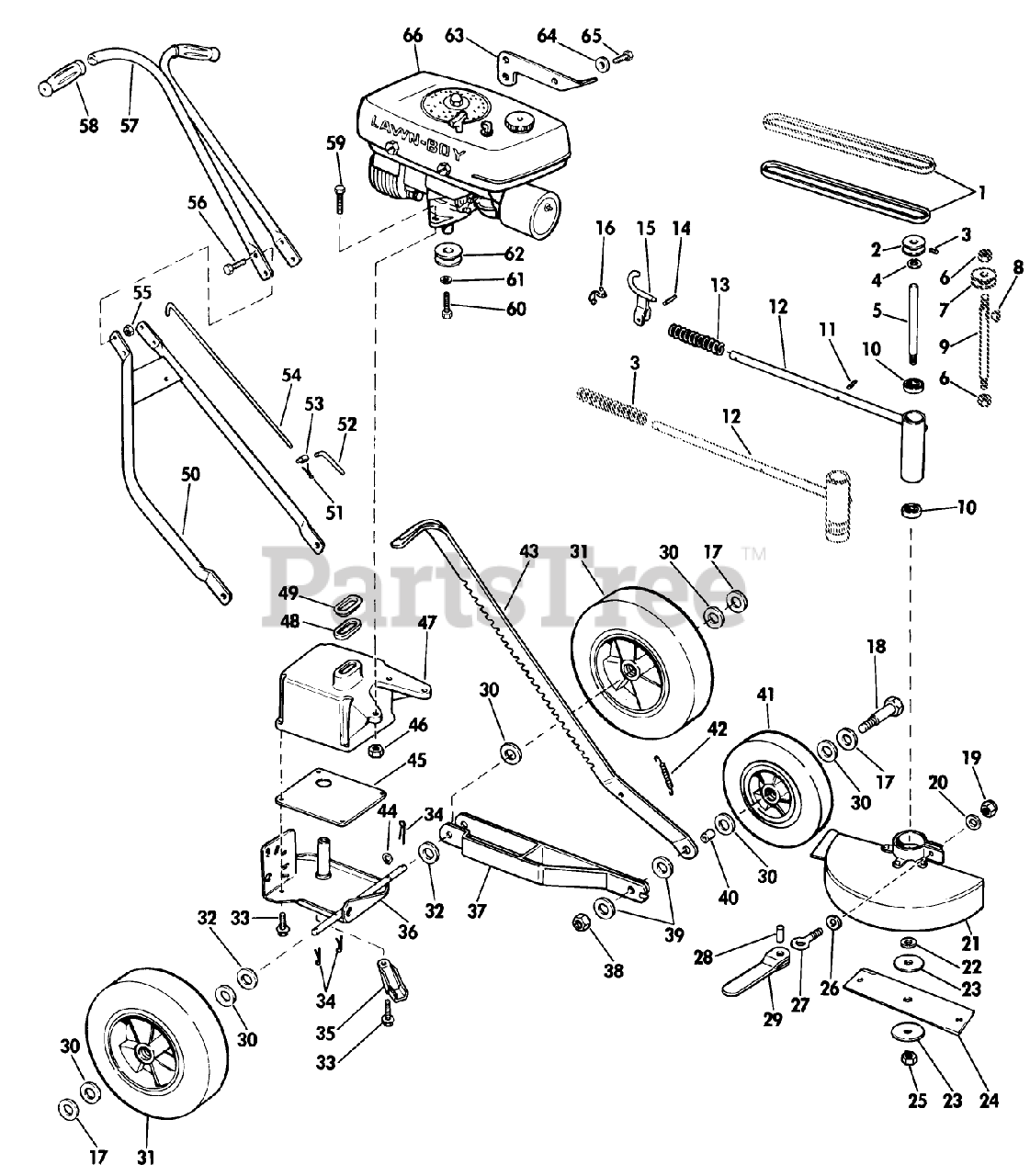

Model 1015 Edger Trimmer Parts List Parts Diagram

  • Title

1

Lawn-Boy 603682

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

1

Lawn-Boy 607198

DISCONTINUED

Note: Later Production Models

$

$

Not available

1

Lawn-Boy 607198

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

2

Lawn-Boy 603681

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

3

Lawn-Boy 603339

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

4

Lawn-Boy 603931

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

5

Lawn-Boy 603685

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

6

Lawn-Boy 603948

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

7

Lawn-Boy 607142

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

8

Lawn-Boy 306399

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

9

Lawn-Boy 607143

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

9

Lawn-Boy 607143

DISCONTINUED

Note: Later Production Models

$

$

Not available

10

Lawn-Boy 603686

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

11

Lawn-Boy 306399

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

12

Lawn-Boy 677803

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

12

Lawn-Boy 679448

Spindle Housing Pivot Assy.

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Currently unavailable

12

Lawn-Boy 679448

Spindle Housing Pivot Assy.

Note: Later Production Models

$

$

Currently unavailable

13

Lawn-Boy 603689

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

13

Lawn-Boy 607194

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

13

Lawn-Boy 607194

DISCONTINUED

Note: Later Production Models

$

$

Not available

14

Lawn-Boy 603694

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

15

Lawn-Boy 677808

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

16

Lawn-Boy 603695

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

17

Lawn-Boy 605256

SPACER

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 602680

BOLT

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

19

Lawn-Boy 603796

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

20

Lawn-Boy 120196

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

21

Lawn-Boy 677850

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

22

Lawn-Boy 303259

WASHER

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$2.49

$

In Stock, Qty 8

0

23

Lawn-Boy 602145

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

24

Lawn-Boy 603687

Blade-9"

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Currently unavailable

25

Lawn-Boy 603948

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

26

Lawn-Boy 603620

WASHER WROUGHT

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$5.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 606014

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

28

Lawn-Boy 314469

Roll Pin

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Currently unavailable

29

Lawn-Boy 677851

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

30

Lawn-Boy 605255

WASHER

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$1.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 679293

See Supercession: 131-4520
(Superseded to 131-4520)

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$37.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 309076

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

33

Lawn-Boy 603476

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

34

Lawn-Boy 603036

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

35

Lawn-Boy 603970

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

36

Lawn-Boy 677807

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

37

Lawn-Boy 679015

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

38

Lawn-Boy 603773

LOCKNUT

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$2.99

$

In Stock, Qty 6

0

39

Lawn-Boy 602627

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

40

Lawn-Boy 604009

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

41

Lawn-Boy 679291

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

42

Lawn-Boy 602937

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

43

Lawn-Boy 606356

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

44

Lawn-Boy 603931

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

45

Lawn-Boy 603696

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

46

Lawn-Boy 608311

NUT-LOCK F

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$3.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 603697

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

48

Lawn-Boy 604624

GASKET S

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$11.99

$

In Stock, only 1 left!

0

49

Lawn-Boy 602717

SLEEVE

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$2.99

$

In Stock, Qty 16

0

50

Lawn-Boy 677809

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

51

Lawn-Boy 603036

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

52

Lawn-Boy 603699

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

53

Lawn-Boy 603680

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

54

Lawn-Boy 603698

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

55

Lawn-Boy 603477

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

56

Lawn-Boy 602480

SCREW

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

57

Lawn-Boy 677354

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

58

Lawn-Boy 604139

HANDLE GRIP

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$29.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 603014

BOLT F

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

60

Lawn-Boy 550000

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

61

Lawn-Boy 120177

WASHER, LOCK

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

62

Lawn-Boy 603688

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

63

Lawn-Boy 606355

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

64

Lawn-Boy 302474

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available

65

Lawn-Boy 552062

Screw

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Currently unavailable

66

See ENGINE, MAGNETO, STARTER CARBURETOR PARTS LIST MODELS USED ON: 1015

Note: A complete engine, part no. 679424, D-462 is available for replacement on this mower. See Parts List for replacement parts for this engine.

$

$

Not available

66

See ENGINE, MAGNETO, STARTER CARBURETOR PARTS LIST MODELS USED ON: 1015

Note: Painted, plastic, fiberglass replacement parts may not always be available in original matching colors.

$

$

Not available
