7260 (54A-435D100) - Cub Cadet Compact Tractor Rear Axle Parts Diagram

Compact Tractor

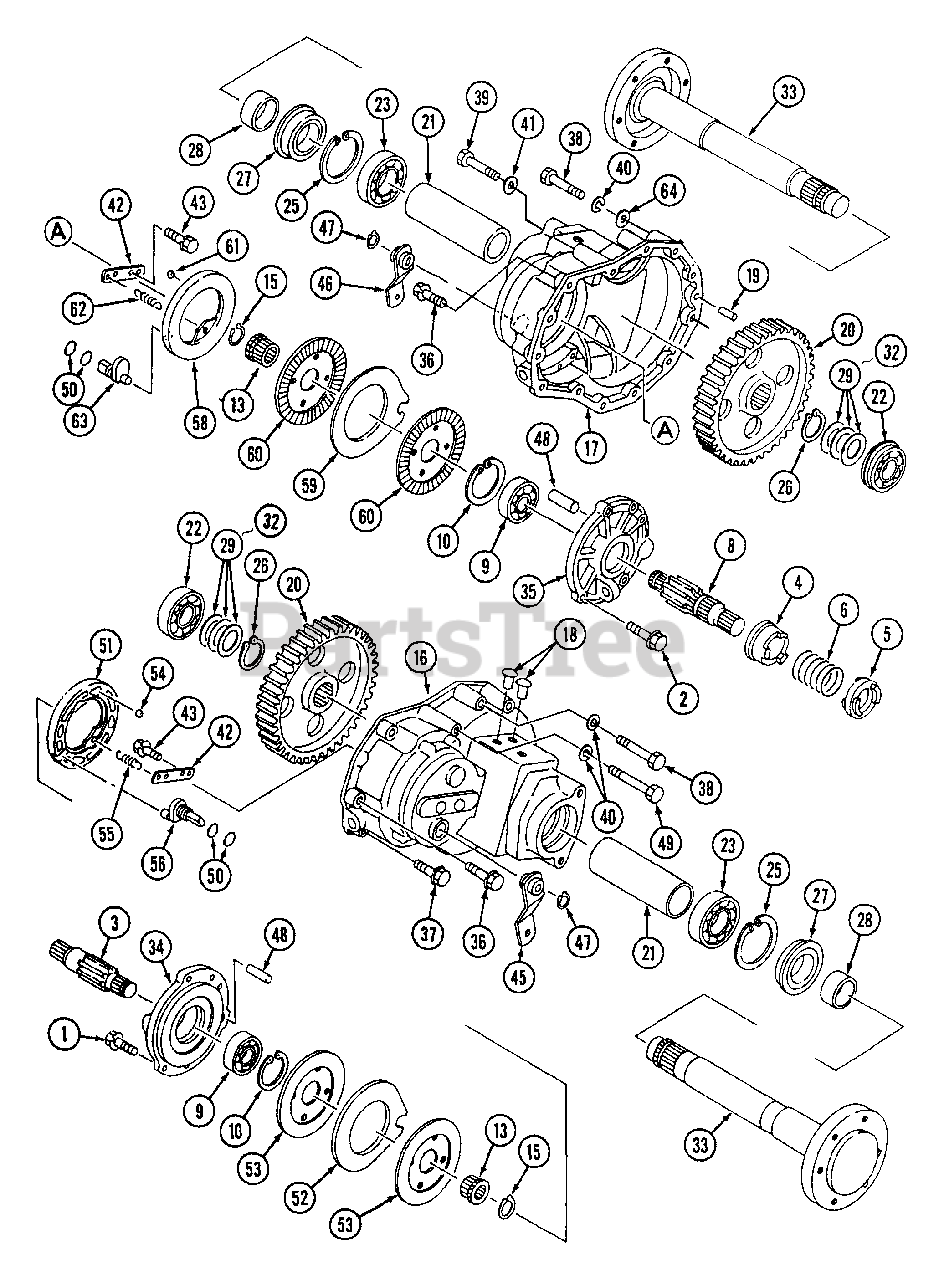

Rear Axle Parts Diagram

  • Title

1

Cub Cadet MA-F1550110030

Bolt

$4.49

$

In Stock, only 4 left!

0

2

UNKNOWN

$

$

Not available

3

Cub Cadet MA-19641511000

Shaft L.H.

$

$

Not available

4

Cub Cadet MA-19061519000

Sleeve

$

$

Not available

5

Cub Cadet MA-19061521000

Spacer

$

$

Not available

6

Cub Cadet MA-19061523000

Spring

$

$

Not available

8

Cub Cadet MA-19641512000

Shaft R.H.

$

$

Not available

9

Cub Cadet MA-07520663060

Bearing

$

$

Not available

10

Cub Cadet MA-07410007201

Ring

$

$

Not available

13

Cub Cadet MA-19641519000

Hub, Brake

$

$

Not available

15

Cub Cadet MA-07400003000

Ring

$

$

Not available

16

Cub Cadet MA-19641513AG1

Case L.H.

$

$

Not available

17

Cub Cadet MA-19641514AG1

Case R.H.

$

$

Not available

18

Cub Cadet MA-05534-14000

Plug

$

$

Not available

19

Cub Cadet MA-05401010020

Pin, Dowel

$2.49

$

In Stock, only 1 left!

0

20

Cub Cadet MA-19641517000

Gear, 68T

$

$

Not available

21

Cub Cadet MA-19641518000

Collar

$

$

Not available

22

Cub Cadet MA-07500063085

Bearing

$

$

Not available

23

Cub Cadet MA-07500062100

Bearing

$

$

Not available

25

Cub Cadet MA-07410009001

Ring

$

$

Not available

26

Cub Cadet MA-07400004801

Ring

$

$

Not available

27

Cub Cadet MA-08412579013

Seal, Oil

$

$

Not available

28

Cub Cadet MA-10211525000

SI-Sleeve

$68.99

$

Usually ships in 3-6 days

0

29

Cub Cadet MA-19071547000

Shim Set

Note: Includes Items 29 - 32

$

$

Not available

30

Cub Cadet MA-07300005202

Liner

$2.99

$

Usually ships in 3-6 days

0

31

Cub Cadet MA-07300005204

Liner

$

$

Not available

32

Cub Cadet MA-07300005206

Liner

$

$

Not available

33

Cub Cadet MA-19641516AG0

Shaft, Axle

$

$

Not available

34

Cub Cadet MA-19641524000

Holder L.H.

$

$

Not available

35

Cub Cadet MA-19641525000

Holder R.H.

$

$

Not available

36

Cub Cadet MA-F1540112040

Bolt

$

$

Not available

37

Cub Cadet MA-F1540112050

Bolt

$

$

Not available

38

Cub Cadet MA-A0540112080

Bolt

$

$

Not available

39

Cub Cadet MA-A9440112090

Bolt

$

$

Not available

40

Cub Cadet MA-A3600101202

Washer

$

$

Not available

41

Cub Cadet MA-03550161226

Washer

$

$

Not available

42

Cub Cadet MA-19641527000

Hook

$

$

Not available

43

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

45

Cub Cadet MA-19641528000

Lever, Brake L.H.

$

$

Not available

46

Cub Cadet MA-19641529000

Lever, Brake R.H.

$

$

Not available

47

Cub Cadet MA-07400002000

Ring

$

$

Not available

48

Cub Cadet MA-19641526000

Pin

$

$

Not available

49

Cub Cadet MA-A0540112100

Bolt

$

$

Not available

50

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

Cub Cadet MA-19641521000

Brake Ass'y. L.H.

Note: Includes Items 51-56, 45

$

$

Not available

51

Cub Cadet MA-10321501100

Plate, Cam

$

$

Not available

52

Cub Cadet MA-10301538000

Plate, Mating

$

$

Not available

53

Cub Cadet MA-10301537000

Disk

$

$

Not available

54

Cub Cadet MA-10321501400

Ball, Steel

$

$

Not available

55

Cub Cadet MA-10321501500

Spring, Return

$

$

Not available

56

Cub Cadet MA-35151468000

Cam, Brake

$

$

Not available

Cub Cadet MA-19641523000

Brake Ass'y. R.H.

Note: Includes Items 58-63, 46

$

$

Not available

58

Cub Cadet MA-10321502100

Plate, Cam

$

$

Not available

59

Cub Cadet MA-10301538000

Plate, Mating

$

$

Not available

60

Cub Cadet MA-10301537000

Disk

$

$

Not available

61

Cub Cadet MA-10321501400

Ball, Steel

$

$

Not available

62

Cub Cadet MA-10321501500

Spring, Return

$

$

Not available

63

Cub Cadet MA-35151468000

Cam, Brake

$

$

Not available

64

Cub Cadet MA-03500151226

Washer

$

$

Not available
