7260 (54A-435D100) - Cub Cadet Compact Tractor Fuel Filter 26 HP Engine Parts Diagram

Compact Tractor

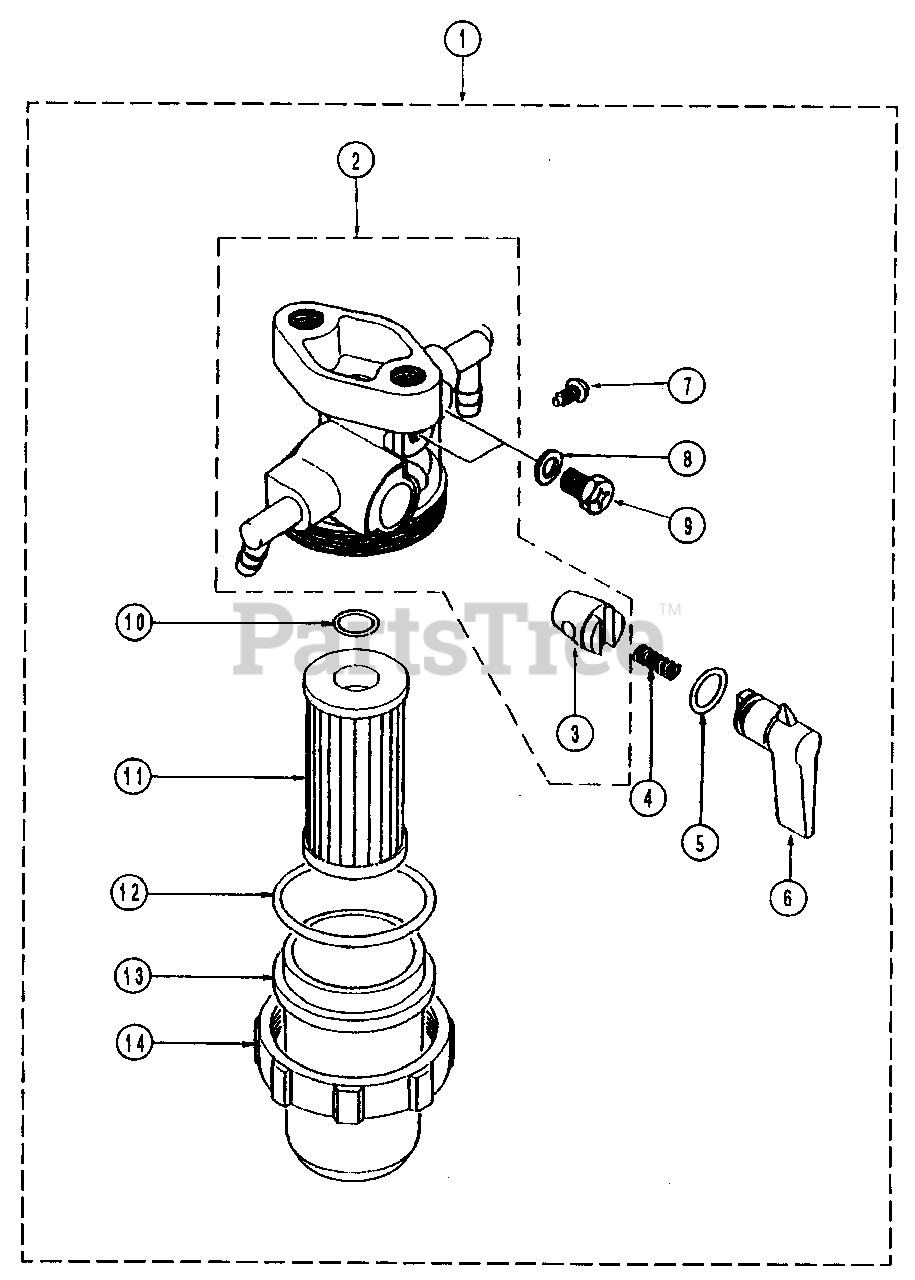

Fuel Filter 26 HP Engine Parts Diagram

  • Title

1

Cub Cadet MA-30A62-00100

Filter Ass'y.

$135.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-30A62-00110

Body Sub Ass'y,

$

$

Not available

3

Valve

$

$

Not available

4

Cub Cadet MA-MM404873

Spring, Valve

$1.99

$

In Stock, only 1 left!

0

5

Cub Cadet MA-MM404874

O-Ring, Valve
(Superseded to MA-F3151-01010)

$

$

Not available

6

Cub Cadet MA-MM404871

Lever

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet MA-MM404875

Screw

$

$

Not available

8

Cub Cadet MA-MM404884

Packing

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet MA-30A62-00105

Screw, Air Vent

$

$

Not available

10

Cub Cadet MA-MM404881

O-Ring, Element
(Superseded to MA-F3151-01000)

$

$

Not available

11

Cub Cadet MA-MM404879

Element
(Superseded to MA-MM409892)

$28.99

$

In Stock, Qty 7

0

12

Cub Cadet MA-MM404878

O-Ring, Filter Cup
(Superseded to MA-30L62-02500)

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet MA-MM400889

Cup, Filter

$18.99

$

In Stock, only 4 left!

0

14

Cub Cadet MA-MM404877

Nut, Ring

$

$

Not available
