726 TDE (31BM73TS710) - Cub Cadet 26" Snow Thrower (2010) Handles & Panel Parts Diagram

26" Snow Thrower

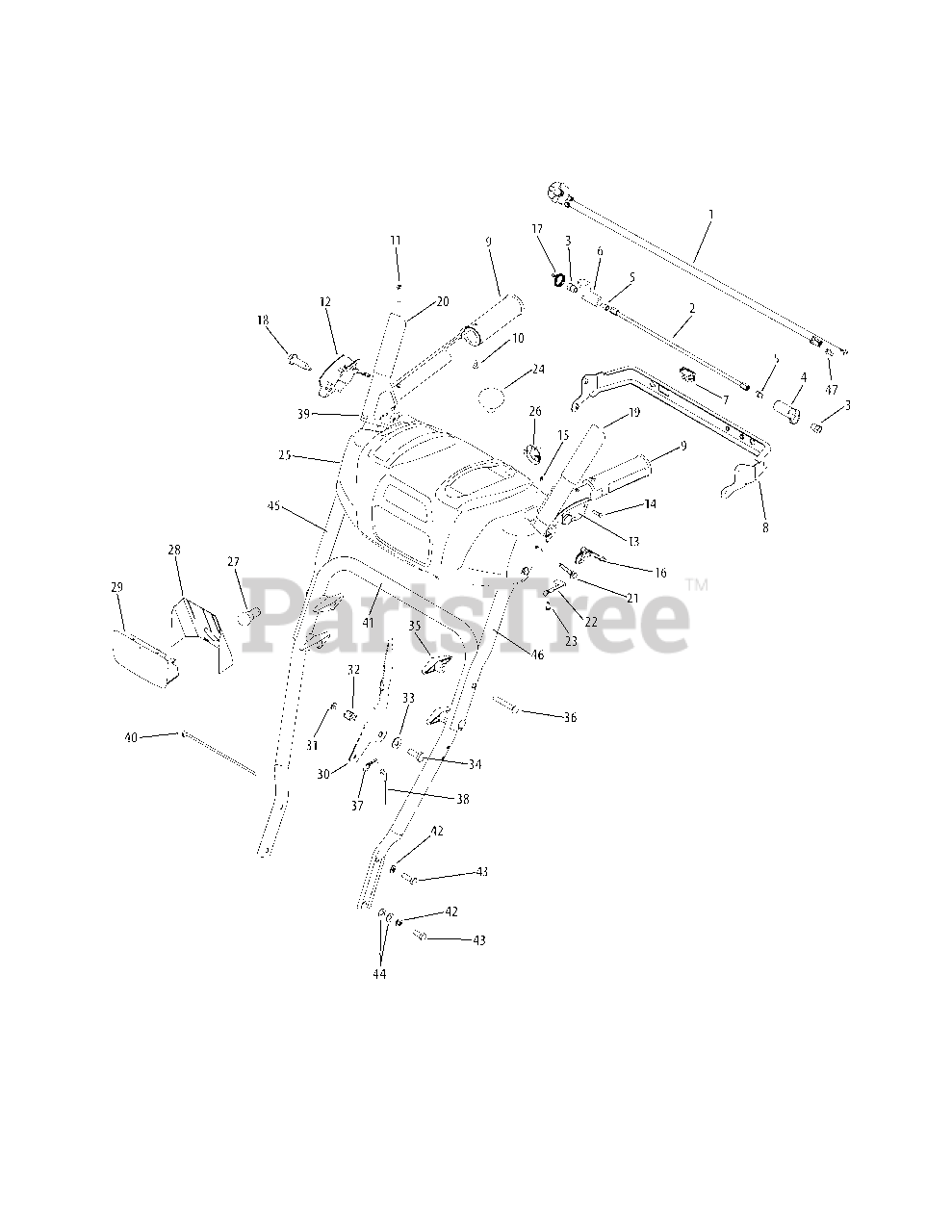

Handles & Panel Parts Diagram

  • Title

1

Cub Cadet 725-05148

Wire Harness

$69.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04250

Clutch Lock Rod Assembly

$12.99

$

In Stock, only 2 left!

0

3

Cub Cadet 712-04081A

Hex Shoulder Nut, 1/4-20

$7.49

$

In Stock, only 3 left!

0

4

Cub Cadet 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet 710-3069

Socket Cap Screw 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

6

Cub Cadet 731-04894D

Lock Plate

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet 725-04393

Heated Grip Switch

$16.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 790-00248B-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, only 1 left!

0

9

Cub Cadet 725-05149

Heated Grip

$80.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0837

AB Screw, #10-16 x .625

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

12

Cub Cadet 631-04134B

Clutch Lock Handle Assembly, RH

$15.99

$

In Stock, only 1 left!

0

13

Cub Cadet 631-04133A

Clutch Lock Handle Assembly, LH

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 19

0

15

Cub Cadet 716-04036

E-Type Ring, .375

$6.49

$

In Stock, Qty 6

0

16

Cub Cadet 731-04954

Clutch Trigger Lock

$5.99

$

In Stock, Qty 15

0

17

Cub Cadet 732-04238

Torsion Spring, .8156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

18

Cub Cadet 738-04348

Shoulder Screw, .437 x 1.345 x 1/4-20

$3.99

$

In Stock, Qty 12

0

19

Cub Cadet 684-04105B

Engagement Handle Assembly, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

20

Cub Cadet 684-04106B

Engagement Handle Assembly, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

21

Cub Cadet 710-04586

Hex Washer Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

22

Cub Cadet 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-04326

Hex Washer Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

24

Cub Cadet 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

25

Cub Cadet 931-04187A

Handle Panel

$71.99

$

In Stock, only 1 left!

0

26

Cub Cadet 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 8

0

27

Cub Cadet 725-1629

Lamp
(Superseded to 925-1629)

$11.99

$

In Stock, Qty 14

0

28

Cub Cadet 777X41804

Lens Label

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-05324

Lens

$14.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 790-00281B

Shift Lever

Variations

Cub Cadet 790-00281B-0637

LEVER-SHIFT 700/90 - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 732-0193

Compression Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

33

Cub Cadet 936-0267

Flat Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

34

Cub Cadet 738-04125

Shoulder Screw, .374 x 1.05

$4.99

$

In Stock, only 4 left!

0

35

Cub Cadet 720-04072A

Knob Assembly, 5/16-18

$6.99

$

In Stock, Qty 20+

0

36

Cub Cadet 710-0572

Carriage Screw, 5/16-18 x 2.25

$4.49

$

In Stock, only 4 left!

0

37

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 946-04518

Speed Selector Cable

$16.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 935-0199A

Rubber Bumper, .62 x .22
(Superseded to 735-0199A)

$7.99

$

In Stock, Qty 7

0

40

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.43

$3.99

$

In Stock, only 2 left!

0

41

Cub Cadet 749-0951A-0637

Lower Handle
(Superseded to 749-0951A)

$66.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 17

0

43

Cub Cadet 710-1880

Hex Bolt, 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

44

Cub Cadet 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

45

Cub Cadet 749-04310-0637

Upper Handle, RH

$42.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 749-04309-0637

Upper Handle, LH

$42.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0
