726 TDE (31BM73TS710) - Cub Cadet 26" Snow Thrower (2010) Auger Housing & Assembly Parts Diagram

26" Snow Thrower

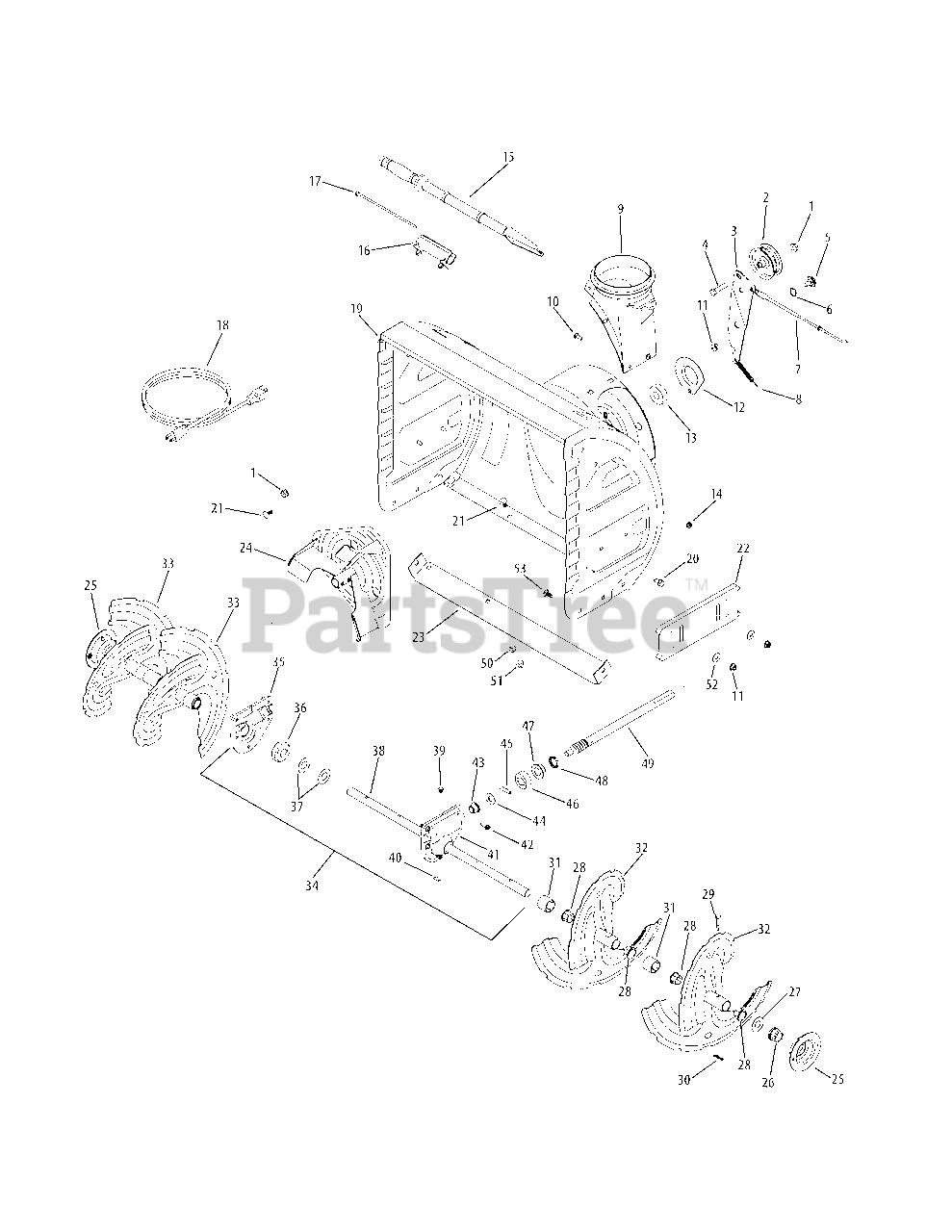

Auger Housing & Assembly Parts Diagram

  • Title

1

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 756-04224

Idler Pulley

$26.99

$

In Stock, Qty 20+

0

3

Cub Cadet 790-00080A-0637

Auger Idler Bracket w/ Brake
(Superseded to 790-00080D)

$28.99

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0347

Hex Bolt, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 938-0281

Shoulder Screw, .625 x .17 x 3/8-16
(Superseded to 738-0281)

$

$

Not available

6

Cub Cadet 736-0174

Wave Washer, .625 x .885 x .015

$6.99

$

In Stock, only 2 left!

0

7

Cub Cadet 946-0897

Clutch Cable

$24.99

$

In Stock, Qty 20+

0

8

Cub Cadet 932-0611

Extension Spring, .38 OD x 3.6

$7.49

$

In Stock, Qty 20+

0

9

Cub Cadet 731-07525

Chute Adapter, 5.0

$18.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

11

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 05931A

Bearing Housing

$10.99

$

In Stock, only 2 left!

0

13

Cub Cadet 941-0309

Ball Bearing, .75 ID x 1.85 OD

$74.99

$

In Stock, only 2 left!

0

14

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 931-2643

Cleanout Tool

$19.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

17

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 929-0071

Extension Cord, 3-Prong
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

19

Cub Cadet 684-04321-4021

Auger Housing, 26"

$

$

Not available

20

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-04525

Carriage Bolt, 5/16-18 x .750

$6.99

$

In Stock, only 4 left!

0

22

Cub Cadet 731-06931

Deluxe Polymer Skid Shoe
(Superseded to 731-11514)

$29.99

$

In Stock, only 2 left!

0

23

Cub Cadet 790-00148

Stainless Steel Shave Plate, 26"

$69.99

$

In Stock, only 2 left!

0

24

Cub Cadet 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 5

0

25

Cub Cadet 790-00087A-0637

Bearing Housing

$22.99

$

In Stock, only 2 left!

0

26

Cub Cadet 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 741-0493A

Flange Bushing .800 ID x .910 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

30

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

31

Cub Cadet 731-04870

Spacer, 1.25 OD x .75 ID x 1.00

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 684-04107-0637

Spiral Assembly, LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 7

0

33

Cub Cadet 684-04108-0637

Spiral Assembly, RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 14

0

34

Cub Cadet 918-04172B

Gearbox Assembly, 26"
(Superseded to 918-04172C)

$434.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 918-0123A

Housing Assembly, RH

$52.99

$

In Stock, Qty 10

0

36

Cub Cadet 917-04861

Worm Gear, 2OT

$43.99

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0351

Flat Washer, .760 ID x 1.50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 711-04284

Auger Axle, 26"
(Superseded to 711-06144)

$82.99

$

In Stock, only 1 left!

0

39

Cub Cadet 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

40

Cub Cadet 914-0161

Hi-Pro Key, 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 918-0124A

Housing Assembly, LH

$52.99

$

In Stock, Qty 12

0

42

Cub Cadet 710-0642

Hex Washer Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 741-0663

Flng. Bearing, .50 ID x .75 OD x .59

$9.99

$

In Stock, Qty 20+

0

44

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 715-04021

Dowel Pin, .25 OD x 1.25

$4.49

$

In Stock, Qty 8

0

46

Cub Cadet 718-04071

Thrust Collar, .756 ID x .600

$7.99

$

In Stock, Qty 10

0

47

Cub Cadet 741-0662

Flng. Bearing, .75 ID x 1.0 OD x.59

$10.99

$

In Stock, Qty 20+

0

48

Cub Cadet 721-0327

Oil Seal, .75 x 1.131 x .188

$6.99

$

In Stock, Qty 20+

0

49

Cub Cadet 917-04126

Worm Shaft, .75 OD

$79.99

$

In Stock, only 4 left!

0

50

Cub Cadet 736-04216

Bell Washer, .340 x .872 x .060

$6.99

$

In Stock, only 4 left!

0

51

Cub Cadet 712-04103

Hex Nut, 5/16-18
(Superseded to 712-05158)

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

53

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0
