726 E (1695816) - John Deere 26" Snow Thrower (2010) Wheel & Tire Group Parts Diagram

26" Snow Thrower

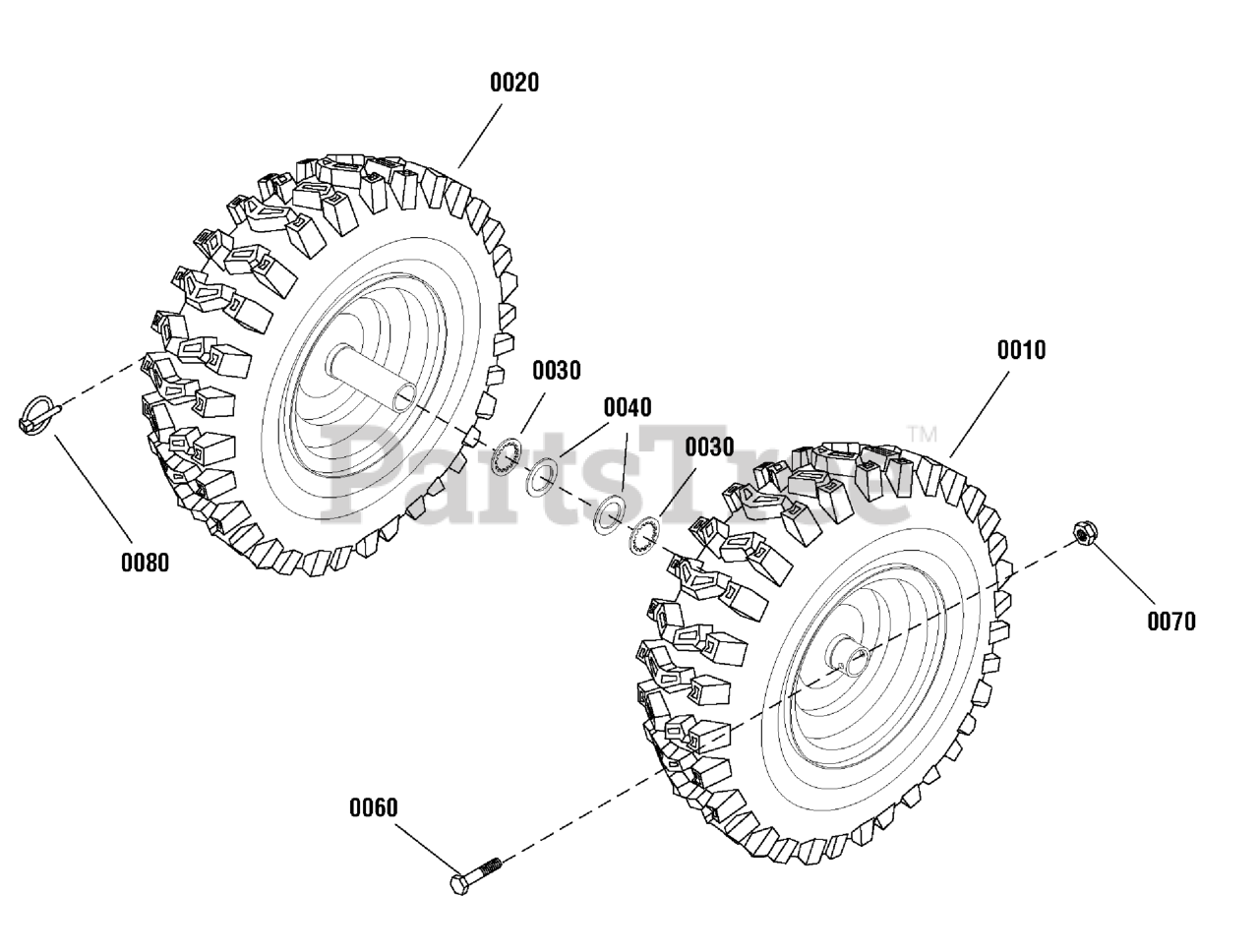

Wheel & Tire Group Parts Diagram

  • Title
0010

Murray 1750378YP

WHEEL & TIRE ASSEMBLY, XTrac, 13 x 5, LH

$125.99

$

Usually ships in 2-12 days

0

0020

Murray 1750379YP

WHEEL & TIRE ASSEMBLY, XTrac, 13 x 5, RH

$125.99

$

Usually ships in 2-12 days

0

0030

Murray 1657528SM

RETAINING RING, External, Self Lock, #75, 3/4

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4

$4.99

$

In Stock, only 3 left!

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0080

Murray 73842MA

PIN, Klik
(Superseded to 500016MA)

$15.99

$

In Stock, only 1 left!

0
