726 E (1695816) - John Deere 26" Snow Thrower (2010) Discharge Chute Group Parts Diagram

26" Snow Thrower

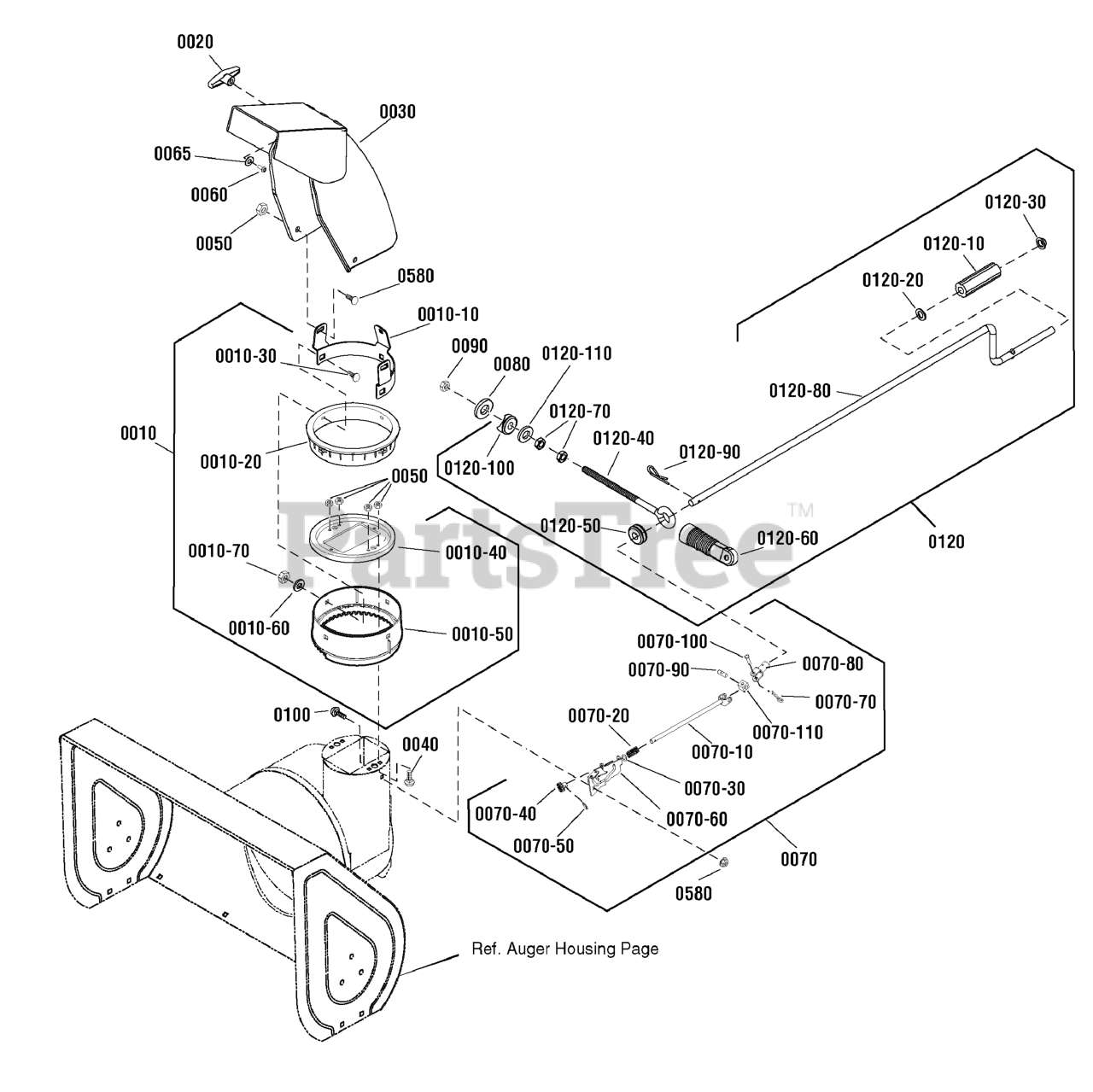

Discharge Chute Group Parts Diagram

  • Title

0010-10

Murray 1737744BPYP

ADAPTER, Chute Ring

$20.99

$

Usually ships in 2-12 days

0

0010-20

Murray 337227MA

RING, Retainer

$17.99

$

In Stock, Qty 20+

0

0010-30

Murray 2X100MA

BOLT, Carriage, 5/16-18 x 1
(Superseded to 704217)

$

$

Not available

0010-40

Murray 1501932YZMA

COLLAR, Chute

$28.99

$

In Stock, only 1 left!

0

0010-50

Murray 1501282MA

RING, Outer Chute

$26.99

$

In Stock, only 2 left!

0

0010-60

Murray 71071MA

WASHER, Flat, 3/8
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0010-70

Murray 71038MA

NUT, Hex Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0020

Murray 1501260MA

KNOB, Wing, w/Nut, 5/16-18

$7.99

$

In Stock, Qty 7

0

0030

Murray 1738574FYP

CHUTE ASSEMBLY

$131.99

$

Usually ships in 2-12 days

0

0040

Murray 1935450SM

CAPSCREW, Hex-Flange, 1/4-20 x .75

$4.49

$

Usually ships in 2-12 days

0

0050

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0060

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0065

Murray 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 3 left!

0

0070-10

Murray 1501533YZMA

ROD, Yoke Crank

$11.99

$

Usually ships in 2-12 days

0

0070-20

Murray 164X37MA

SPRING, Compression

$9.49

$

In Stock, only 1 left!

0

0070-30

Murray 017X48MA

WASHER, Flat, 3/8

$8.49

$

Usually ships in 2-12 days

0

0070-40

Murray 1501067MA

GEAR, 9 Tooth

$17.99

$

In Stock, only 2 left!

0

0070-50

Murray 1501293MA

PIN, Hair

$4.99

$

Usually ships in 2-12 days

0

0070-60

Murray 1740591AYP

BRACKET, Chute Gear

$22.99

$

Usually ships in 2-12 days

0

0070-70

Murray 579493MA

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

0070-80

Murray 1501075YZMA

YOKE TUBE ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

0070-90

Murray 578060MA

PIN, Universal Joint

$7.49

$

Usually ships in 2-12 days

0

0070-100

Murray 578309MA

PIN, Clevis

$5.49

$

In Stock, Qty 7

0

0070-110

Murray 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, only 3 left!

0

0080

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0090

Murray 71046MA

NUT, Nylock, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 002X98MA

BOLT, Carriage, 1/4-20 X 1
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

0120

ROD ASSEMBLY

Note: (Not a serviceable part, order parts individually)

$

$

Not available

0120-10

Murray 51443MA

KNOB, Sleeve

$7.49

$

Usually ships in 2-12 days

0

0120-20

Murray 309312MA

WASHER, Flat, 7/16

$4.49

$

In Stock, only 3 left!

0

0120-30

Murray 73664MA

PUSHNUT, 3/8

$4.99

$

In Stock, only 3 left!

0

0120-40

Murray 1501456MA

EYEBOLT, 3/8-16 x 6-1/2

$9.49

$

Usually ships in 2-12 days

0

0120-50

Murray 148MA

GROMMET, Eyebolt

$

$

Not available

0120-60

Murray 1501457MA

BOOT, Eyebolt

$8.99

$

Usually ships in 2-12 days

0

0120-70

Murray 71045MA

NUT, Hex Jam, 3/8-16

$4.99

$

Usually ships in 2-12 days

0

0120-80

Murray 1501074YZMA

CRANK, Chute Turn

$

$

Not available

0120-90

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0120-100

Murray 309344MA

ADAPTOR, Boot to Handle

$

$

Not available

0120-110

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0580

Murray 7091530SM

BOLT, Carriage, 1/4 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0
