726 E (1695816) - John Deere 26" Snow Thrower (2010) Auger Drive & Gear Case Group Parts Diagram

26" Snow Thrower

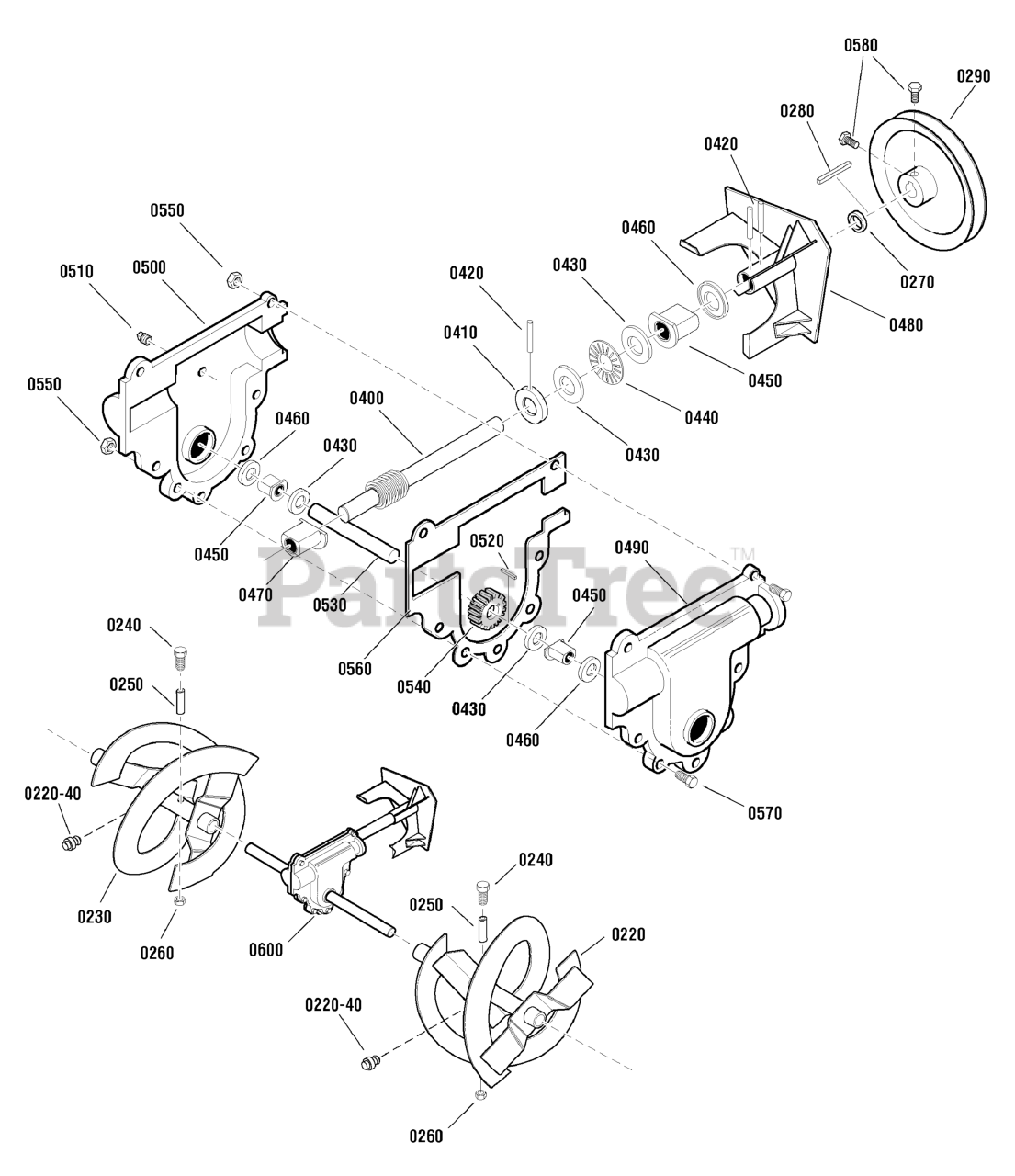

Auger Drive & Gear Case Group Parts Diagram

  • Title

0220

Murray 1741678BOYP

ASSEMBLY, Auger, 26, LH

$329.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

ZERK, Grease Fitting
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0230

Murray 1741677BOYP

ASSEMBLY, Auger, 26, RH

$283.99

$

Usually ships in 2-12 days

0

0240

Murray 9524MA

SCREW, Hex-Head, Full-Thread, 1/4-20 x 1-3/4, GR 2
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

0250

Murray 3943MA

SPACER, Sleeve, 1/4
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

0260

Murray 73826MA

NUT, Hex, Center-Lock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0270

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

0280

Murray 2001022MA

KEY, Square, 3/16 X 3/4

$4.49

$

In Stock, Qty 12

0

0290

Murray 762146MA

PULLEY,V4L 6.12 x. .67

$70.99

$

Usually ships in 2-12 days

0

0400

Murray 1501128MA

SHAFT, Impeller

$84.99

$

Usually ships in 2-12 days

0

0410

Murray 580295MA

COLLAR, Thrust, .3/4 x 1-1/4

$22.99

$

Usually ships in 2-12 days

0

0420

Murray 454565MA

PIN, Spring, 1/4 x 1-1/4

$

$

Not available

0430

Murray 48275MA

WASHER, Flat, Thrust, 3/4

$6.49

$

In Stock, Qty 6

0

0440

Murray 50684MA

Bearing, Roll, 3/4ID x 1-1/4OD

$6.49

$

In Stock, only 1 left!

0

0450

Murray 50304MA

Bearing, Flange, 3/4ID x 1OD

$8.49

$

In Stock, Qty 14

0

0460

Murray 9566MA

SEAL,Oil

$12.99

$

In Stock, only 2 left!

0

0470

Murray 50221MA

Bearing, Flange, 1/2ID x 3/4OD

$8.49

$

In Stock, only 4 left!

0

0480

Murray 1740910BOYP

ASSEMBLY, Impeller, 9
(Superseded to 1740910HMA)

$146.99

$

Usually ships in 2-12 days

0

0490

Murray 10576MA

CASE, Gear, LH

$22.99

$

In Stock, Qty 5

0

0500

Murray 10577MA

CASE, Gear, RH

$22.99

$

In Stock, only 1 left!

0

0510

Murray 9344MA

SCREW.38-16X0.50 WAHTAP
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0

0520

Murray 431787MA

KEY, Woodruff, 5/8 x 3/16W
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

0530

Murray 340287MA

SHAFT, Auger OUT 26 H1H3CF

$68.99

$

Usually ships in 2-12 days

0

0540

Murray 51405MA

GEAR, Worm

$78.99

$

In Stock, only 2 left!

0

0550

Murray 15X143MA

NUT, Flange, Locking, 1/4-20

$4.99

$

In Stock, Qty 13

0

0560

Murray 51279MA

GASKET, Gear Case

$12.99

$

In Stock, Qty 10

0

0570

Murray 710025MA

CAPSCREW, 1/4-20 X 3/4 GR5

$4.49

$

Usually ships in 2-12 days

0

0571

Murray 1501216MA

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0240, 0250, & 0260)

$4.99

$

In Stock, Qty 20+

0

0580

Murray 577400MA

SCREW, 5/16-18 x 5/8

$4.99

$

Usually ships in 2-12 days

0

0600

Murray 1738601YP

GEAR CASE ASSEMBLY, Complete

$881.99

$

Usually ships in 2-12 days

0
