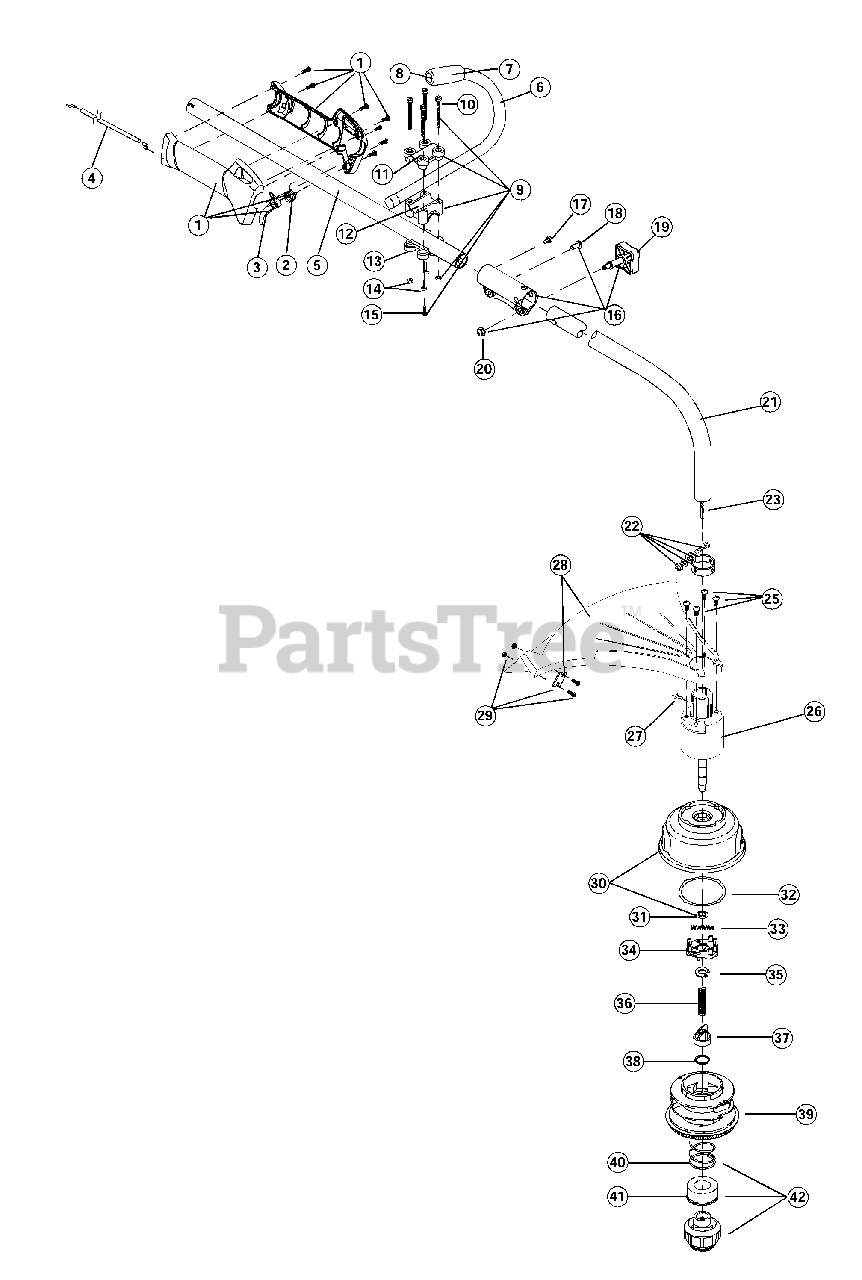

725r (41DD725A034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title
1

MTD 753-04294

Throttle Housing Assembly (Incl. 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 753-04295

Throttle Trigger

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$20.99

$

In Stock, only 2 left!

0

5

MTD 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

6

MTD 791-180687

J-Handle Assembly (Incl. 7 & 8)

$41.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

8

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

9

MTD 791-683295

Handle Bracket Assembly (Incl. 10-15)

$45.99

$

Usually ships in 3-6 days

0

10

$4.99

$

Usually ships in 3-6 days

0

11

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

13

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0

15

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

16

MTD 791-181616B

Click-Link Coupler (Incl. 17-20)
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

17

$4.49

$

In Stock, Qty 7

0

18

$5.49

$

In Stock, Qty 11

0

19

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

20

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

MTD 753-1218

Lower Drive Shaft Housing Assembly

$105.99

$

Usually ships in 3-6 days

0

22

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

23

MTD 791-181852

Lower Flexible Drive Shaft

$59.99

$

In Stock, only 1 left!

0

25

MTD 791-181858

Shield Mounting Screw

$

$

Not available

26

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

27

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

28

MTD 791-181659

Shield and Blade Assembly (Incl. 29)

$

$

Not available

29

MTD 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

30

MTD 791-181457

Outer Spool Assembly

$39.99

$

In Stock, only 1 left!

0

31

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

32

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, only 4 left!

0

33

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

34

MTD 753-04257

Slider

$7.49

$

In Stock, only 1 left!

0

35

MTD 753-04257

E-Clip

$7.49

$

In Stock, only 1 left!

0

36

$4.49

$

In Stock, Qty 9

0

37

MTD 791-181462

Plunger

$

$

Not available

38

$3.99

$

Usually ships in 3-6 days

0

39

MTD 791-181460B

Inner Reel

$32.99

$

Usually ships in 3-6 days

0

40

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

41

MTD 791-181467

Foam Seal

$

$

Not available

42

MTD 791-181468B

Bump Head Knob Assembly (Incl. 40 & 41)

$

$

Not available

MTD 791-181460B

Reel and Line Assembly

Note: (Not shown)

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap Assembly

Note: (Not shown)

$38.99

$

Usually ships in 3-6 days

0
