725r (41BD725A734) - Ryobi String Trimmer Engine Parts - Part 1 Parts Diagram

String Trimmer

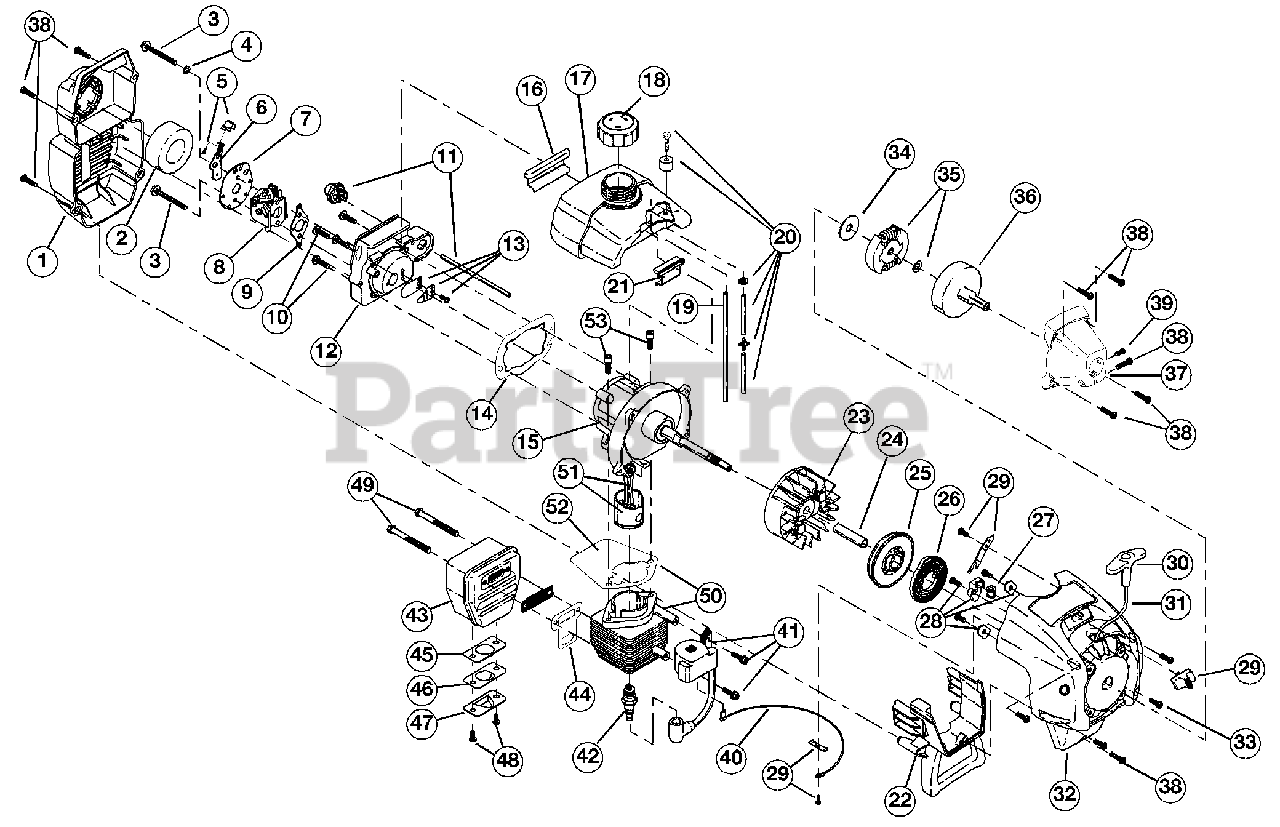

Engine Parts - Part 1 Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Assembly

Note: (includes 2 & 38)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly

Note: (includes 5)

$

$

Not available

7

MTD 753-04419

Choke Plate Assembly

Note: (includes 6)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly

Note: (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04332

Crank Case Service Assembly

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04311

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182438

Fuel Cap
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 753-04702

Shroud Extension and Stand

Note: (includes 38)

$29.99

$

Usually ships in 3-6 days

0

23

MTD 791-182739

Flywheel

$

$

Currently unavailable

24

MTD 791-181065

Spacer

$

$

Not available

25

MTD 753-04232

Recoil Pulley

$

$

Not available

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

29

MTD 791-181442

Switch Assembly

Note: (includes 40)

$19.99

$

Usually ships in 3-6 days

0

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-181443

Starter Housing Assembly

Note: (includes 25-31, 33 & 38)

$60.99

$

Usually ships in 3-6 days

0

33

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

34

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

35

MTD 791-181445

Clutch Rotor Assembly

$46.99

$

Usually ships in 3-6 days

0

36

MTD 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

37

MTD 791-182797

Clutch Cover Assembly
(Superseded to 753-04889)

Note: (includes 38 & 39)

$21.99

$

Usually ships in 3-6 days

0

38

MTD 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

39

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

40

MTD 791-180036

Wire Lead

$

$

Not available

41

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

42

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

43

MTD 753-04618

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 44-49)

$112.99

$

Usually ships in 3-6 days

0

44

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

45

MTD 753-04689

Spark Arrestor Screen

$

$

Not available

46

MTD 753-04690

Exhaust Hood Diverter

$

$

Not available

47

MTD 753-04691

Exhaust Hood

$

$

Not available

48

MTD 753-04315

Screws
(Superseded to 753-04110)

$

$

Not available

49

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

50

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 52 & 53)

$83.99

$

In Stock, only 1 left!

0

51

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

52

MTD 753-1197

Cylinder Gasket

$

$

Not available

53

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

MTD 753-04134

Engine Gasket

Note: Item Not Shown

$

$

Not available

MTD 753-1209

Piston Ring

Note: Item Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04334

Short Block Assembly

Note: (includes 10, 15, 42, 50-53) Item Not Shown

$224.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs

Note: Item Not Shown

$11.99

$

Usually ships in 3-6 days

0
