7254 (54AT742-100) - Cub Cadet Compact Tractor 4WD Axle Assembly (Part 1) Parts Diagram

Compact Tractor

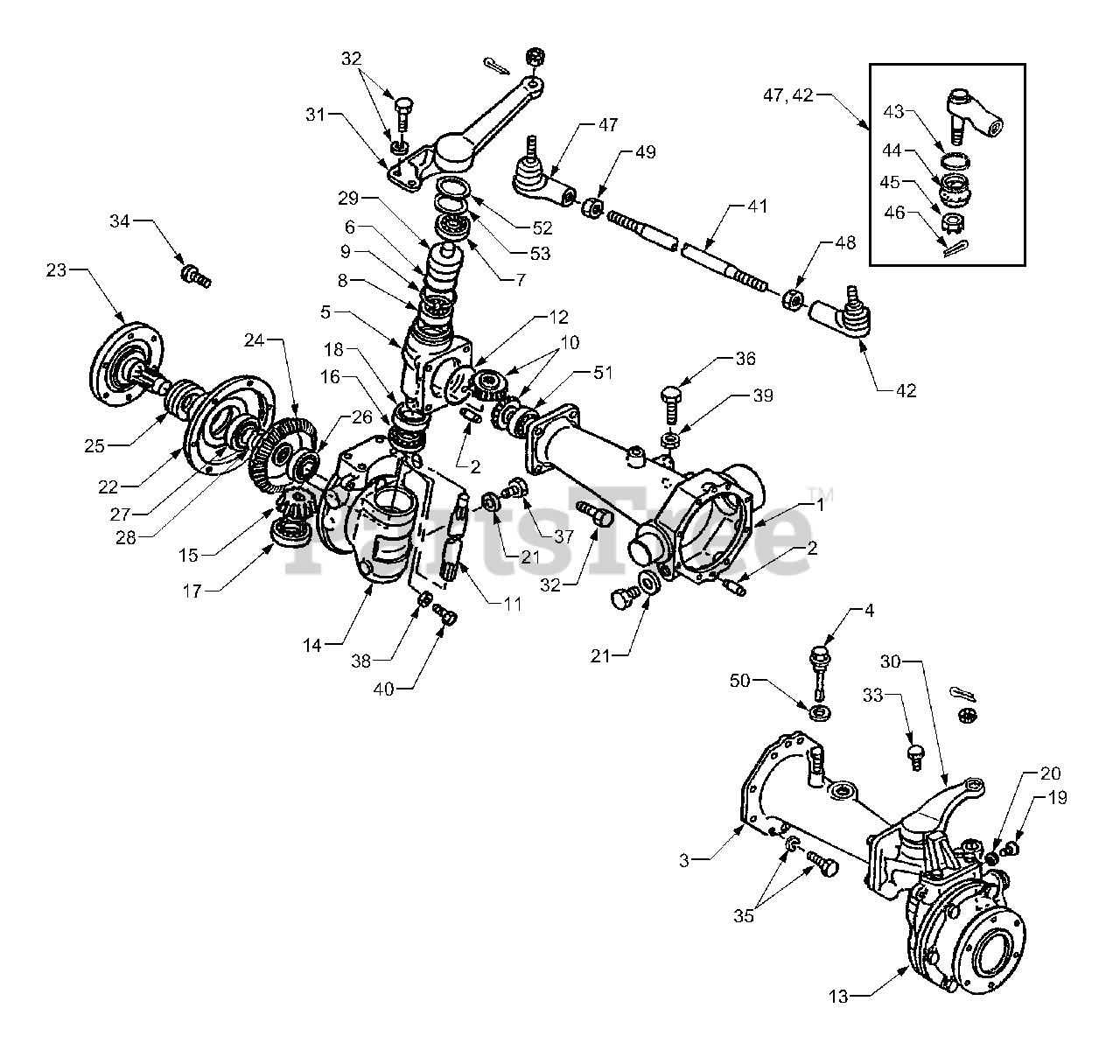

4WD Axle Assembly (Part 1) Parts Diagram

  • Title

1

Cub Cadet IM-326021860

Housing Assembly, Axle

Note: Includes Ref. No. 2

$

$

Not available

2

Cub Cadet IM-030500820

Pin, Dowel

$

$

Not available

3

Cub Cadet IM-326345040

Housing, Axle LH

$

$

Not available

4

Cub Cadet IM-398400440

Gauge, Oil Level

$

$

Not available

5

Cub Cadet IM-322013110

Housing Assembly, Pinion Gear

Note: Includes Ref. No. 2

$

$

Not available

6

Cub Cadet IM-052300400

O-Ring

$

$

Not available

7

Cub Cadet IM-040116204

Bearing, Ball

$

$

Not available

8

Cub Cadet IM-040106303

Bearing, Ball

$

$

Not available

9

Cub Cadet IM-036500047

Ring, Snap

$

$

Not available

10

Cub Cadet IM-326240290

Gear, Final Pinion Idler

$

$

Not available

11

Cub Cadet IM-322511091

Shaft, Idler Drive

$

$

Not available

12

Cub Cadet IM-052300650

O-Ring

$

$

Not available

13

Cub Cadet IM-322117840

Housing, Final Drive LH

$

$

Not available

14

Cub Cadet IM-322117850

Housing, Final Drive RH
(Superseded to IM-322117851)

$

$

Not available

15

Cub Cadet IM-326240280

Gear, Final Drive Pinion

$

$

Not available

16

Cub Cadet IM-042532006

Bearing, Tapered

$

$

Not available

17

Cub Cadet IM-040106006

Bearing, Ball

$

$

Not available

18

Cub Cadet IM-050600038

Seal, Oil

$

$

Not available

19

Cub Cadet IM-064600016

Plug

$

$

Not available

20

Cub Cadet IM-025100016

Washer, Seal

$

$

Not available

21

Cub Cadet IM-025100012

Washer, Seal

$

$

Not available

22

Cub Cadet IM-322212311

Housing, Final Drive
(Superseded to IM-322212312)

$

$

Not available

23

Cub Cadet IM-326312330

Wheel Hub/Shaft
(Superseded to IM-326312401P)

$

$

Not available

24

Cub Cadet IM-326370450

Gear, Final Drive

$

$

Not available

25

Cub Cadet IM-050609043

Seal, Oil, 35mm x 55mm x 15mm

$

$

Not available

26

Cub Cadet IM-040106205

Bearing, Ball

$

$

Not available

27

Cub Cadet IM-040106206

Bearing, Ball

$

$

Not available

28

Cub Cadet IM-036100030

Ring, Snap

$

$

Not available

29

Cub Cadet IM-330310712

Kingpin

$

$

Not available

30

Cub Cadet IM-334525190

Arm, Steering LH

$

$

Not available

31

Cub Cadet IM-334525200

Arm, Steering RH

$

$

Not available

32

Cub Cadet IM-011511025

Bolt, M10 x 25

$

$

Not available

33

Cub Cadet IM-011511030

Bolt, M10 x 30

$

$

Not available

34

Cub Cadet IM-011510820

Bolt, M8 x 20

$

$

Not available

35

Cub Cadet IM-11510825

Bolt, M8 x 25

$

$

Currently unavailable

36

Cub Cadet IM-010311035

Bolt, M10 x 35

$

$

Not available

37

Cub Cadet IM-010301212

Bolt, M12 x 12

$

$

Not available

38

Cub Cadet IM-020900008

Nut, M8

$

$

Not available

39

Cub Cadet IM-399234470

Collar

$

$

Not available

40

Cub Cadet IM-010310825

Bolt, M8 x 25

$

$

Not available

41

Cub Cadet IM-334712010

Rod, Tie

$

$

Not available

42

Cub Cadet IM-334801170

Tie Rod End, LH

Note: Includes Ref. Nos. 43 thru 46

$

$

Not available

43

Spring, Dust Cover

Note: (With Cover, Dust)

$

$

Not available

44

Cub Cadet IM-334810207

Cover, Dust

$

$

Not available

45

Cub Cadet IM-334810209

Nut, Castle, M12 x 1.25

$

$

Not available

46

Cub Cadet IM-030103025

Pin,Cotter

$

$

Not available

47

Cub Cadet IM-334801150

Tie Rod End, RH

Note: Includes Ref. Nos. 43 thru 46

$

$

Not available

48

Cub Cadet IM-020109029

Nut, Jam, LH Thrd

$

$

Not available

49

Cub Cadet IM-020800014

Nut, Jam, M14 RH Thrd

$

$

Not available

50

Cub Cadet IM-025100020

Washer, Seal

$

$

Not available

51

Cub Cadet IM-040106304

Bearing, Ball

$

$

Not available

52

Cub Cadet IM-199280540

Shim, 0.2T

$

$

Not available

53

Cub Cadet IM-199280550

Shim, 0.5T

$

$

Not available
