7254 (54AD742-100) - Cub Cadet Compact Tractor Cooling Parts Diagram

Compact Tractor

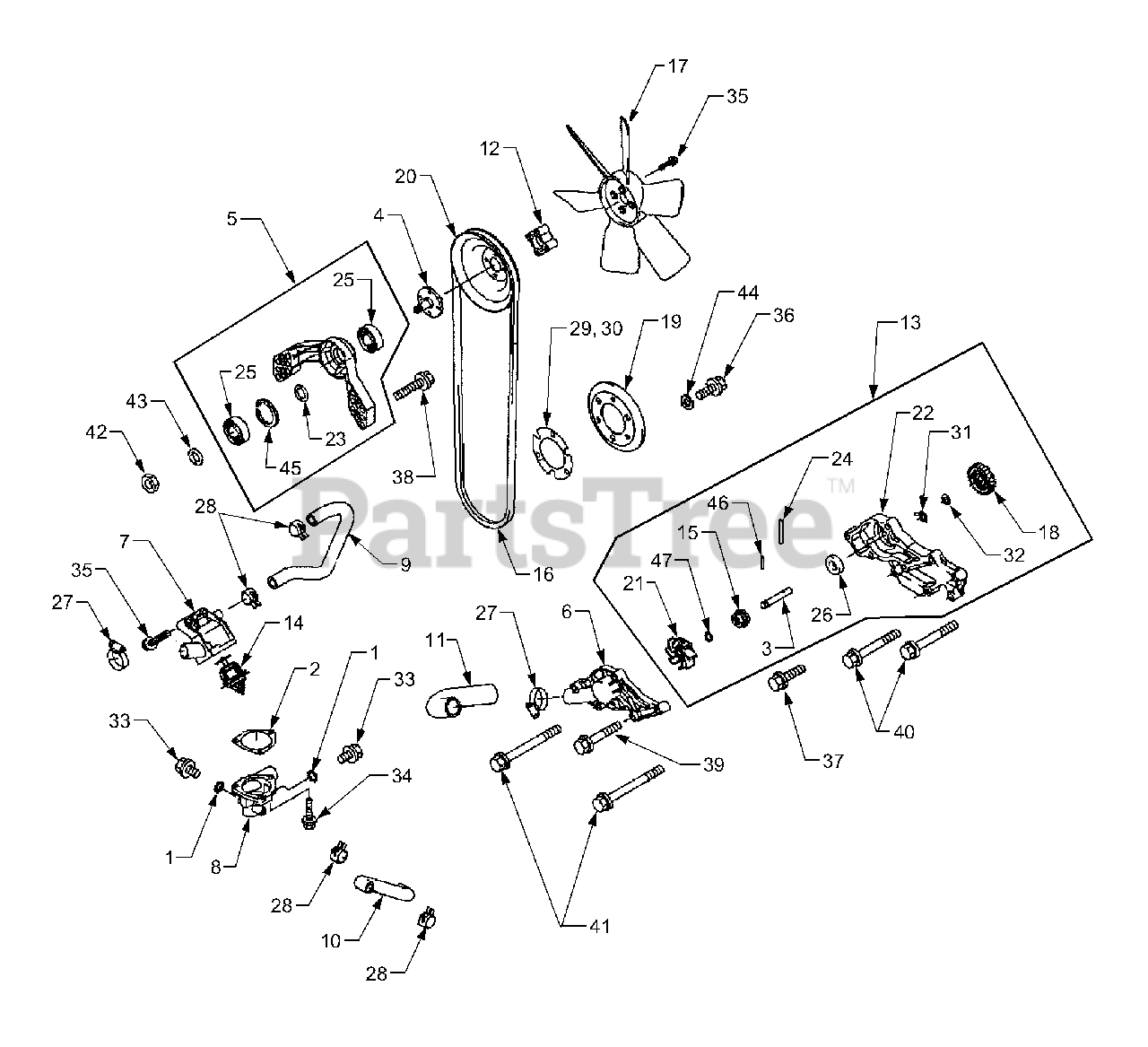

Cooling Parts Diagram

  • Title

1

Cub Cadet KM-11009-3028

Gasket

$0.99

$

In Stock, Qty 10

0

2

Cub Cadet KM-11060-2475

Gasket, Thermostat

$4.49

$

In Stock, only 3 left!

0

3

Cub Cadet KM-13107-2097

Shaft, Impeller

$9.49

$

In Stock, only 1 left!

0

4

Cub Cadet KM-13107-2246

Shaft, Pulley

$58.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-13304-6010

Housing Assembly

Note: Includes Ref. Nos. 23, 25 & 45

$98.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-16142-2077

Cover, Pump

$49.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-16160-2127

Body, Upper
(Superseded to KM-16160-2139)

$

$

Not available

8

Cub Cadet KM-16160-6001

Body, Valve

$70.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-39062-2084

Hose, Cooling
(Superseded to KM-39062-2098)

$25.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-39062-2088

Hose, Cooling
(Superseded to KM-39062-2100)

$17.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-39062-2089

Hose, Cooling
(Superseded to KM-39062-2101)

$18.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-41077-2064

Adapter

$13.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-49044-2063

Pump Assembly, Water
(Superseded to KM-49044-2067)

$261.99

$

In Stock, only 1 left!

0

14

Cub Cadet KM-49054-2058

Thermostat

$58.99

$

In Stock, only 2 left!

0

15

Cub Cadet KM-49063-1054

Seal, Mechanical
(Superseded to KM-49063-1056)

$18.99

$

In Stock, only 3 left!

0

16

Cub Cadet KM-59011-2058

Belt

$27.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-59041-2092

Fan

$66.99

$

In Stock, only 3 left!

0

18

Cub Cadet KM-59051-2355

Gear, Spur, 25T

$9.49

$

In Stock, only 2 left!

0

19

Cub Cadet KM-59091-2054

Pulley

$12.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KM-59091-20559H

Pulley

$

$

Not available

21

Cub Cadet KM-59256-2069

Impeller

$21.99

$

In Stock, only 1 left!

0

22

Cub Cadet KM-59336-2078

Case, Pump

$126.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KM-92026-2311

Spacer, 12 x 18 x 1.4

$0.99

$

In Stock, only 1 left!

0

24

Cub Cadet KM-92043-2237

Pin

$0.99

$

In Stock, Qty 6

0

25

Cub Cadet KM-92045-2191

Bearing, Ball

$16.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KM-92049-2111

Seal, Oil

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet KM-92170-1284

Clamp

$

$

Not available

28

Cub Cadet KM-92171-2056

Clamp

$1.99

$

In Stock, only 1 left!

0

29

Cub Cadet KM-92180-2013

Shim, T=0.6

$1.99

$

In Stock, Qty 6

0

30

Cub Cadet KM-92180-2014

Shim, T=1.2

$2.49

$

In Stock, Qty 11

0

31

Cub Cadet KM-92200-2134

Washer

$1.49

$

In Stock, only 3 left!

0

32

Cub Cadet KM-92200-2135

Washer 10.2 x 19 x 0.8

$1.49

$

In Stock, only 2 left!

0

33

Cub Cadet KM-130C0812

Bolt, Flanged
(Superseded to KM-130AB0812)

$0.99

$

Usually ships in 2-5 days

0

34

Cub Cadet KM-130G0625

Bolt, Flanged
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

35

Cub Cadet KM-130G0635

Bolt, Flanged
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

36

Cub Cadet KM-130G0820

Bolt, Flanged
(Superseded to KM-130BA0820)

$4.99

$

Usually ships in 2-5 days

0

37

Cub Cadet KM-130G0830

Bolt, Flanged
(Superseded to KM-130CA0830)

$2.99

$

Usually ships in 2-5 days

0

38

Cub Cadet KM-130G0835

Bolt, Flanged

$

$

Currently unavailable

39

Cub Cadet KM-130G0845

Bolt, Flanged
(Superseded to KM-130BA0845)

$1.99

$

In Stock, Qty 13

0

40

Cub Cadet KM-130G0860

Bolt, Flanged
(Superseded to KM-130BA0860)

$1.99

$

In Stock, Qty 9

0

41

Cub Cadet KM-130G0880

Bolt, Flanged

$2.49

$

Usually ships in 2-5 days

0

42

Cub Cadet KM-315B1000

Nut, Hex Fine
(Superseded to KM-315AA1000)

$0.99

$

In Stock, Qty 10

0

43

Cub Cadet KM-410B1000

Washer, Plain
(Superseded to KM-410AA1000)

$0.99

$

Usually ships in 2-5 days

0

44

Cub Cadet KM-461F0800

Washer, Spring
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0

45

Cub Cadet KM-481J2800

Circlip

$1.99

$

Usually ships in 2-5 days

0

46

Cub Cadet KM-551A0314

Pin, Dowel

$0.99

$

In Stock, Qty 9

0

47

Cub Cadet KM-670B1507

O-Ring

$1.49

$

In Stock, only 4 left!

0
