7254 (54AB742-100) - Cub Cadet Compact Tractor Engine And Drive Shaft Parts Diagram

Compact Tractor

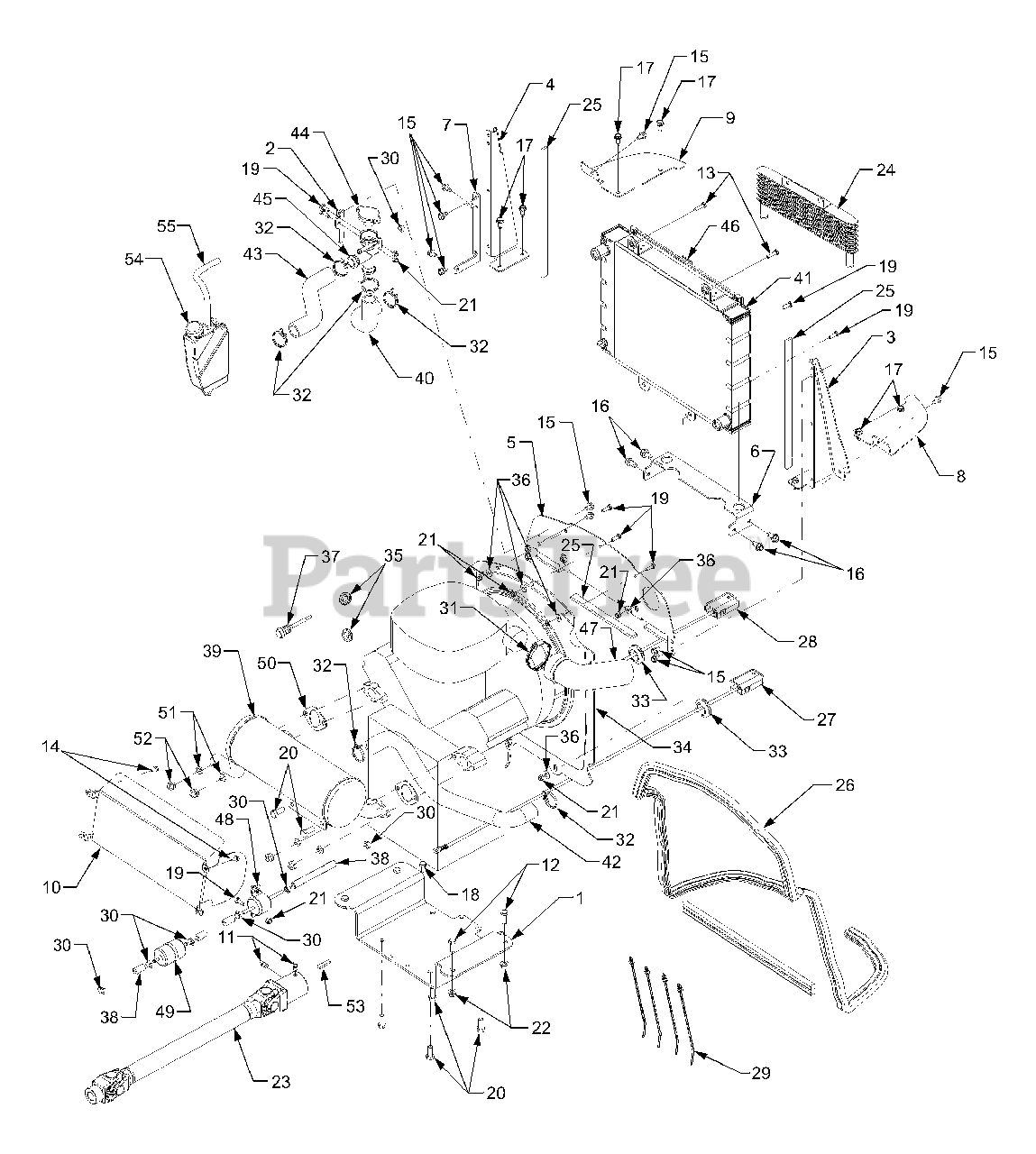

Engine And Drive Shaft Parts Diagram

  • Title

1

Cub Cadet 703-3521A

Plate, Engine Mtg

$

$

Not available

2

Cub Cadet 703-3684

Bracket, Filler Neck

$

$

Not available

3

Cub Cadet 703-3688

Bracket, Radiator Mtg. RH

$

$

Not available

3

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

4

Cub Cadet 703-3689

Bracket, Radiator Mtg. LH

$

$

Not available

4

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

5

Cub Cadet 703-3691

Plate, Radiator Baffle

$

$

Not available

5

Cub Cadet 777S30631

Graphic, Fan Warning

$

$

Not available

5

Cub Cadet 777S30633

Graphic, Warning

$

$

Not available

6

Cub Cadet 703-3692

Bracket, Radiator Mtg

$

$

Not available

7

Cub Cadet 703-3722

Bracket, Ovrflw Bottle Mtg

$

$

Not available

8

Cub Cadet 703-3739

Plate, Baffle RH

$

$

Not available

9

Cub Cadet 703-3740

Plate, Baffle LH

$

$

Not available

10

Cub Cadet 703-4063

Shield, Heat
(Superseded to 703-4063B)

$

$

Not available

11

Cub Cadet 710-0357

Screw, Square Hd. Set, 3/8-16

$

$

Not available

12

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 GR5

$3.99

$

In Stock, Qty 14

0

14

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 12

0

16

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1376

Screw, Hex Cap, M8-20 x 16

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3208

Screw, Hex Cap, M10 x 1.5 x 25

$3.99

$

In Stock, only 4 left!

0

21

Cub Cadet 712-0324

Nut, Hex Nylon Insert Lock 1/4-20 GR8

$3.99

$

In Stock, Qty 17

0

22

Cub Cadet 712-0431

Nut, Hx Flnge Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 717-3498

Shaft, Drive

$

$

Not available

24

Cub Cadet 718-3132

Cooler, Oil
(Superseded to 918-3132)

$

$

Not available

25

Cub Cadet 722-3022

Tape, Foam, .625 wide 42in.
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 723-3061

Seal, Heat Baffle 96in.

$2.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 725-3282

Wire, Battery Neg

$

$

Not available

28

Cub Cadet 725-3289

Wire, Battery Pos

$

$

Not available

29

Cub Cadet 726-0154

Tie, Cable - Push Mount
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

31

Cub Cadet 726-0476

Clamp, Hose - Adjustable

$12.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 726-0480

Clamp, Hose

$

$

Not available

33

Cub Cadet 731-04018

Grommet

$

$

Not available

34

Cub Cadet 731-3364

Shroud, Fan
(Superseded to 931-3364)

$

$

Not available

35

Cub Cadet 735-0226

Grommet

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

37

Cub Cadet 746-04015

Cable, Choke Control

$53.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 751-3130

Fuel Line 5/16 ID 94in.

$32.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 751-3166

Muffler

$

$

Not available

40

Cub Cadet 751-3177

Hose, Filler to Radiator

$31.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 751-3185

Radiator

$

$

Not available

42

Cub Cadet 751-3187

Hose, Lower Radiator

$

$

Not available

43

Cub Cadet 751-3189

Hose, Engine to Filler Neck

$

$

Not available

44

Cub Cadet 751-3192

Cap, Remote Filler
(Superseded to 759-04129)

$50.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 751-3190

Filler Neck, Remote Radiator

$

$

Not available

46

Cub Cadet 751-3193

Screen, Radiator

$

$

Not available

47

Cub Cadet 751-3203

Hose, Intake Air

$

$

Not available

48

Cub Cadet KM-49040-2065

Pump, Fuel

$182.99

$

In Stock, only 1 left!

0

49

Cub Cadet KM-49019-1055

Filter, Fuel
(Superseded to KM-49019-0032)

$25.99

$

In Stock, only 1 left!

0

50

Cub Cadet KM-11060-2467

Gasket, Exhaust

$6.49

$

In Stock, Qty 20+

0

51

Cub Cadet KM-461F0800

Washer, Spring
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0

52

Cub Cadet KM-317R0800

Nut, Hex

$2.99

$

In Stock, Qty 20+

0

53

Cub Cadet KM-92038-2101

Key, Crankshaft

$4.99

$

Usually ships in 2-5 days

0

54

Cub Cadet KM-43078-2055

Bottle, Over Flow

$47.99

$

In Stock, only 1 left!

0

55

Cub Cadet KM-39062-2086

Tube

$7.49

$

Usually ships in 2-5 days

0

Cub Cadet 629-3063

Harness, Engine

Note: not shown

$

$

Not available
