72523 - Toro 60" GrandStand Multi-Force Stand-On Mower (SN: 406990733 - 411599999) Ground Drive Assembly Parts Diagram

60" GrandStand Multi-Force Stand-On Mower

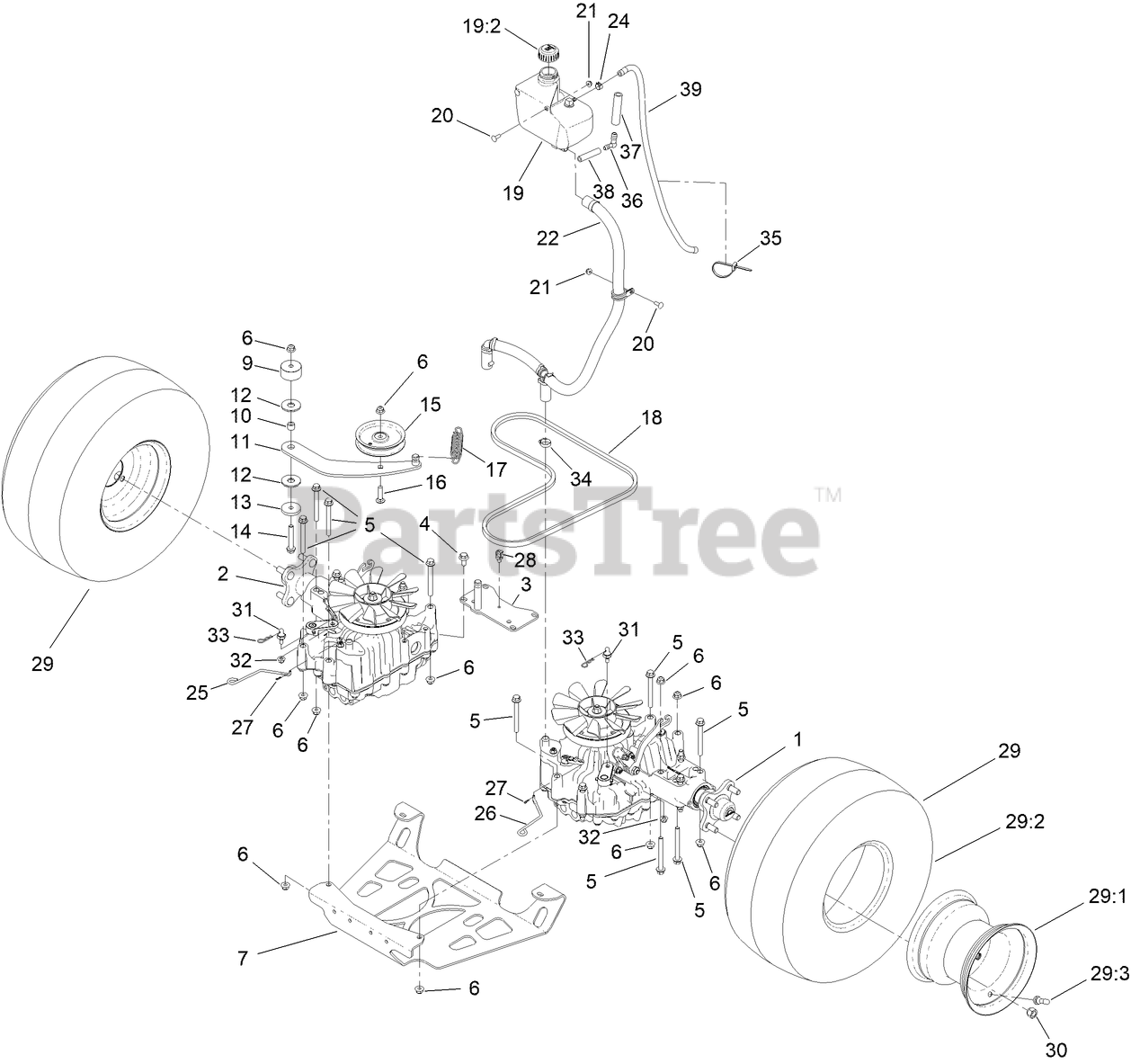

Ground Drive Assembly Parts Diagram

  • Title

1

Toro 138-5840

LH ACCY TRANSMISSION-TZT1310

$2666.99

$

Usually ships in 3-6 days

0

2

Toro 138-5839

RH TRANSMISSION ASM

$2666.99

$

Usually ships in 3-6 days

0

3

Toro 131-1131-03

SUPPORT-TRANSAXLE

$41.99

$

Usually ships in 3-6 days

0

4

Toro 93-2569

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 116-4701

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 138-1108-03

PLATE-SKID

$158.99

$

Usually ships in 3-6 days

0

9

Toro 117-5351

SPACER

$22.99

$

Usually ships in 3-6 days

0

10

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

11

Toro 131-1175

ARM-IDLER

$59.99

$

Usually ships in 3-6 days

0

12

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 9

0

13

Toro 110-9981

WASHER-PLAIN

$14.99

$

Usually ships in 3-6 days

0

14

Toro 3234-39

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

15

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 1 left!

0

16

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

17

Toro 138-1104

SPRING-EXTENSION

$9.49

$

In Stock, only 1 left!

0

18

Toro 131-1124

BELT-V

$33.99

$

In Stock, only 3 left!

0

19

Toro 132-1135

TANK-HYD

$130.99

$

Usually ships in 3-6 days

0

19:2

Toro 133-8677

CAP-VENTED

$16.99

$

In Stock, only 2 left!

0

19:5

Toro 140-9463

STRAINER-NECK, REMOVABLE

Note: Not illustrated

$38.99

$

Usually ships in 3-6 days

0

20

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

21

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 139-4059

HYD HOSE ASM
(Superseded to 145-3466)

$103.99

$

Usually ships in 3-6 days

0

24

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

25

Toro 131-7469

ROD-BYPASS, RH

$17.99

$

Usually ships in 3-6 days

0

26

Toro 131-7470

ROD-BYPASS, LH

$17.99

$

Usually ships in 3-6 days

0

27

Toro 108-2992

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

28

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

29

Toro 140-1886

WHEEL AND TIRE ASM

$289.99

$

Usually ships in 3-6 days

0

29:1

Toro 140-1887

RIM-8 INCH BLACK

$77.99

$

Usually ships in 3-6 days

0

29:2

Toro 120-6466

TIRE

$149.99

$

Usually ships in 3-6 days

0

29:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

30

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

31

Toro 132-7584

SPACER-HEX

$30.99

$

Usually ships in 3-6 days

0

32

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

33

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

34

Toro 2412-141

CLAMP-DRIVE, WORM

$2.99

$

Usually ships in 3-6 days

0

35

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

36

Toro 136-1290

FITTING-ELBOW 90

$8.99

$

Usually ships in 3-6 days

0

37

Toro 83-2080

HOSE-VALVE, TANK

$

$

Currently unavailable

38

Toro 133-0223

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

39

Toro 110-3257

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0
