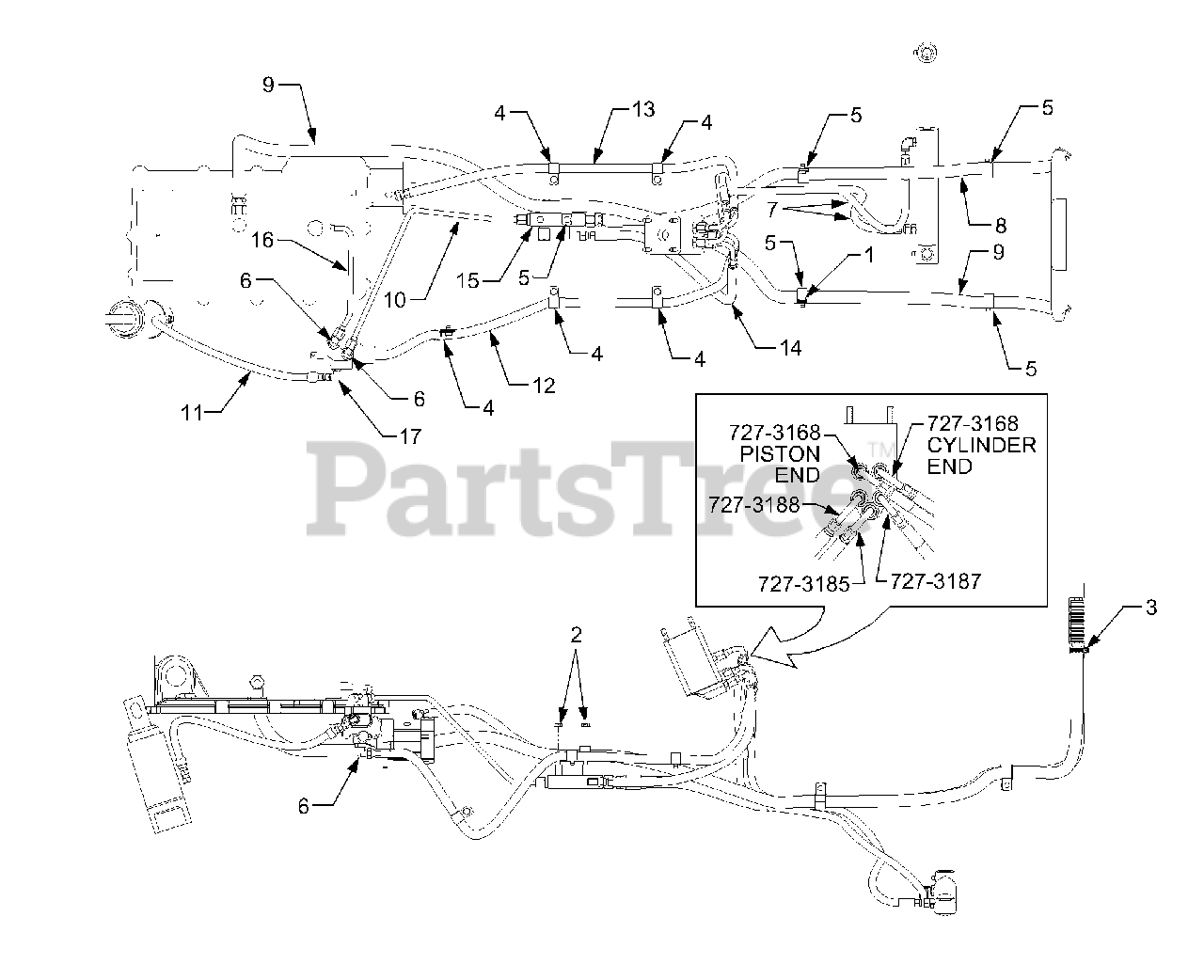

7252 (54AG742-100) - Cub Cadet Compact Tractor Hydraulics Parts Diagram

Compact Tractor

Hydraulics Parts Diagram

  • Title

1

Cub Cadet 710-0607

Screw, Hex Wash Hd. Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 10

0

2

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/161-18 GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 726-0132

Clamp, Adjustable Hose

$15.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 726-04004

Clamp, Hose

$

$

Not available

5

Cub Cadet 726-0475

Clamp, Hose

$13.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 727-3012

Fitting, 90 Degree

$26.99

$

In Stock, only 4 left!

0

7

Cub Cadet 727-3168

Hose, Steering

$78.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 727-3177

Tube, Oil Cooler Return

$

$

Not available

9

Cub Cadet 727-3178

Hose, Oil Return

$

$

Not available

10

Cub Cadet 727-3182

Tube, Lift Return Line

$

$

Not available

11

Cub Cadet 727-3184

Hose, Lift Cylinder

$

$

Not available

12

Cub Cadet 727-3185A

Hose, Lift Inlet

$

$

Not available

13

Cub Cadet 727-3187A

Hose, Steering Pressure

$

$

Not available

14

Cub Cadet 727-3188A

Hose, Steering Tank

$

$

Not available

15

Cub Cadet 727-3199

Manifold, Return

$

$

Not available

16

Cub Cadet 727-3209

Tube, Cylinder Return

$

$

Not available

17

Cub Cadet 737-3127

Fitting, 90 Degree

$

$

Not available
