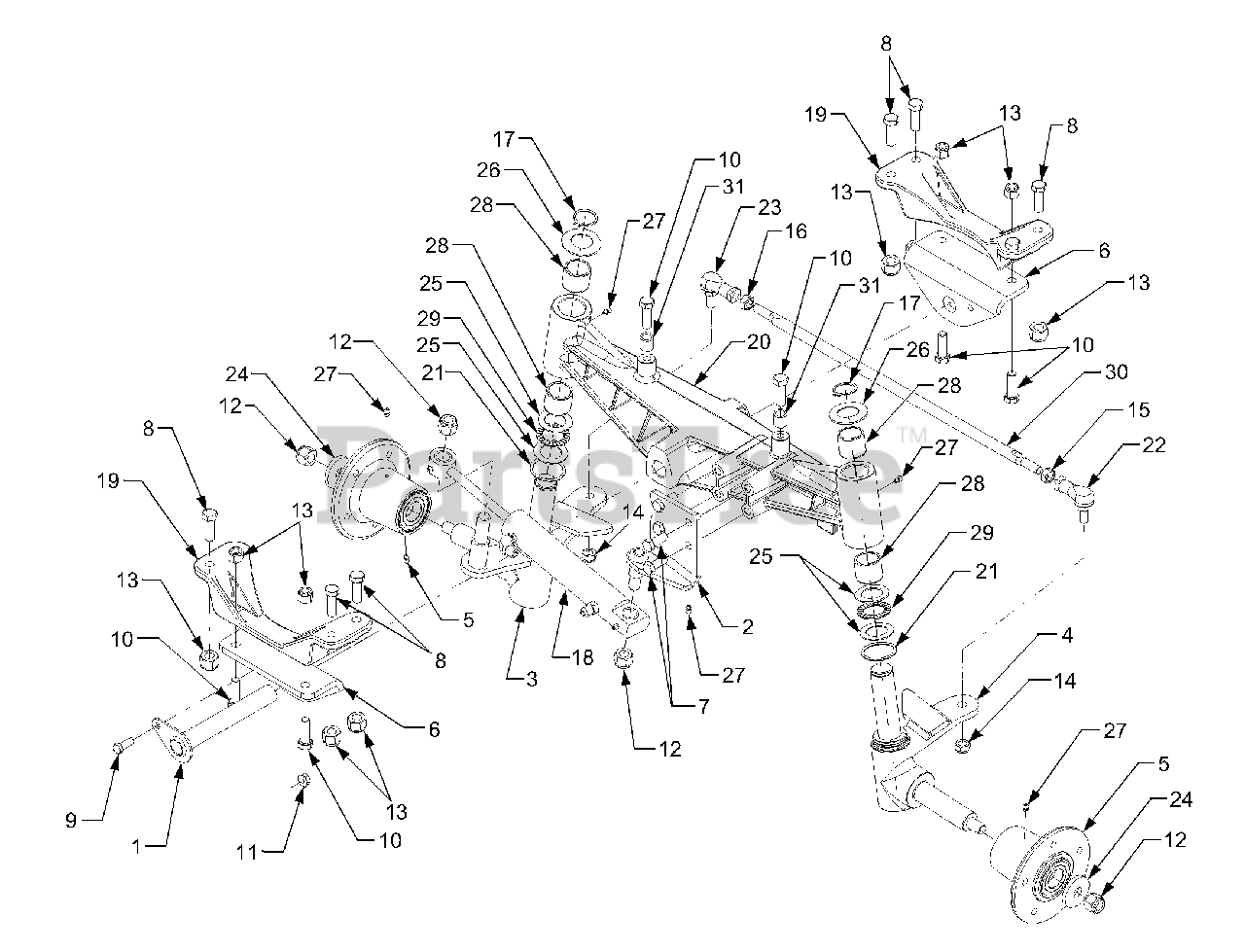

7252 (54AG742-100) - Cub Cadet Compact Tractor Front Axle Parts Diagram

Compact Tractor

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-0721

Pin, Pivot Axle

$

$

Not available

2

Cub Cadet 603-0735-0637

Plate, Steering Cylinder Mtg.

$

$

Not available

3

Cub Cadet 603-0908-0637

Spindle Assembly, Steering LH
(Superseded to 603-0908B-0637)

$

$

Not available

4

Cub Cadet 603-0909-0637

Spindle Assembly, Steering RH

$

$

Not available

5

Cub Cadet 619-3078

Hub Assembly

$

$

Not available

Cub Cadet 741-3116

Bearing, Ball

$35.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-3506

Plate, Pivot Axle Mtg.

$

$

Not available

7

Cub Cadet 710-1843

Screw, Hex Cap, M12-1.75 x 25 GR8

$

$

Not available

8

Cub Cadet 710-3067

Screw, Hex Cap, 1/2-13 x 1.75 GR5

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-3118

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$5.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3181

Screw, Hex Cap, 1/2-13 x 1.5 GR5

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-3016

Nut, Hex Insert Lock 5/8-11 GR5

$6.99

$

In Stock, Qty 13

0

13

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13 GR8

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3103

Nut, Hex Flange Lock, M12 x1.75

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 712-3104

Nut, Hex, M12 x 1.75 RH Thrd

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 712-3105

Nut, Hex, M12 x 1.75 LH Thrd

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 716-0116

Ring, Snap, 1.25 Dia Shaft

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 717-3502

Cylinder, Steering
(Superseded to 917-3502)

$732.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 719-3158

Bracket, Axle Mtg.

$

$

Not available

20

Cub Cadet 719-3163

Axle, Pivot

$

$

Not available

21

Cub Cadet 721-0526

O-Ring, 1.374 x .139

$

$

Not available

22

Cub Cadet 723-0462

Ball Joint, RH Thrd

$69.99

$

In Stock, Qty 11

0

23

Cub Cadet 723-0463

Ball Joint, LH Thrd

$69.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0746

Washer, Flat, .66 x 1.94 x .25

$20.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0748

Washer, Flat, 1.25 x 1.94 x .063

$19.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0869

Washer, Flat, 1.25 x 2.25 x .040

$

$

Not available

27

Cub Cadet 737-3000

Fitting, Lube, 3/6 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 741-3110

Bearing, Sleeve, 1.25x1.5x1.25

$

$

Not available

29

Cub Cadet 741-3115

Bearing, Thrust, 1.25 x 1.94 x .78

$

$

Not available

30

Cub Cadet 747-3421

Rod, Tie

$79.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-0499

Spacer, .501 x .75 x .78

$23.99

$

Usually ships in 3-6 days

0
