7252 (54AG742-100) - Cub Cadet Compact Tractor Fender And Running Board Parts Diagram

Compact Tractor

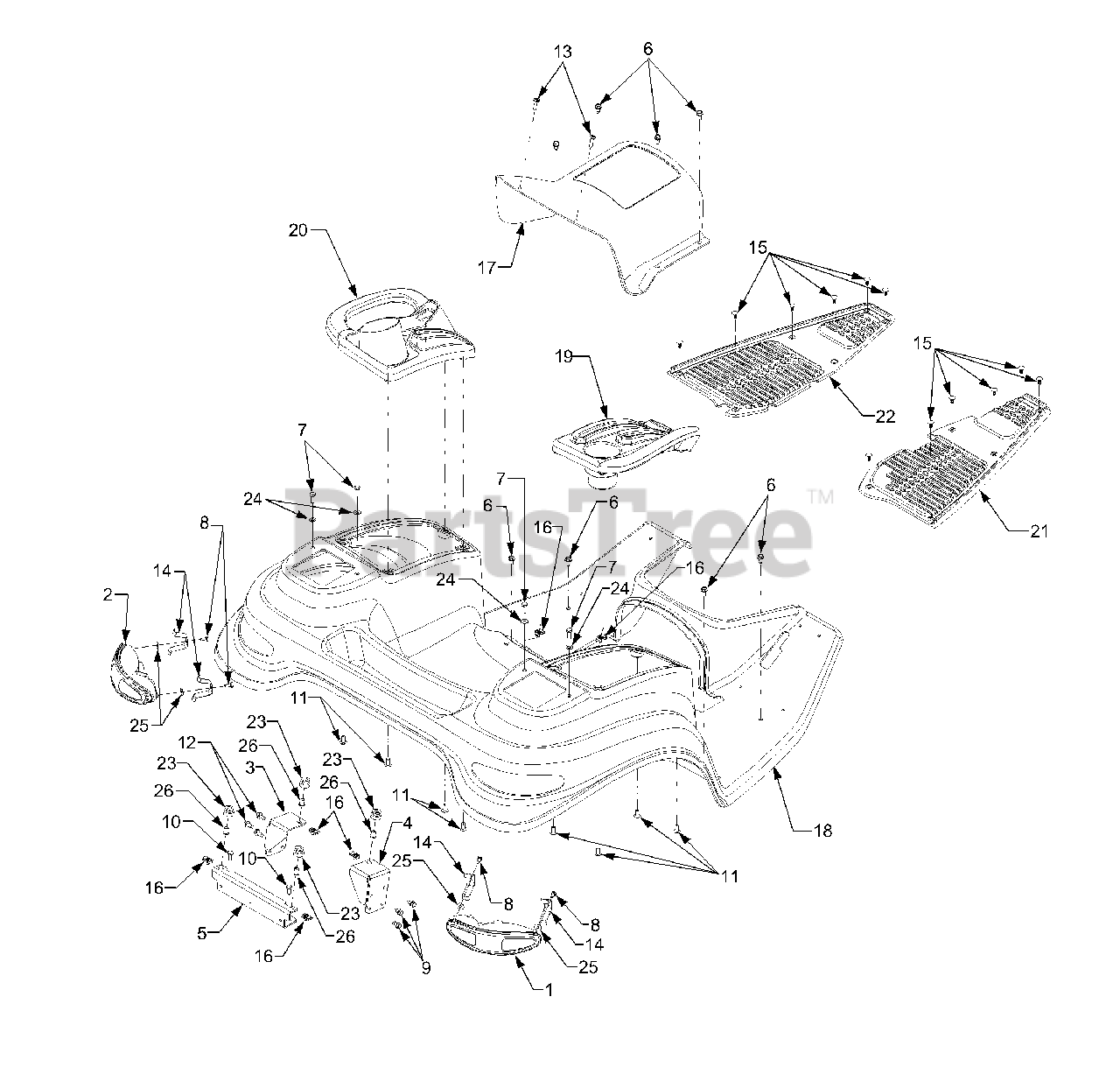

Fender And Running Board Parts Diagram

  • Title

1

Cub Cadet 625-0023B

Light Assembly, Rear RH
(Superseded to 925-0023B)

$131.99

$

In Stock, only 1 left!

0

Cub Cadet 725-3262

Bulb Only, Tail Light
(Superseded to 925-3262)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-3263

Bulb Only, Reverse Indicator Light
(Superseded to 925-3263)

$

$

Not available

Cub Cadet 629-3059

Harness, Tail Light

$

$

Not available

2

Cub Cadet 625-0024B

Light Assembly, Rear RH
(Superseded to 925-0024B)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-3262

Bulb Only, Tail Light
(Superseded to 925-3262)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-3263

Bulb Only, Reverse Indicator Light
(Superseded to 925-3263)

$

$

Not available

Cub Cadet 629-3059

Harness, Tail Light

$

$

Not available

3

Cub Cadet 703-3451

Bracket, Seat Mtg. LH

$

$

Not available

4

Cub Cadet 703-3572

Bracket, Seat Mtg. RH

$

$

Not available

5

Cub Cadet 703-3754

Bracket, Rear Seat Support

$

$

Not available

6

Cub Cadet 710-0604A

Screw, Hex Wash Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3038

Screw, Hex Cap 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet 710-0751

Screw, Hex Cap 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3021

Screw, Hex Wash Hd. Tapp 5/16-18 x .625

$

$

Not available

10

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1242

Screw, Truss Phillips Hd. 5/16-14 x .75

$4.99

$

In Stock, Qty 19

0

12

Cub Cadet 710-1260A

Screw, Hex Wash Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0971

Screw, Pan Hd. 5/16-18 x 1.0

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet 726-3057

Clip, Tail Light
(Superseded to 726-3057A)

$

$

Not available

15

Cub Cadet 726-3046

Clip, Ratchet Fastener

$3.99

$

In Stock, Qty 16

0

16

Cub Cadet 726-0211

Speed Nut, "U" Type, 5/16-18

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 731-3324

Cover, Fender
(Superseded to 731-3324A)

$

$

Not available

Cub Cadet 777S30630

Graphic, Warning

$

$

Not available

18

Cub Cadet 731-3289

Fender

$

$

Not available

Cub Cadet 777S30635

Graphic, Warning

$

$

Not available

Cub Cadet 777D06180

Graphic, Series 7000 PosiTrak

$

$

Not available

19

Cub Cadet 731-04005

Cover, Fender, RH

$

$

Currently unavailable

20

Cub Cadet 731-04006

Cover, Fender, LH

$

$

Currently unavailable

21

Cub Cadet 735-0669

Pad, Floor, RH

$

$

Not available

22

Cub Cadet 735-0670

Pad, Floor, LH

$

$

Not available

23

Cub Cadet 735-0690

Grommet, .4375 ID x .75

$11.99

$

In Stock, only 1 left!

0

24

Cub Cadet 736-3089

Washer, Flat, .345 x 1.0 x .100

$

$

Not available

25

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 750-3310

Spacer, Flange, .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0
