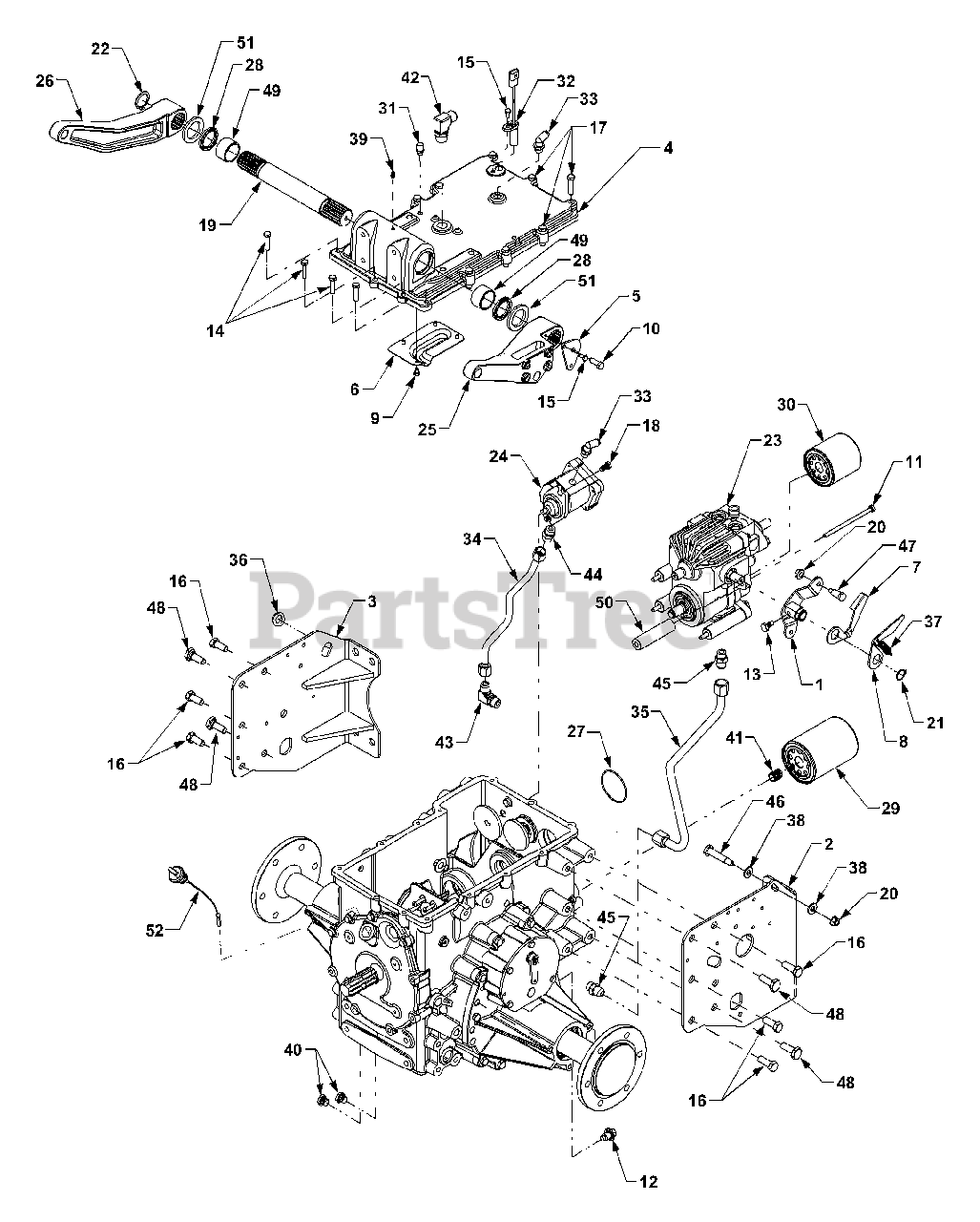

7252 (54AG722-100) - Cub Cadet Compact Tractor Transmission 2WD Parts Diagram

Compact Tractor

Transmission 2WD Parts Diagram

  • Title

Cub Cadet 737-3025

Transmission Oil, 1 Qt.

Note: 6.5 gal

$

$

Not available

Cub Cadet 737-3062

Transmission Oil, 1 Gal.

$

$

Not available

Cub Cadet 737-3035

Transmission Oil, 5 Gal.

$

$

Not available

Cub Cadet 759-3958

Sealant, Loctite (TM) Black, 5.3 oz.

Note: as required

$

$

Not available

1

Cub Cadet 603-0688A

Arm, Hydro Control

$

$

Not available

2

Cub Cadet 603-0712A

Bracket, Transmission Mtg. RH

$

$

Not available

3

Cub Cadet 603-0713A

Bracket, Transmission Mtg. RH
(Superseded to 603-0713A-0637)

Variations

Cub Cadet 603-0713A-0637

BRACKET-LH MOUNTING BLK - POWDER BLACK (0637)

$276.99

$

Usually ships in 3-6 days

0

$276.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 619-3059

Cover, Transmission Housing
(Superseded to 919-3059)

$430.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-3577

Plate, Feedback

$18.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703-3715

Baffle, Oil
(Superseded to 703-3715A)

$

$

Not available

7

Cub Cadet 703-05041

Arm, Neutral RH

$

$

Not available

8

Cub Cadet 703-05042

Arm, Neutral LH

$43.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0294

Screw, Hex Cap, 1/4-20 x .375 GR5

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0591

Screw, Hex Cap Lock, 3.8-24 x 1.0 GR5

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0833

Screw, Hex Cap, 5/16-18 x 5.25 GR5

$9.49

$

In Stock, only 1 left!

0

12

Cub Cadet 710-1633

Screw, Plug, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-1853

Screw, Hex Special Set, 5/16-18 x .625

$

$

Not available

14

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 12

0

15

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3120

Screw, Hex Cap Lock, 3/8-16 x 1.5 GR5

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3262

Screw, Low Hd. Cap, 3/8-16 x .75

$

$

Not available

19

Cub Cadet 711-1355

Shaft, Rock

$

$

Not available

20

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 716-0111

Ring, Retaining

$6.99

$

In Stock, Qty 8

0

22

Cub Cadet 716-0195

Ring, Retaining

$

$

Not available

23

Cub Cadet 717-3507

Pump, Hydrostatic Transmission
(Superseded to 917-3507)

$

$

Not available

24

Cub Cadet 718-3131

Pump, Auxiliary Hydraulic
(Superseded to 918-3131A)

$

$

Not available

25

Cub Cadet 719-3166

Arm, Upper Hitch RH

$85.99

$

In Stock, only 1 left!

0

26

Cub Cadet 719-3167

Arm, Upper Hitch LH

$77.99

$

In Stock, only 1 left!

0

27

Cub Cadet 721-0501

O-Ring, 2.987 ID x .103 Dia

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 721-0510

Seal, Oil, 1.5 x 2.0 x .25

$7.99

$

In Stock, only 1 left!

0

29

Cub Cadet 723-3071

Filter, Oil, Hydraulic System

Note: use with 737-3105 Fitting, Nipple

$68.99

$

In Stock, only 1 left!

0

29

Cub Cadet 723-04032A

Filter, Oil, Reverse Flow style

Note: Not shown, use with 619-04163, Refer to Service Advisory CC-566

$

$

Not available

29

Cub Cadet 619-04163

Housing, Reverse Flow
(Superseded to 919-04163)

Note: Not shown, use with 723-04032A, Refer to Service Advisory CC-566

$

$

Not available

30

Cub Cadet 723-3014

Filter, Oil - Hydro Pump
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

31

Cub Cadet 723-3021

Breather, Transmission

$23.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 725-3272

Sensor, RPM

$

$

Currently unavailable

33

Cub Cadet 727-3012

Fitting, 90 degrees

$26.99

$

In Stock, only 4 left!

0

34

Cub Cadet 727-3176

Tube, Auxiliary Pump Suction

$

$

Not available

35

Cub Cadet 727-3181

Tube, Hydro Suction

$

$

Not available

36

Cub Cadet 731-04018

Grommet

$

$

Not available

37

Cub Cadet 732-1162

Spring, Extension

$8.99

$

In Stock, only 3 left!

0

38

Cub Cadet 736-3052

Washer, Flat, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 737-0146

Fitting, Grease

$5.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 737-0349

Plug, Fitting

$21.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 737-3105

Fitting, Filter Nipple

$

$

Not available

42

Cub Cadet 737-3108

Fitting, 90 degrees

$

$

Not available

43

Cub Cadet 737-3111

Fitting, 90 degrees

$

$

Not available

44

Cub Cadet 737-3112

Fitting, Straight

$

$

Not available

45

Cub Cadet 737-3113

Fitting, Straight

$

$

Not available

46

Cub Cadet 738-0108

Screw, Shoulder, .498 Dia x 1.45
(Superseded to 938-0108)

$6.99

$

In Stock, Qty 6

0

47

Cub Cadet 738-0430

Screw, Shoulder, .50 Dia x .685

$11.99

$

In Stock, only 2 left!

0

48

Cub Cadet 738-04001

Screw, Shoulder, .625 x .18: 1/2-13

$

$

Not available

49

Cub Cadet 741-1110

Bearing, Sleeve, 1.52 x 1.75 x 1.0

$8.49

$

In Stock, only 1 left!

0

50

Cub Cadet 750-1208

Spacer, .40 x 1.0 x 3.9

$

$

Not available

51

Cub Cadet 750-1239

Spacer, 1.52 x 2.25 x .188

$2.99

$

In Stock, only 1 left!

0

52

Cub Cadet 737-04018

Dipstick

$

$

Not available
