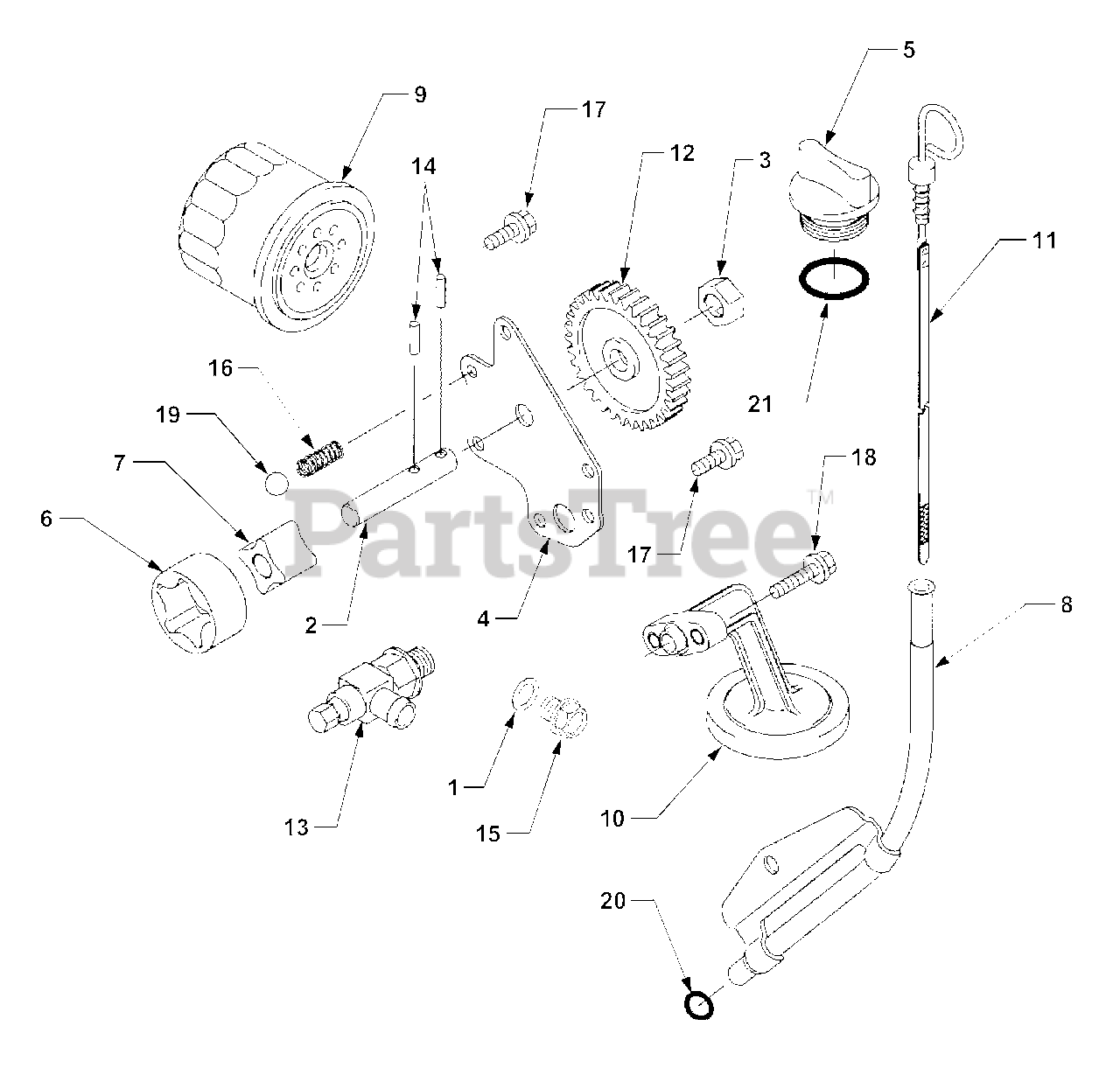

7252 (54AG722-100) - Cub Cadet Compact Tractor Lubrication Parts Diagram

Compact Tractor

Lubrication Parts Diagram

  • Title

1

Cub Cadet KM-11009-2566

Gasket, Drain Plug

$0.99

$

In Stock, Qty 8

0

2

Cub Cadet KM-13107-2281

Shaft, Oil Pump

$11.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13280-2061

Holder, Oil Pump

$6.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-14091-2065

Cover, Oil Pump

$9.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-16115-2126

Cap, Oil Filler
(Superseded to KM-16115-7001)

$2.99

$

In Stock, only 4 left!

0

6

Cub Cadet KM-16154-1075

Rotor, Pump Outer

$22.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-16154-1076

Rotor, Pump Inner

$22.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-32153-20769H

Pipe, Oil Gauge

$

$

Not available

9

Cub Cadet KM-49065-2078

Filter, Oil
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-49065-2082

Filter, Oil Suction

$30.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-52005-2132

Gauge, Oil

$26.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-59051-2354

Gear, Spur, 33T

$21.99

$

In Stock, only 3 left!

0

13

Cub Cadet KM-99969-1395

Drain, Oil

$20.99

$

In Stock, only 1 left!

0

14

Cub Cadet KM-92042-014

Pin

$0.99

$

In Stock, Qty 12

0

15

Cub Cadet KM-92066-2099

Plug, Drain

$15.99

$

In Stock, only 2 left!

0

16

Cub Cadet KM-92144-2053

Spring
(Superseded to KM-92145-2132)

$0.99

$

In Stock, only 1 left!

0

17

Cub Cadet KM-130G0616

Bolt, Flanged
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

18

Cub Cadet KM-130G0625

Bolt, Flanged
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-600A1300

Ball, Steel

$0.99

$

In Stock, Qty 14

0

20

Cub Cadet KM-670B2010

O-Ring

$1.99

$

In Stock, Qty 10

0

21

Cub Cadet KM-670B3025

O-Ring

$1.49

$

In Stock, only 1 left!

0
