72519 - Toro 52" GrandStand Stand-On Mower (SN: 414265249 - 414348544) Engine Assembly Parts Diagram

52" GrandStand Stand-On Mower

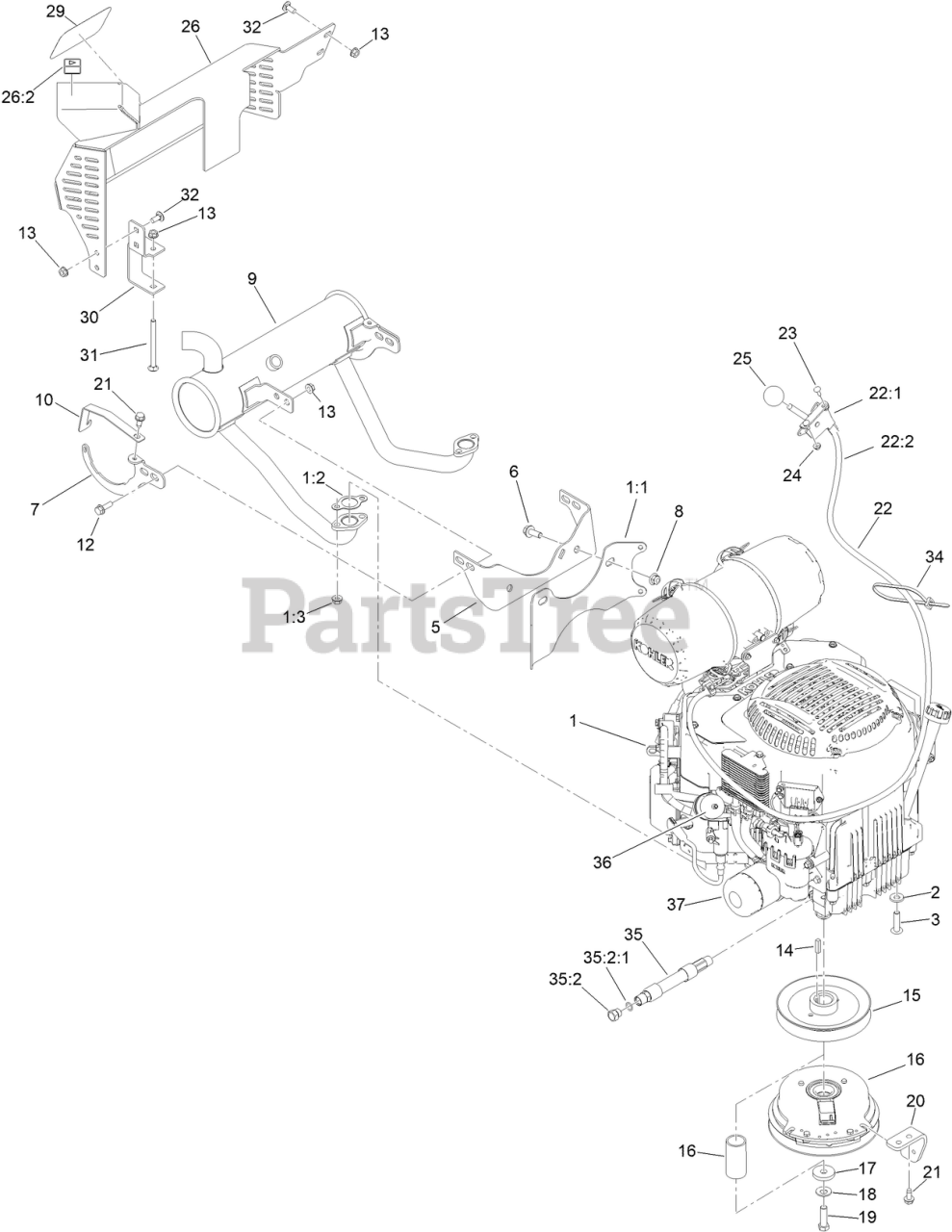

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, ECV740

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

ENGINE-KOHLER, ECV740

Note: Not serviced separately

$

$

Not available

1:1

Toro 131-7400

BRACKET-MUFFLER

$135.99

$

Usually ships in 3-6 days

0

1:2

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

1:3

Toro 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 2 left!

0

2

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

5

Toro 132-1168

BRACKET-MUFFLER

$41.99

$

Usually ships in 3-6 days

0

6

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

7

Toro 133-4613

SUPPORT-MUFFLER

$15.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 133-4634

MUFFLER-KOHLER

$224.99

$

Usually ships in 3-6 days

0

10

Toro 133-4639

BRACKET-MUFFLER, KOH

$9.99

$

Usually ships in 3-6 days

0

12

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

13

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

14

Toro 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

15

Toro 120-8498

PULLEY

$86.99

$

In Stock, only 3 left!

0

16

Toro 139-7910

CLUTCH-200CMS

$678.99

$

In Stock, only 1 left!

0

17

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 5

0

18

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

19

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

20

Toro 131-3586-03

STOP-CLUTCH

$20.99

$

In Stock, only 1 left!

0

21

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 132-5152

THROTTLE ASM

$

$

Not available

22:1

Toro 110-5547

LEVER-CONTROL

$40.99

$

In Stock, only 1 left!

0

22:2

Toro 132-5141

CABLE - THROTTLE

$

$

Not available

23

Toro 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

25

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 7

0

26

Toro 131-3550

MUFFLER GUARD ASM

$276.99

$

Usually ships in 3-6 days

0

26:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

29

Toro 94-2579

DECAL

$12.99

$

Usually ships in 3-6 days

0

30

Toro 131-3530-03

BRACKET-MOUNTING, GUARD

$20.99

$

Usually ships in 3-6 days

0

31

Toro 106-9758

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

32

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

34

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

35

Toro 133-4657

HOSE ASM

$38.99

$

Usually ships in 3-6 days

0

35:2

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

35:2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

36

Toro 94-9695

FILTER-FUEL

$16.99

$

In Stock, Qty 5

0

37

Toro 98020

FILTER-OIL

$13.99

$

In Stock, Qty 20+
