72514 - Toro 60" GrandStand HDX Stand-On Mower (SN: 400000000 - 414499999) Engine Assembly Parts Diagram

60" GrandStand HDX Stand-On Mower

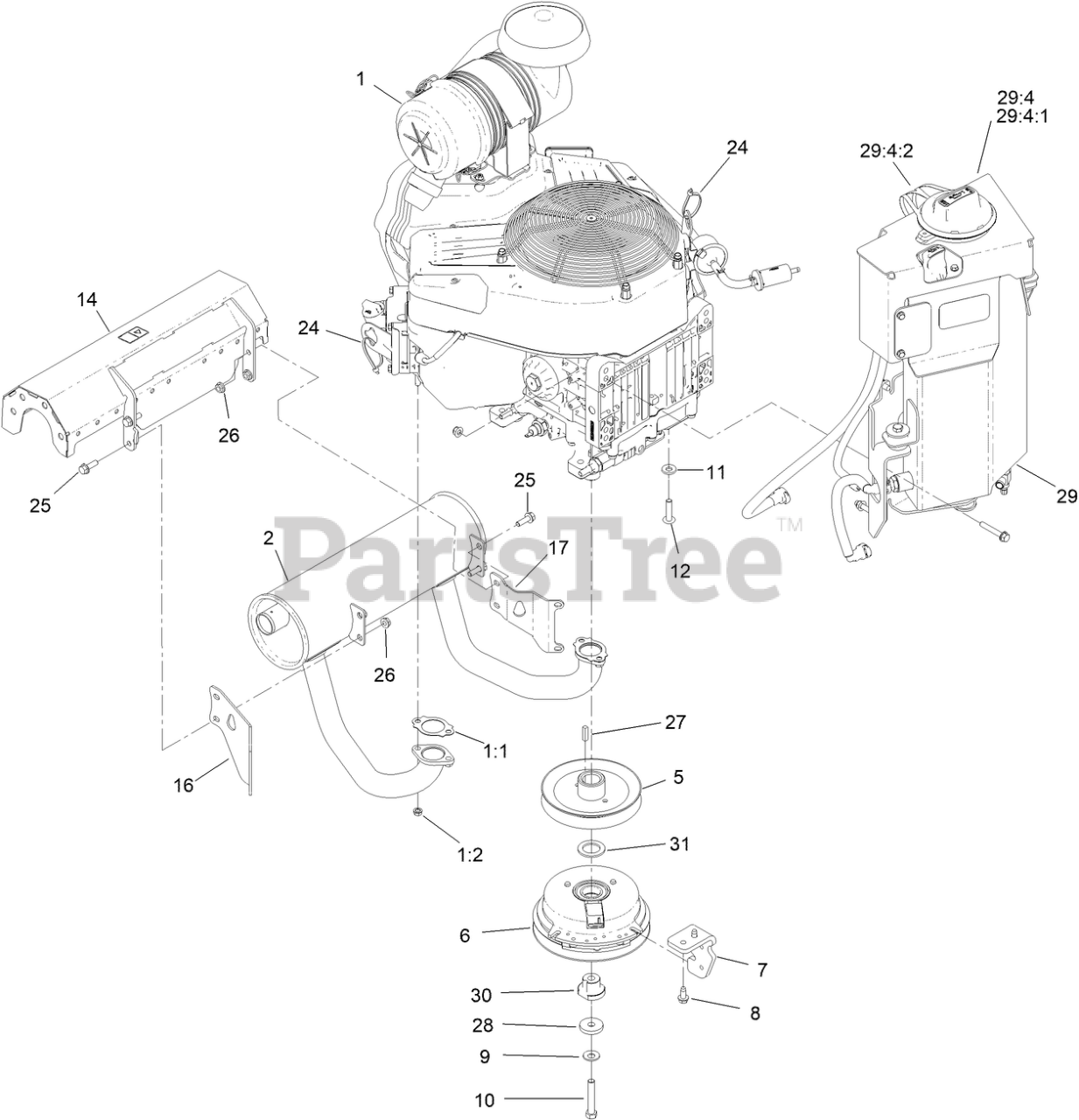

Engine Assembly Parts Diagram

  • Title

1

ENGINE VANGUARD EFI

Note: Not serviced separately

$

$

Not available

1

ENGINE VANGUARD EFI

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1:1

Toro 142-6842

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

1:2

Toro 142-6843

NUT-HEX

$4.49

$

Usually ships in 3-6 days

0

2

Toro 145-6193

MUFFLER, BASCO 37HP

$240.99

$

Usually ships in 0 days

0

5

Toro 145-6115

PULLEY

$

$

Currently unavailable

6

Toro 139-7910

CLUTCH-200CMS

$678.99

$

In Stock, only 1 left!

0

7

Toro 147-0345-03

BRACKET, CLUTCH STOP

$15.99

$

Usually ships in 0 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

10

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

11

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

14

Toro 147-4831

MUFFLER GUARD ASM

$268.99

$

Usually ships in 0 days

0

16

Toro 147-3499

BRACKET-MUFFLER

$11.99

$

Usually ships in 0 days

0

17

Toro 147-4750

BRACKET-MUFFLER

$16.99

$

Usually ships in 0 days

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

28

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 5

0

29

OIL GUARD ASM

Note: Not serviced separately

$

$

Not available

29:4

RESERVOIR-OIL

Note: Not serviced separately

$

$

Not available

29:4:1

Toro 142-7452

OIL DIPSTICK ASM

$23.99

$

Usually ships in 3-6 days

0

29:4:2

Toro 142-7453

OIL TANK CAP ASM

$30.99

$

Usually ships in 3-6 days

0

30

Toro 147-4838

SPACER, D-DRIVE

$5.99

$

Usually ships in 0 days

0

31

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

99

Toro 145-8479

KIT-ENGINE MAINT B/S VANGUARD

Note: Not illustrated

$

$

Currently unavailable

99:1

Toro 142-7451

FILTER-FUEL

Note: Not illustrated

$10.99

$

Usually ships in 3-6 days

0

99:2

Toro 142-6841

FILTER-OIL

Note: Not illustrated

$39.99

$

In Stock, only 2 left!

0

99:3

Toro 142-8433

FILTER, OUTER AIR

Note: Not illustrated

$45.99

$

Usually ships in 3-6 days

0

99:4

Toro 142-8434

FILTER, INNER AIR

Note: Not illustrated

$47.99

$

Usually ships in 3-6 days

0

99:5

Toro 142-8435

PLUG, SPARK

Note: Not illustrated

$8.99

$

Usually ships in 3-6 days

0

99:6

Toro 144-1029

OIL, 10W-50 SYN, QT, TORO

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0
