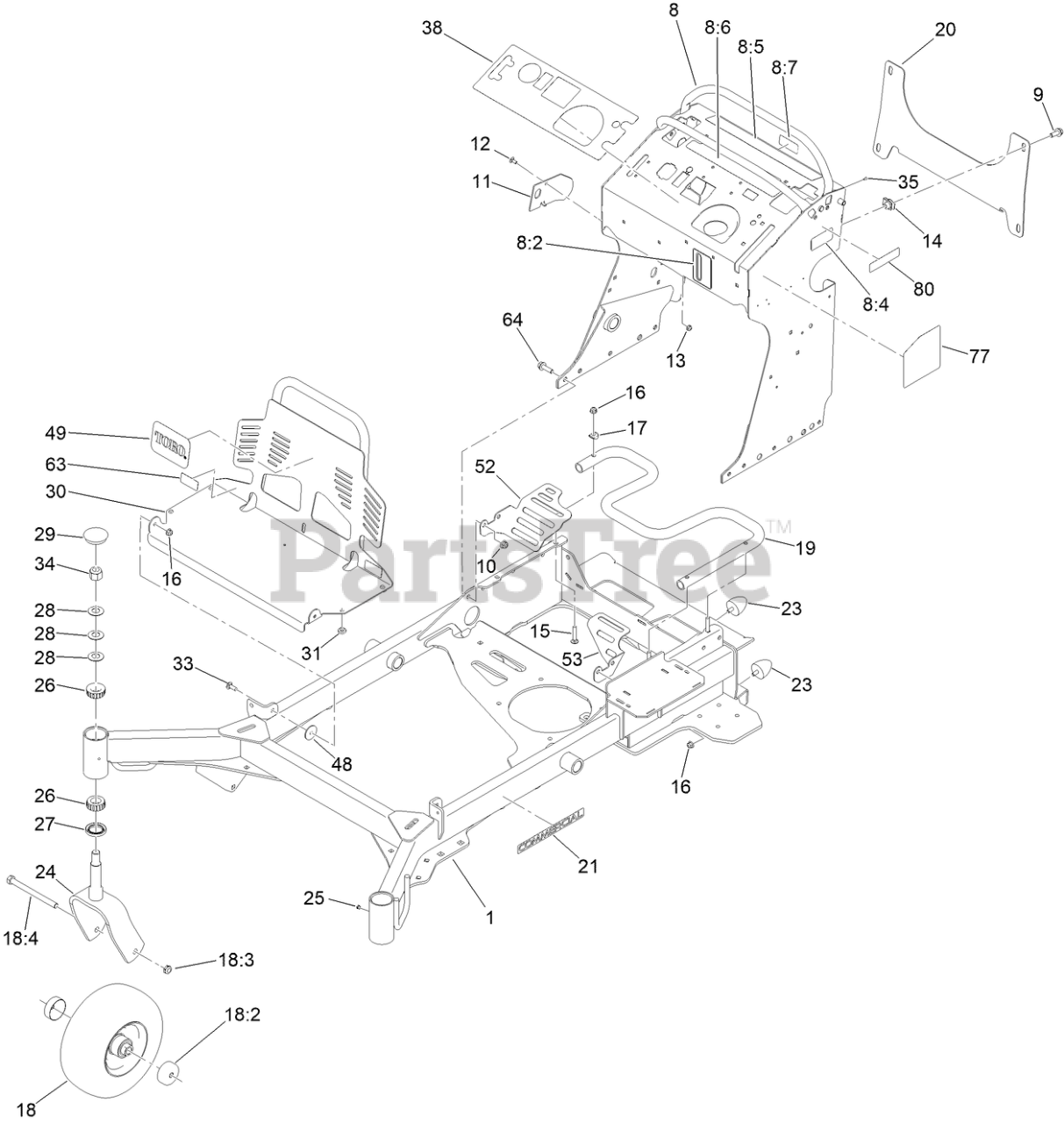

72509 - Toro 60" GrandStand Stand-On Mower (SN: 413000000 - 414169288) Frame Assembly Parts Diagram

60" GrandStand Stand-On Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 131-7431-01

FRAME

$1660.99

$

Usually ships in 3-6 days

0

8

Toro 140-4283

TOWER DECAL ASM

$888.99

$

Usually ships in 3-6 days

0

8:2

Toro 131-3524

DECAL-LEVEL, OIL

$

$

Not available

8:4

Toro 116-8775

DECAL-FILL, FUEL

$8.99

$

Usually ships in 3-6 days

0

8:5

Toro 139-2878

DECAL-WARNING

$7.99

$

Usually ships in 3-6 days

0

8:6

Toro 131-3526

DECAL-CONTROLS

$11.99

$

Usually ships in 3-6 days

0

8:7

Toro 131-3528

DECAL-FUSE

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 131-7455

PLATE-STRIKER

$14.99

$

Usually ships in 3-6 days

0

12

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

15

Toro 3230-5

BOLT-CAR

$0.99

$

Usually ships in 3-6 days

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 19

0

18

Toro 140-5485

MF WHEEL TIRE BEARING ASM

$209.99

$

Usually ships in 3-6 days

0

18:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

18:3

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

18:4

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

19

Toro 132-5161-01

TUBE-MOUNT, FUEL TANK

$68.99

$

Usually ships in 3-6 days

0

20

Toro 132-1145-03

BRACKET-CROSS

$50.99

$

Usually ships in 3-6 days

0

21

Toro 117-3591

DECAL-COMMERCIAL

$15.99

$

In Stock, only 2 left!

0

23

Toro 114-1926

BUMPER-RUBBER

$28.99

$

In Stock, Qty 10

0

24

Toro 121-7988-01

FORK-CASTER

$201.99

$

In Stock, Qty 5

0

25

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

26

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

27

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

28

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

29

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

30

Toro 132-5150-03

GUARD-ENGINE

$209.99

$

Usually ships in 3-6 days

0

31

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

33

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

34

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

35

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

38

Toro 140-4258

DECAL-PANEL, CONTROL

$38.99

$

Usually ships in 3-6 days

0

48

Toro 107-3002

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

0

49

Toro 105-8278

DECAL

$10.99

$

In Stock, only 2 left!

0

52

Toro 132-7578-01

GUARD-FAN, RH

$36.99

$

Usually ships in 3-6 days

0

53

Toro 132-7598-01

GUARD-FAN, LH

$25.99

$

Usually ships in 3-6 days

0

63

Toro 133-4641

DECAL-WARNING, NO RIDERS

$2.49

$

Usually ships in 3-6 days

0

64

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

77

Toro 131-3529

DECAL-SERVICE AID

$9.99

$

Usually ships in 3-6 days

0

80

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days
