72506 - Toro 52" GrandStand HDX Stand-On Mower (SN: 414500000 - 416325750) 52 Inch Deck Assembly Parts Diagram

52" GrandStand HDX Stand-On Mower

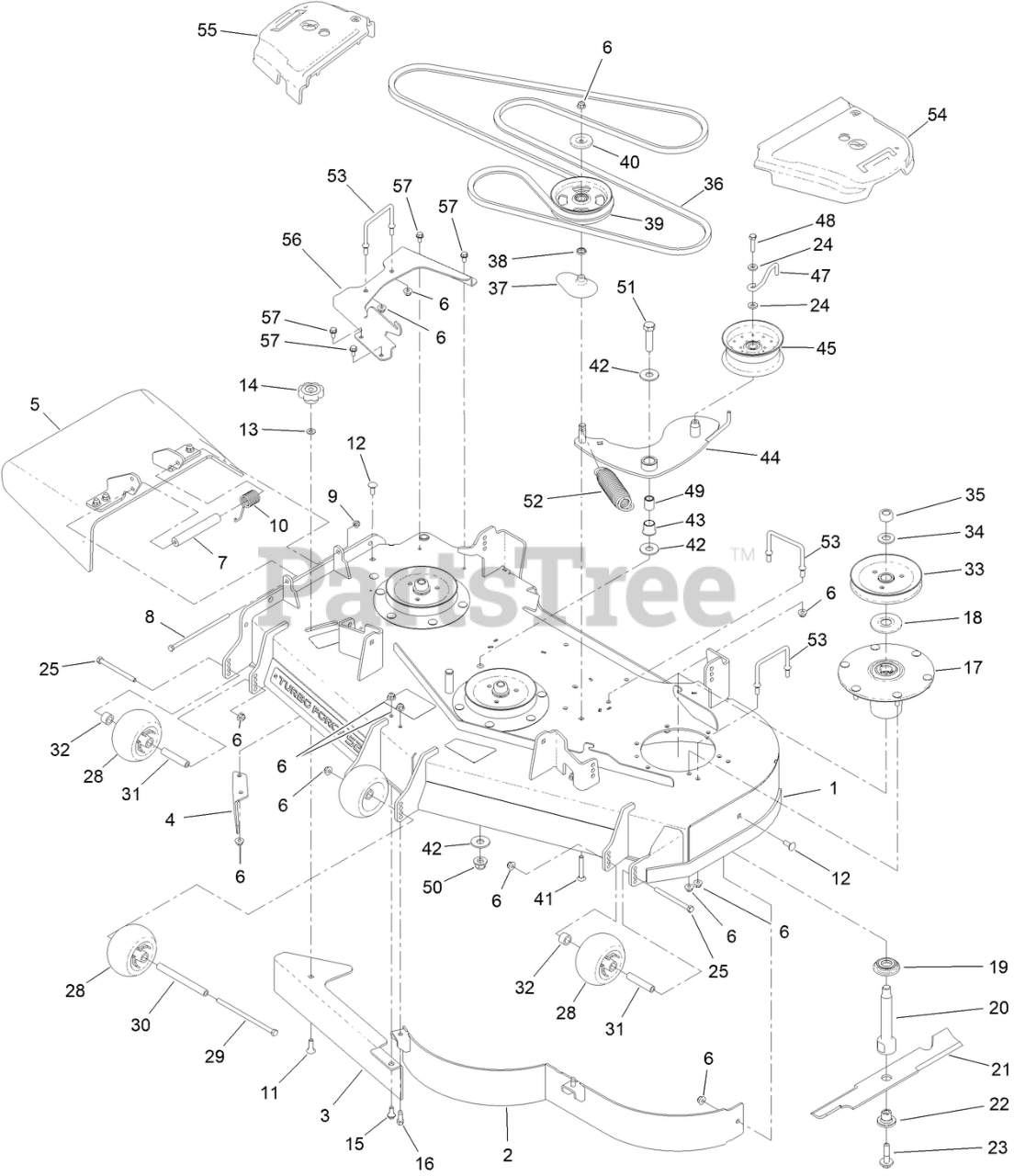

52 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 145-1562

52 DECK ASM W/DECALS

$

$

Currently unavailable

2

Toro 114-1979-01

BAFFLE-52 INCH

$288.99

$

Usually ships in 3-6 days

0

3

Toro 139-8105-01

PLATE-BAFFLE, FORMED [RED]

$84.99

$

Usually ships in 3-6 days

0

4

Toro 106-3216-01

BAFFLE-DISCHARGE

$26.99

$

In Stock, only 2 left!

0

5

Toro 144-2635

RUBBER DEFLECTOR ASM

$175.99

$

Usually ships in 3-6 days

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 105-4622

SPACER

$11.99

$

In Stock, only 4 left!

0

8

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 12

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 108-4052

SPRING-TORSION

$26.99

$

In Stock, Qty 5

0

11

Toro 119-4162

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

13

Toro 100-4852

WASHER-HARDENED

$5.99

$

Usually ships in 3-6 days

0

14

Toro 109-1092

KNOB

$8.99

$

Usually ships in 3-6 days

0

15

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 11

0

16

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

17

Toro 137-9780

SPINDLE ASM

$156.99

$

In Stock, Qty 10

0

18

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 12

0

19

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, Qty 12

0

20

138-6045

SHAFT-SPINDLE

$

$

Not available

21

Toro 140-1242

BLADE-FLOW, HIGH

$29.99

$

In Stock, only 4 left!

0

22

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

23

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

24

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 6

0

25

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

28

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

29

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

30

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

31

Toro 133-2129

TUBE-SHAFTING

$15.99

$

In Stock, only 2 left!

0

32

Toro 133-2128

TUBE-SPACER

$18.99

$

In Stock, only 2 left!

0

33

Toro 138-6061

SHEAVE-BLADE, DRIVE

$33.99

$

In Stock, only 2 left!

0

34

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

35

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

36

Toro 135-4711

BELT, 5V

$180.99

$

Usually ships in 3-6 days

0

37

Toro 109-2872

SPACER-PULLEY

$23.99

$

In Stock, Qty 20+

0

38

Toro 107-4293

SPACER-PLATE, BBC

$13.99

$

In Stock, only 2 left!

0

39

Toro 136-5405

PULLEY-IDLER,FLAT
(Superseded to 136-5405)

$51.99

$

In Stock, Qty 9

0

40

Toro 132-5153

SHIELD-DUST

$25.99

$

Usually ships in 3-6 days

0

41

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

42

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

43

Toro 135-1248

BUSHING, IGUS

$5.49

$

Usually ships in 3-6 days

0

44

Toro 161-5151-03

IDLER ARM ASM [BLACK]

$182.99

$

Usually ships in 0 days

0

45

Toro 116-4666

IDLER-PULLEY, FLAT

$71.99

$

In Stock, Qty 20+

0

47

Toro 147-4644

WIREFORM BELT GUIDE,IDLER, TOP

$7.99

$

Usually ships in 0 days

0

48

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

49

Toro 147-7797

BUSHING-IDLER PIVOT

$

$

Not available

50

Toro 133-9681

NUT-HF

$4.99

$

Usually ships in 3-6 days

0

51

Toro 327-7

SCREW-HH

$14.99

$

In Stock, only 1 left!

0

52

Toro 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

53

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 4 left!

0

54

Toro 109-6936

COVER-BELT, LH

$41.99

$

In Stock, Qty 14

0

55

Toro 109-6935

COVER-BELT, RH

$41.99

$

In Stock, Qty 8

0

56

Toro 147-4639-01

PLATFORM-BELT COVER 52

$

$

Currently unavailable

57

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0
