72506 - Toro 52" GrandStand HDX Stand-On Mower (SN: 400000000 - 414499999) Frame Assembly Parts Diagram

52" GrandStand HDX Stand-On Mower

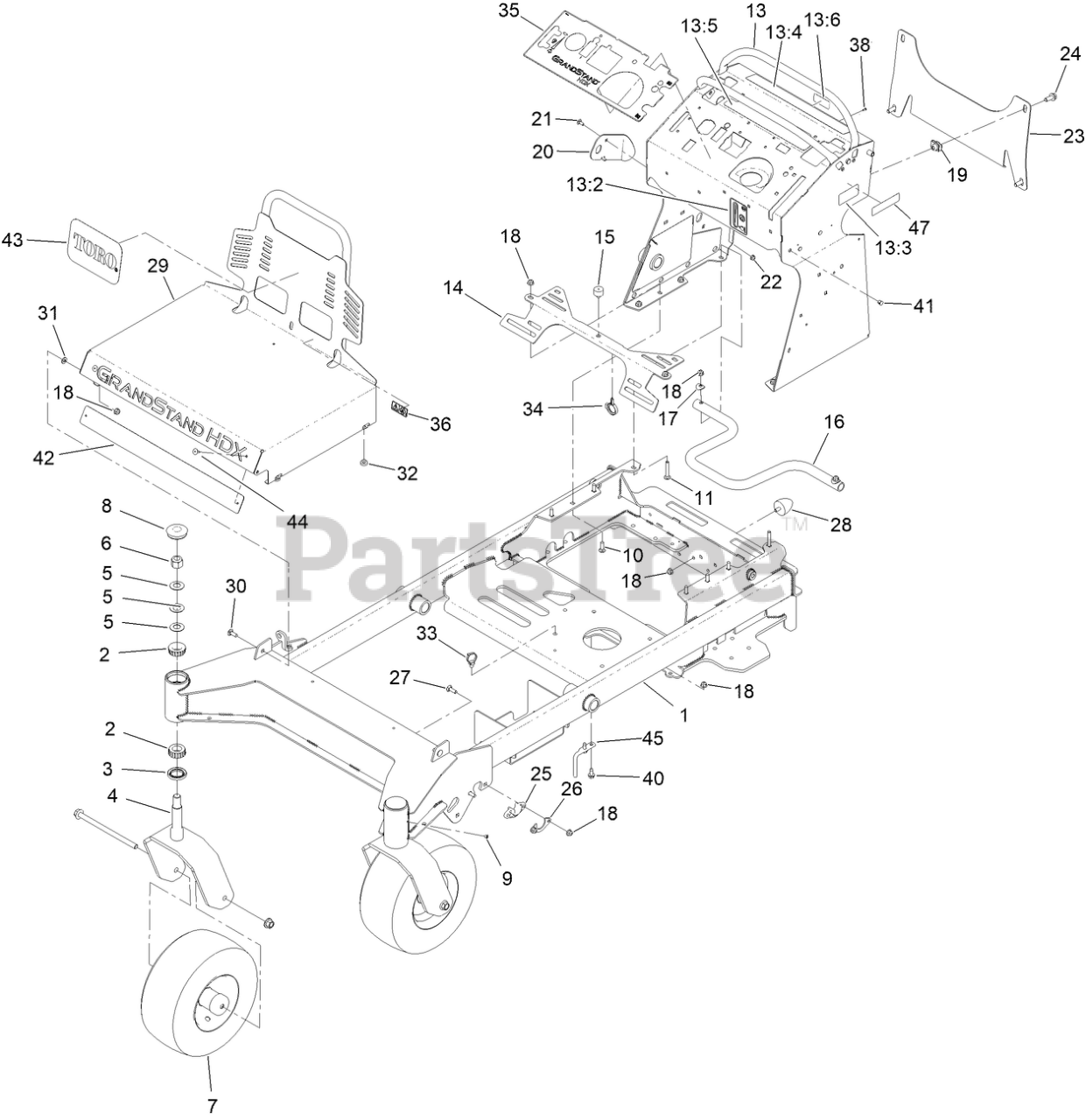

Frame Assembly Parts Diagram

  • Title

1

Toro 147-4594-01

FRAME-52 [RED]

$

$

Currently unavailable

2

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

3

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

4

Toro 142-9968-01

CASTER-FORK [RED]

$178.99

$

Usually ships in 3-6 days

0

5

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

7

Toro 140-4896

ASM-WHEEL BRGS AXLE 13X6.50-6

$259.99

$

Usually ships in 3-6 days

0

8

Toro 144-0375

CAP,GREASE

$3.49

$

In Stock, Qty 11

0

9

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

10

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

11

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

13

Toro 145-5163

TOWER DECAL ASM

$768.99

$

Usually ships in 0 days

0

13:2

Toro 131-3524

DECAL-LEVEL, OIL

$

$

Not available

13:3

Toro 116-8775

DECAL-FILL, FUEL

$8.99

$

Usually ships in 3-6 days

0

13:4

Toro 139-2878

DECAL-WARNING

$7.99

$

Usually ships in 3-6 days

0

13:5

Toro 131-3526

DECAL-CONTROLS

$11.99

$

Usually ships in 3-6 days

0

13:6

Toro 147-0212

DECAL - FUSE

$2.99

$

Usually ships in 0 days

0

14

Toro 147-4769-01

SUPPORT, FUEL TANK

$56.99

$

Usually ships in 0 days

0

14

Toro 161-1306-01

SUPPORT, FUEL TANK

$

$

Currently unavailable

15

Toro 120-7893

BUMPER-GROMMET

$5.49

$

Usually ships in 3-6 days

0

16

Toro 145-1586-01

TUBE-FUEL TANK MOUNT

$91.99

$

Usually ships in 0 days

0

17

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

20

Toro 147-4952

PLATE-STRIKER

$14.99

$

Usually ships in 0 days

0

21

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 147-4771-03

BRACKET-CROSS

$

$

Currently unavailable

24

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

25

Toro 139-5872

BEARING-FLANGE

$1.99

$

Usually ships in 3-6 days

0

26

Toro 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 15

0

27

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

28

Toro 114-1926

BUMPER-RUBBER

$28.99

$

In Stock, Qty 20+

0

29

Toro 147-4620-03

ENGINE GUARD ASM [BLACK]

$283.99

$

Usually ships in 0 days

0

30

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

31

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

32

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

33

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

34

Toro 104-2490

CLAMP-HOSE

$4.99

$

In Stock, only 2 left!

0

35

Toro 147-4764

DECAL-PANEL CONTROL, KAWASAKI

$34.99

$

Usually ships in 0 days

0

36

Toro 133-4641

DECAL-WARNING, NO RIDERS

$2.49

$

Usually ships in 3-6 days

0

38

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

40

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

41

Toro 145-3595

DOME PANEL PLUG

$0.99

$

Usually ships in 3-6 days

0

42

Toro 147-4805-01

PLATE-BACKING

$

$

Currently unavailable

43

Toro 104-7213

DECAL

$31.99

$

Usually ships in 3-6 days

0

44

Toro 3269-20

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

45

Toro 147-4825

GUIDE-BELT

$10.99

$

Usually ships in 0 days

0

47

Toro 142-5864

DECAL-SPARK ARRESTER

$1.99

$

Usually ships in 3-6 days

0
