72504 TE - Toro 122cm GrandStand Stand-On Mower (SN: 412200000 - 414299999) Deck Assembly Parts Diagram

122cm GrandStand Stand-On Mower

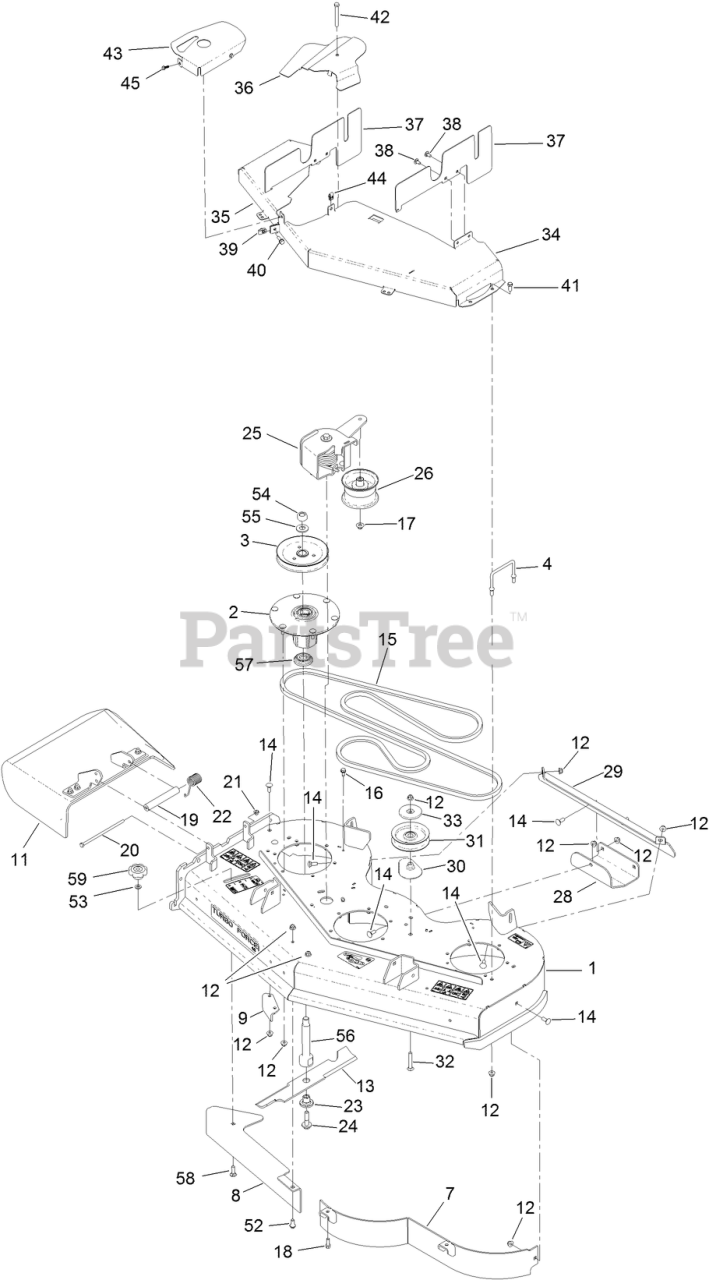

Deck Assembly Parts Diagram

  • Title

1

Toro 139-8093

48 DECK ASM

$1541.99

$

Usually ships in 3-6 days

0

2

Toro 137-9780

SPINDLE ASM

$165.99

$

In Stock, only 2 left!

0

3

Toro 138-6061

SHEAVE-BLADE, DRIVE

$30.99

$

Usually ships in 3-6 days

0

4

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

7

Toro 117-0410-01

48 INCH BAFFLE ASM

$263.99

$

Usually ships in 3-6 days

0

8

Toro 139-8105-01

PLATE-BAFFLE, FORMED [RED]

$78.99

$

Usually ships in 3-6 days

0

9

Toro 107-8541-01

BAFFLE-DISCHARGE

$20.99

$

Usually ships in 3-6 days

0

11

Toro 120-2451

DEFLECTOR ASM

$232.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 140-1243

BLADE-16.50 HIGH FLOW

$33.99

$

In Stock, Qty 6

0

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 131-1121

BELT-V

$151.99

$

In Stock, Qty 7

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, only 4 left!

0

18

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

19

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

20

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

23

Toro 137-9787

BUSHING-HEX

$7.99

$

In Stock, only 3 left!

0

24

Toro 109-9220

SCREW-SEMS

$8.49

$

In Stock, Qty 20+

0

25

Toro 145-3450

GS TORSION IDLER ASM II

$234.99

$

In Stock, only 1 left!

0

26

Toro 127-1971

PULLEY-IDLER

$126.99

$

In Stock, only 3 left!

0

28

Toro 114-1908-01

SKID

$82.99

$

Usually ships in 3-6 days

0

29

Toro 130-6649-01

BRACKET-SKID

$72.99

$

Usually ships in 3-6 days

0

30

Toro 109-2872

SPACER-PULLEY

$22.99

$

Usually ships in 3-6 days

0

31

Toro 132-4718

PULLEY-IDLER, FLAT

$34.99

$

In Stock, only 3 left!

0

32

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 18

0

33

Toro 132-5153

SHIELD-DUST

$23.99

$

Usually ships in 3-6 days

0

34

Toro 136-7422-01

COVER-BELT, LH, CE

$135.99

$

Usually ships in 3-6 days

0

35

Toro 136-7423-01

COVER-BELT, RH CE

$97.99

$

Usually ships in 3-6 days

0

36

Toro 136-7421-01

COVER-IDLER, CE

$86.99

$

Usually ships in 3-6 days

0

37

Toro 133-4642-01

COVER-SIDE, LH (CE)

$

$

Currently unavailable

38

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

39

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

40

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

41

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

42

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

43

Toro 136-7424-01

COVER-IDLER, CE

$79.99

$

Usually ships in 3-6 days

0

44

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

45

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

52

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

53

Toro 100-4852

WASHER-HARDENED

$5.49

$

Usually ships in 3-6 days

0

54

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 11

0

55

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

56

138-6045

SHAFT-SPINDLE

$

$

Not available

57

Toro 137-9784

GUARD-BOTTOM

$5.99

$

In Stock, only 4 left!

0

58

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

59

Toro 109-1092

KNOB

$7.99

$

Usually ships in 3-6 days

0
